4.0 System Installation
User’s Manual Page 4-10
4.6 InstallingMINIPCIeExpansionCard(PCIe3)


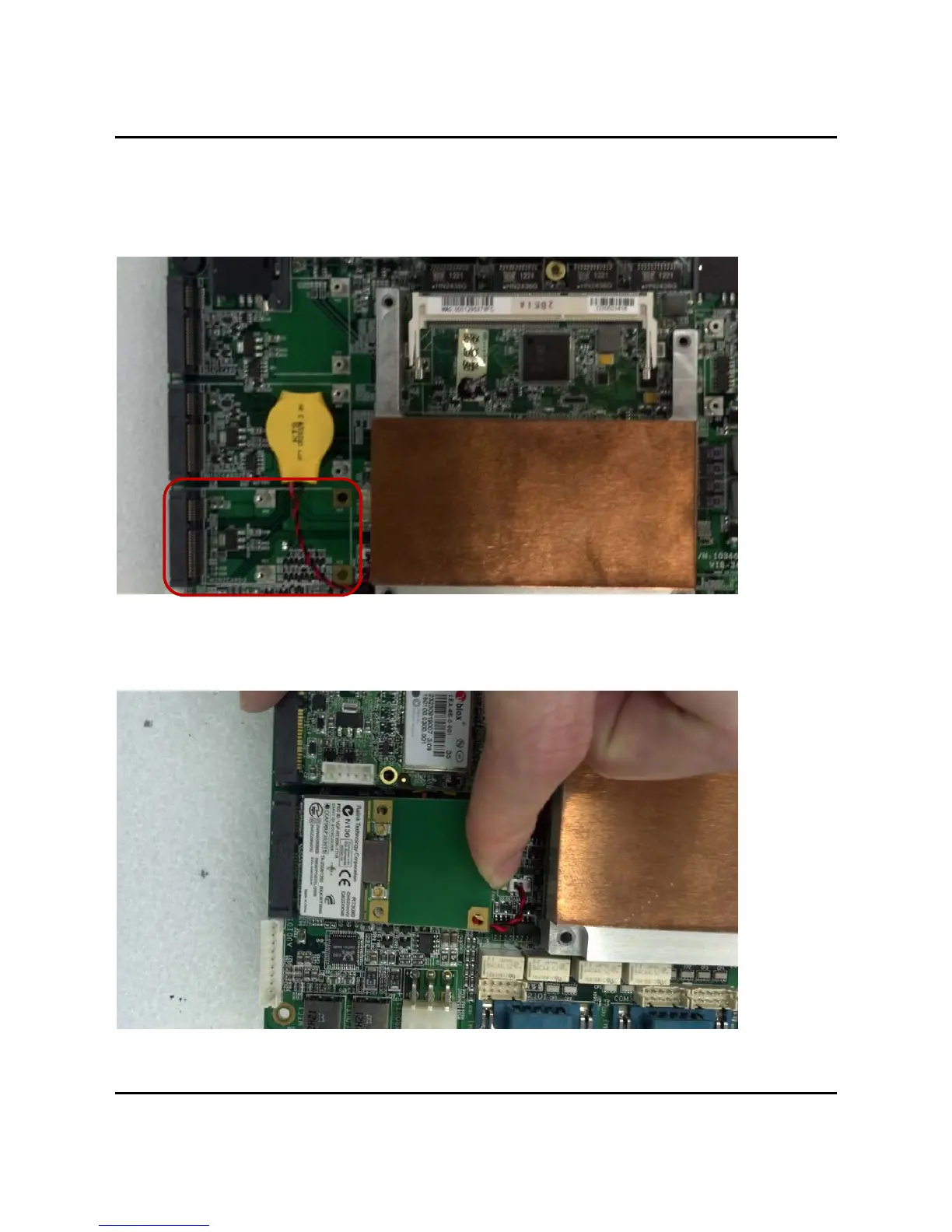

Step1.PutMINIPCIeExpansionCardonthisplaceasshowninthepicture.



Step2.HoldtheModulewithitsnotchalignedwiththesocketoftheboardandinsertit
ata30degreeangleintothesocket
asshowninthepicture.

