Sintrones VBOX-3600 - DB29 Connector (DVI-I)

3.0 External Connector Specification
User’s Manual Page 3-8

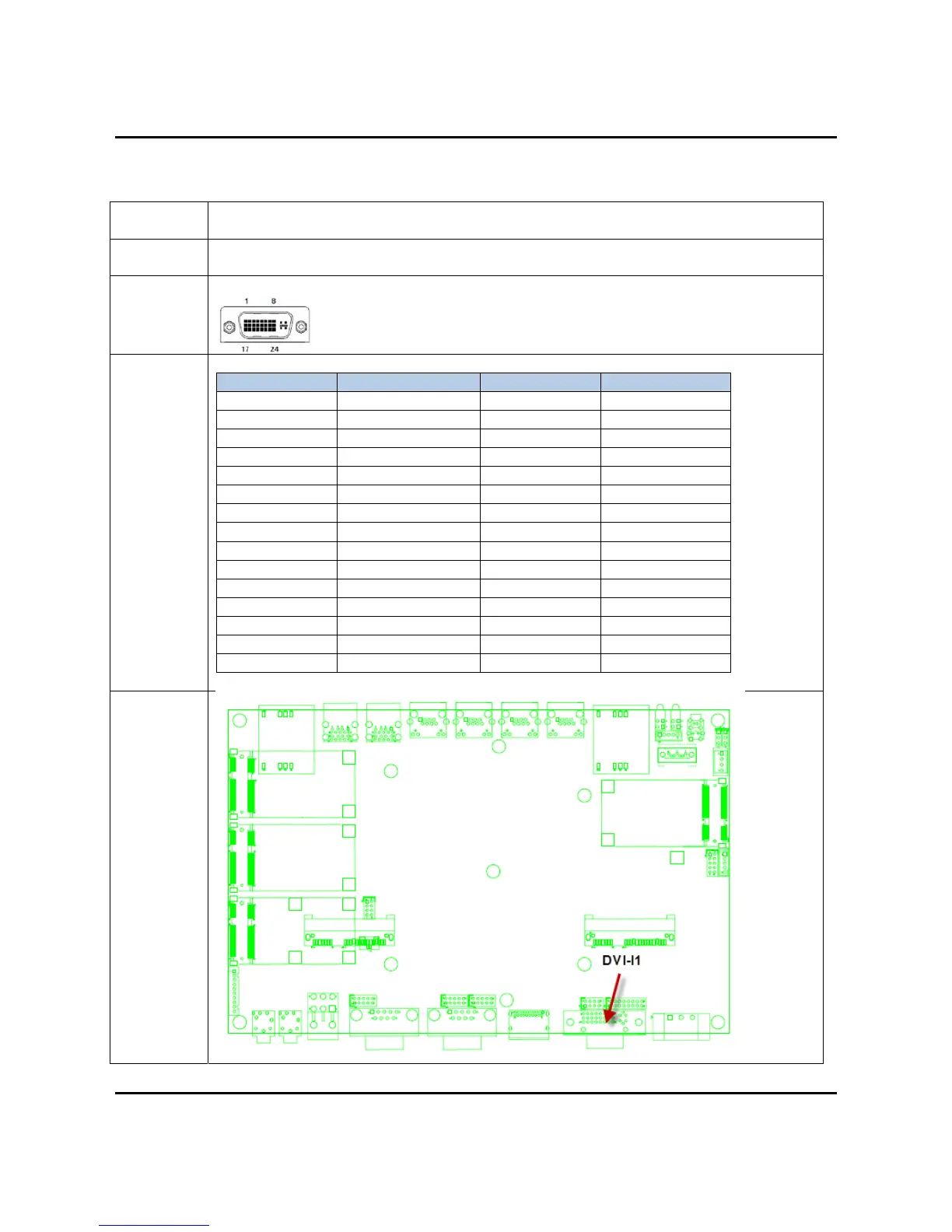

3.8 DB29Connector(DVI‐I)
Connector
size
50 Pin
Connector
type
DVI-I
Connector
location
DVI-I1
Connector
pin
definition
Pin Signal Pin Signal
1 DVI
_
TX2_N 2 DVI
_
TX2_P
3 GND 4 5VSB
5 +12V 6 DVI_DDC_CLK
7 DVI_DDC_DATA 8 CRT_VSYNC
9 DVI
_
TX1_N 10 DVI
_
TX1_P
11 GND 12 USB_7N
13 USB_7P 14 +5V
15 GND 16 DVI
_
HPD
17 DVI
_
TX0_N 18 DVI
_
TX0_P
19 GND 20 CRT_DAC_SDA
21 CRT_DAC_SCL 22 NC
23 DVI
_
CLK_P 24 DVI
_
CLK_N
C1 CRT_RED C2 CRT_GREEN
C3 CRT
_
BLUE C4 CRT
_
HSYNC
C5 CRT
_
DET C6 GND
Connector
map
