Sintrones VBOX-3600 - Power Input Connector

2.0 Internal Connector Specification
User’s Manual Page 2-22

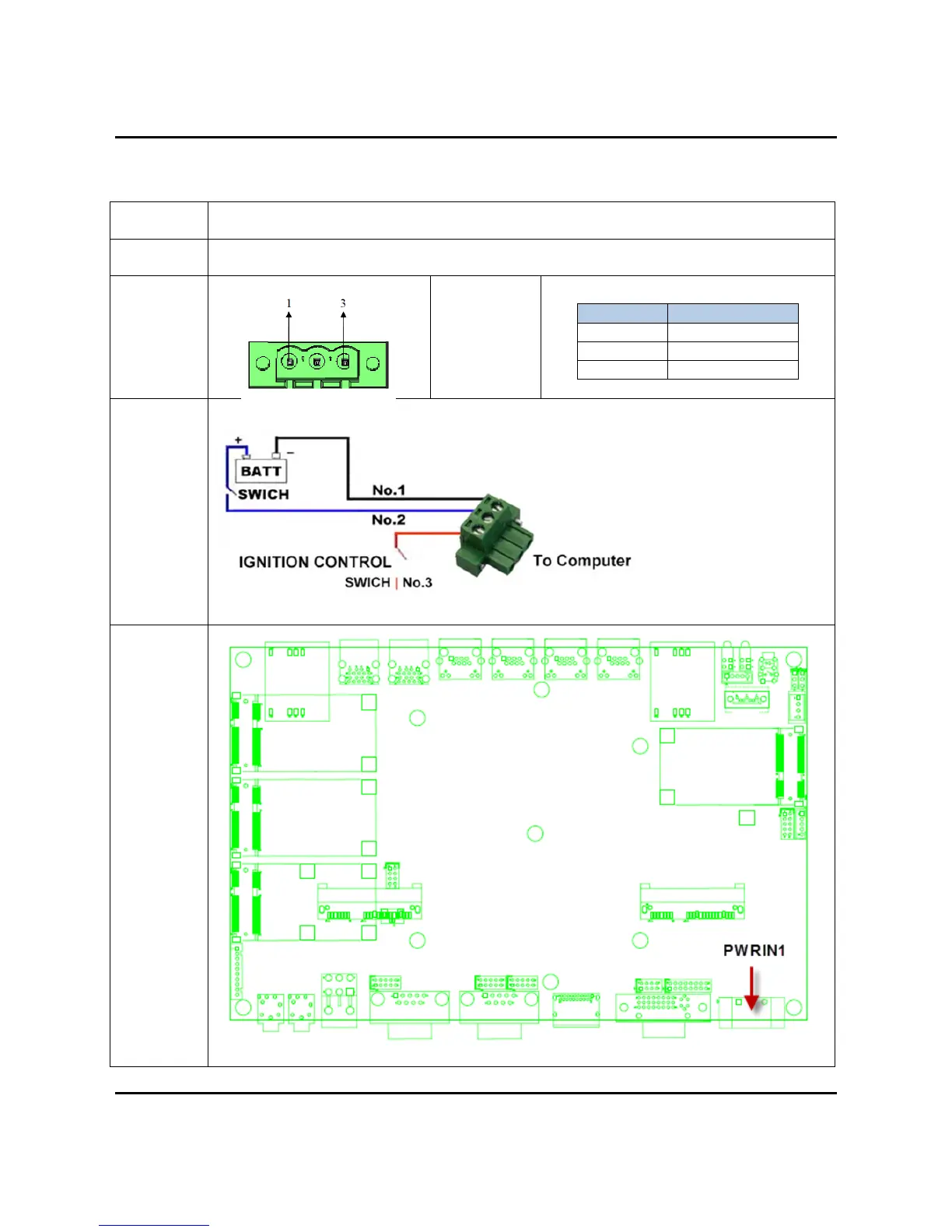

2.18 PowerInputConnector
Connector
size
1 X 4 = 4 Pin
Connector
type
WAFER 2.54mm-M-180
Connector
location
PWRIN1
Connector pin
definition
Pin Signal
1 GND
2 VIN (9-32V)
3 IGNITION
VBOX-
3600’s
Power
Wiring
Diagram



Connector
map
