Sintrones VBOX-3600 - DP Connector

3.0 External Connector Specification
User’s Manual Page 3-9
3.9 DPConnector
Connector
size
20 Pin
Connector
type
Display port
Connector
location
DP1
Connector
pin
definition
Pin Signal Pin Signal
1 DP2_LANE_0P 2 GND
3 DP2_LANE_0N 4 DP2_LANE_1P
5 GND 6 DP2_LANE_1N
7 DP2_LANE_2P 8 GND
9 DP2_LANE_2N 10 DP2_LANE_3P
11 GND 12 DP2_LANE_3N
13 DP2_AUX_EN# 14 GND
15 DP2_AUXP_CLK 16 GND
17 DP2_AUXN_DATA 18 DP2_HPD
19 GND 20 DP2_VCC3

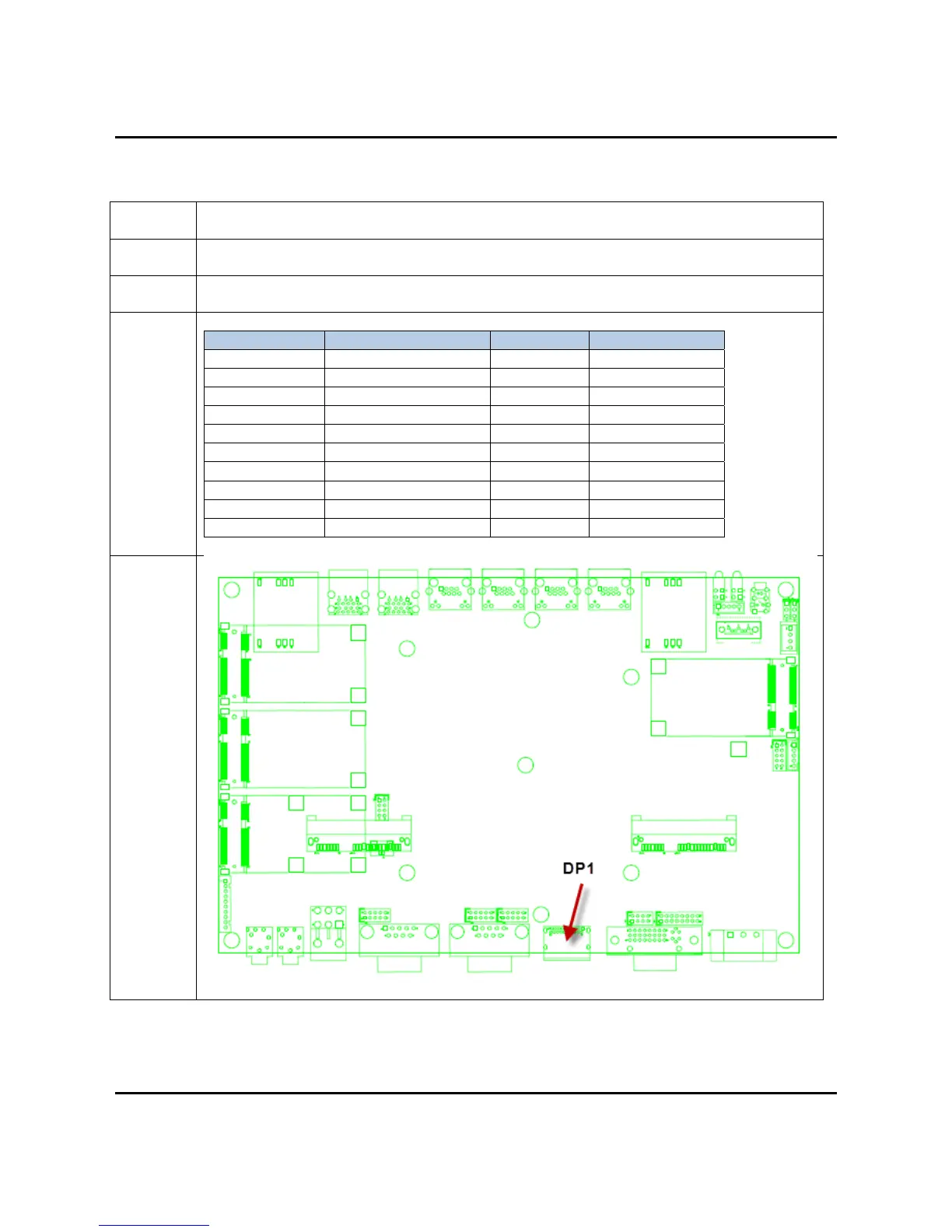

Connector
map
