Sintrones VBOX-3600 - SATA 7 PIN Connector (SATA3)

2.0 Internal Connector Specification
User’s Manual Page 2-11
2.11 SATA7PINConnector(SATA3)
Connector
size
1 X 7 = 7 Pin
Connector
type
SATA 1.27mm-M-180D
Connector
location
SATA DOM1
Connector
pin
definition
Pin Signal
1 GND
2 SATA_TXP2
3 SATA_TXN2
4 GND
5 SATA_RXN2
6 SATA_RXP2
7 GND

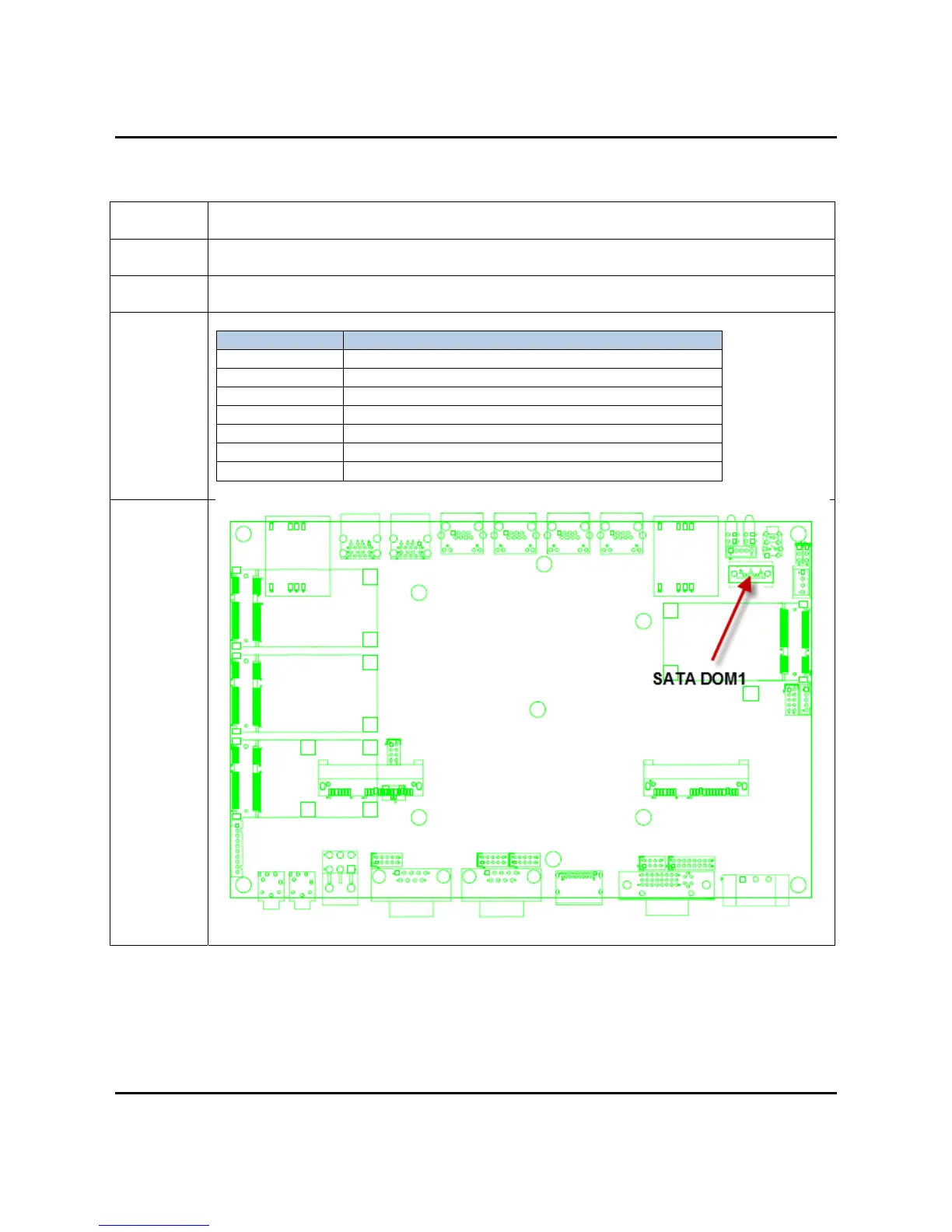

Connector
map
