Sintrones VBOX-3600 - Installing MINI PCIe Expansion Card (PCIe 4, PCIe only)

4.0 System Installation
User’s Manual Page 4-12
4.7 InstallingMINIPCIeExpansionCard(PCIe4,PCIeonly)


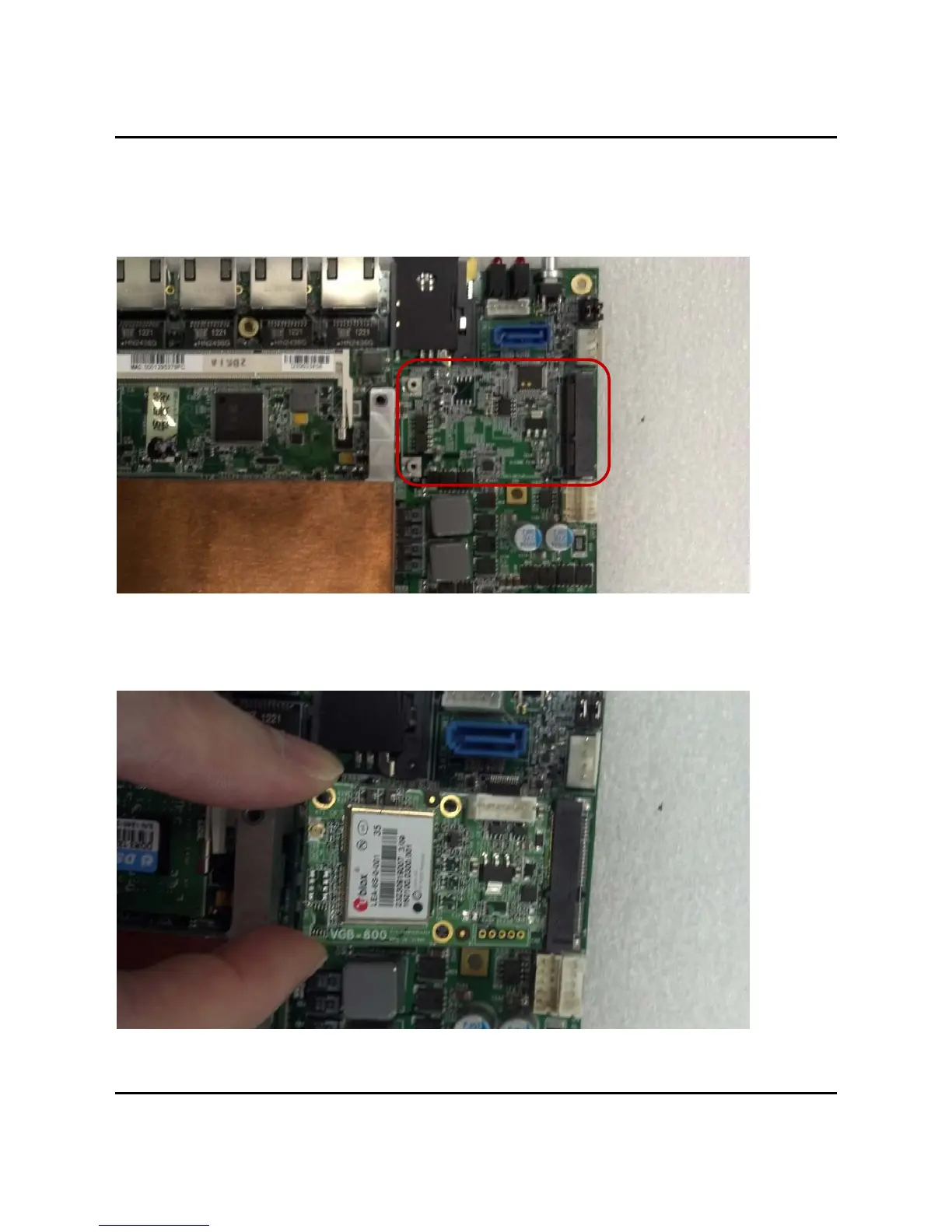

Step1.PutMINIPCIeExpansionCardonthisplaceasshowninthepicture.



Step2.HoldtheModulewithitsnotchalignedwiththesocketofthe
boardandinsertitata30degreeangleinto
thesocketasshowninthepicture.



