Sintrones VBOX-3600 - RJ45 Connector (LAN4)

3.0 External Connector Specification
User’s Manual Page 3-7
3.7 RJ45Connector(LAN4)
Connector
size
12 Pin
Connector
type
RJ45+LED
Connector
location
LAN4
Connector
pin
definition
Pin Signal Pin Signal
1 LAN3
_
MDI0P 2 LAN3
_
MDI0N
3 LAN3
_
MDI1P 4 LAN3
_
MDI2P
5 LAN3
_
MDI2N 6 LAN3
_
MDI1N
7 LAN3
_
MDI3P 8 LAN3
_
MDI3N
9 LAN3
_
ACT# 10 LAN3
_
ACTPW
11 LAN3
_
LINK# 12 LAN3
_
LINKPW

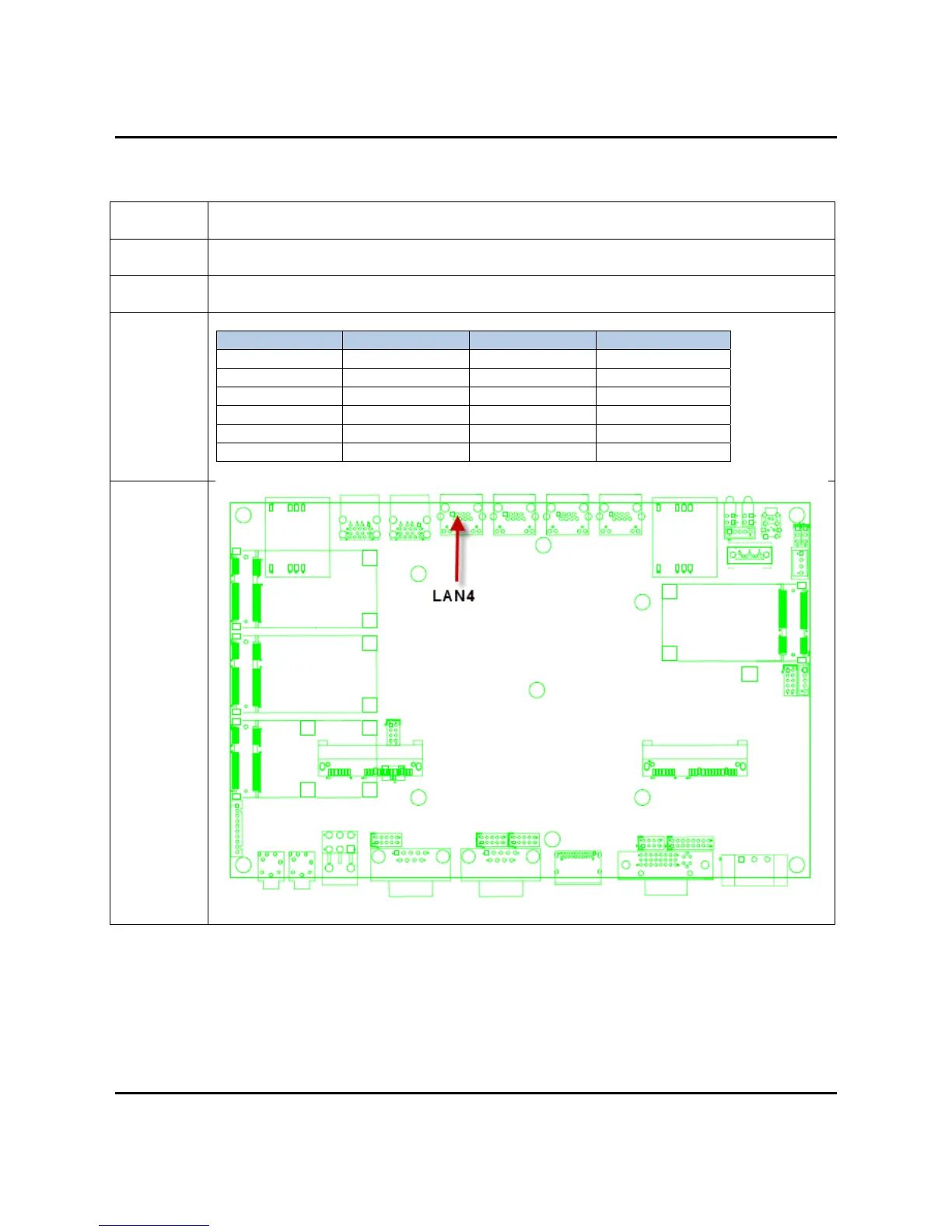

Connector
map
