Sintrones VBOX-3600 - SATA 7 PIN Connector (SATA1)

2.0 Internal Connector Specification
User’s Manual Page 2-12
2.12 SATA7PINConnector(SATA1)
Connector
size
1 X 7 = 7 Pin
Connector
type
SATA 1.27mm-M-180D
Connector
location
SATA1
Connector
pin
definition
Pin Signal Pin Signal
S1 GND P1 NC
S2 SATA_TXP0 P2 NC
S3 SATA_TXN0 P3 NC
S4 GND P4 GND
S5 SATA_RXN0 P5 GND
S6 SATA_RXP0 P6 GND
S7 GND P7 +5V
P8 +5V
P9 +5V
P10 NC
P11 GND
P12 GND
P13 NC
P14 NC
P15 NC

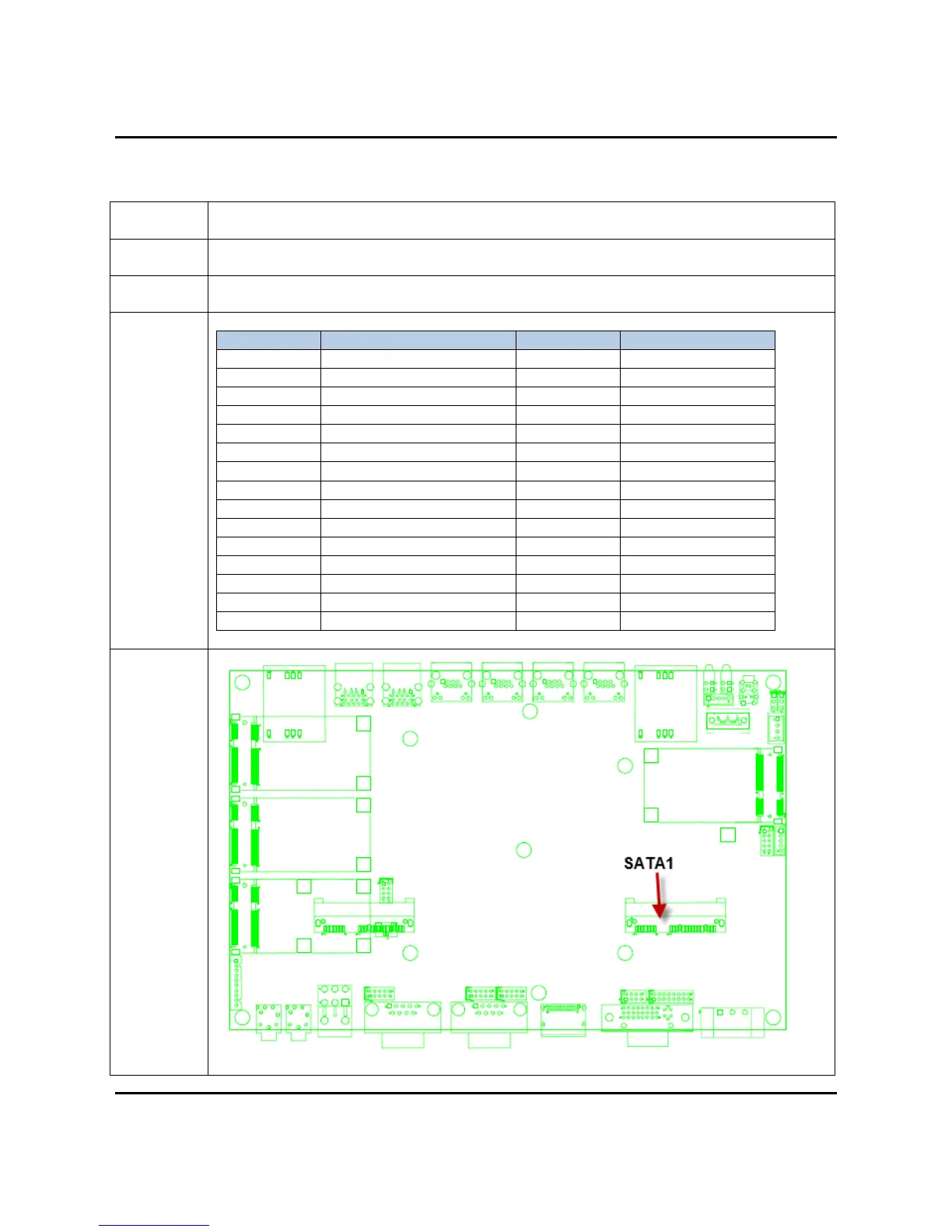

Connector
map
