Sintrones VBOX-3600 - PHONE JACK (MIC IN)

3.0 External Connector Specification
User’s Manual Page 3-12
3.12 PHONEJACK(MICIN)
Connector
size
6 Pin
Connector
type
Phone Jack
Connector
location
MIC1
Connector
pin
definition
Pin Signal Pin Signal
1 MIC_OUT-L 2 MIC-JD
3 NC 4 MIC_OUT-
R
5 GND 6 GND

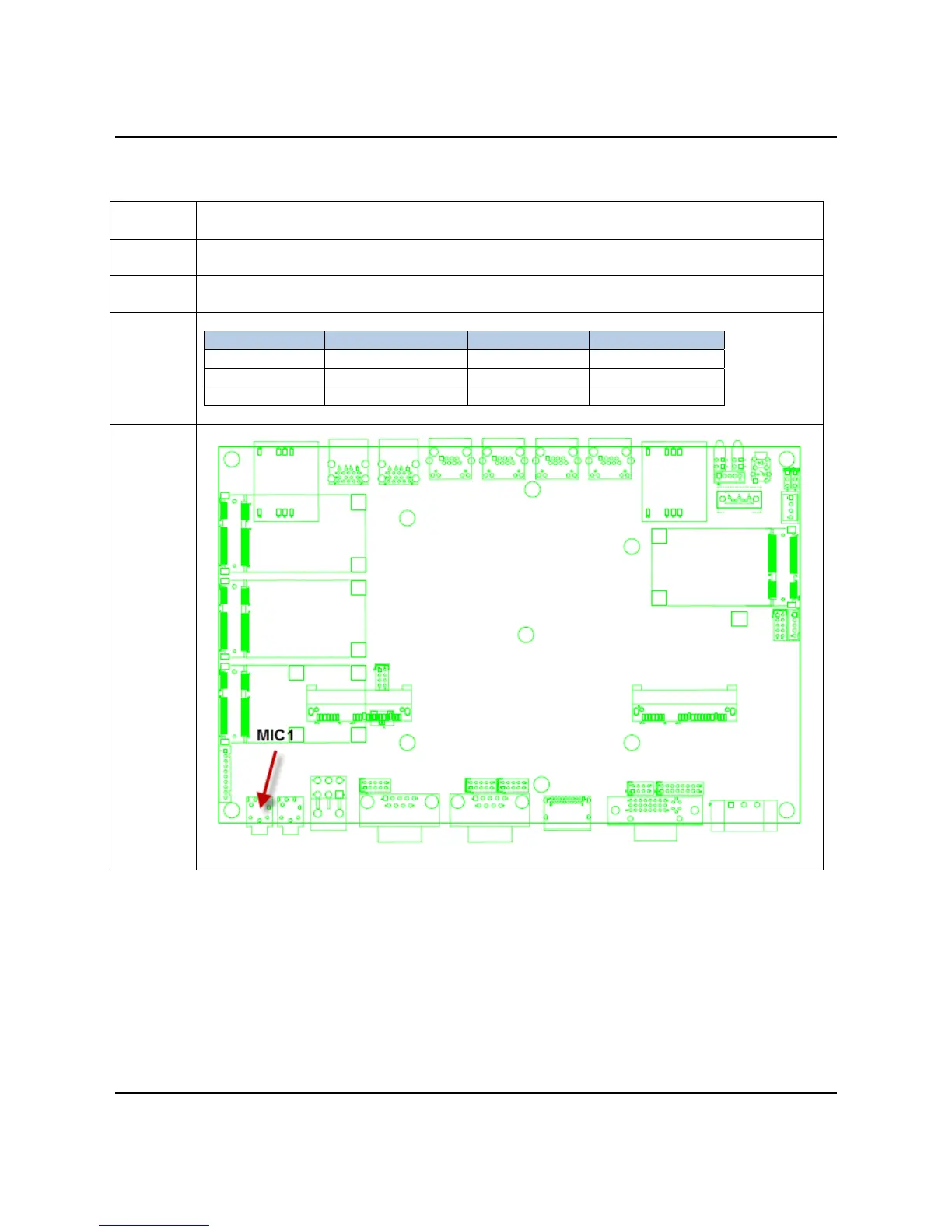

Connector
map
