Sintrones VBOX-3600 - Installing Memory

4.0 System Installation
User’s Manual Page 4-4
4.3 InstallingMemory


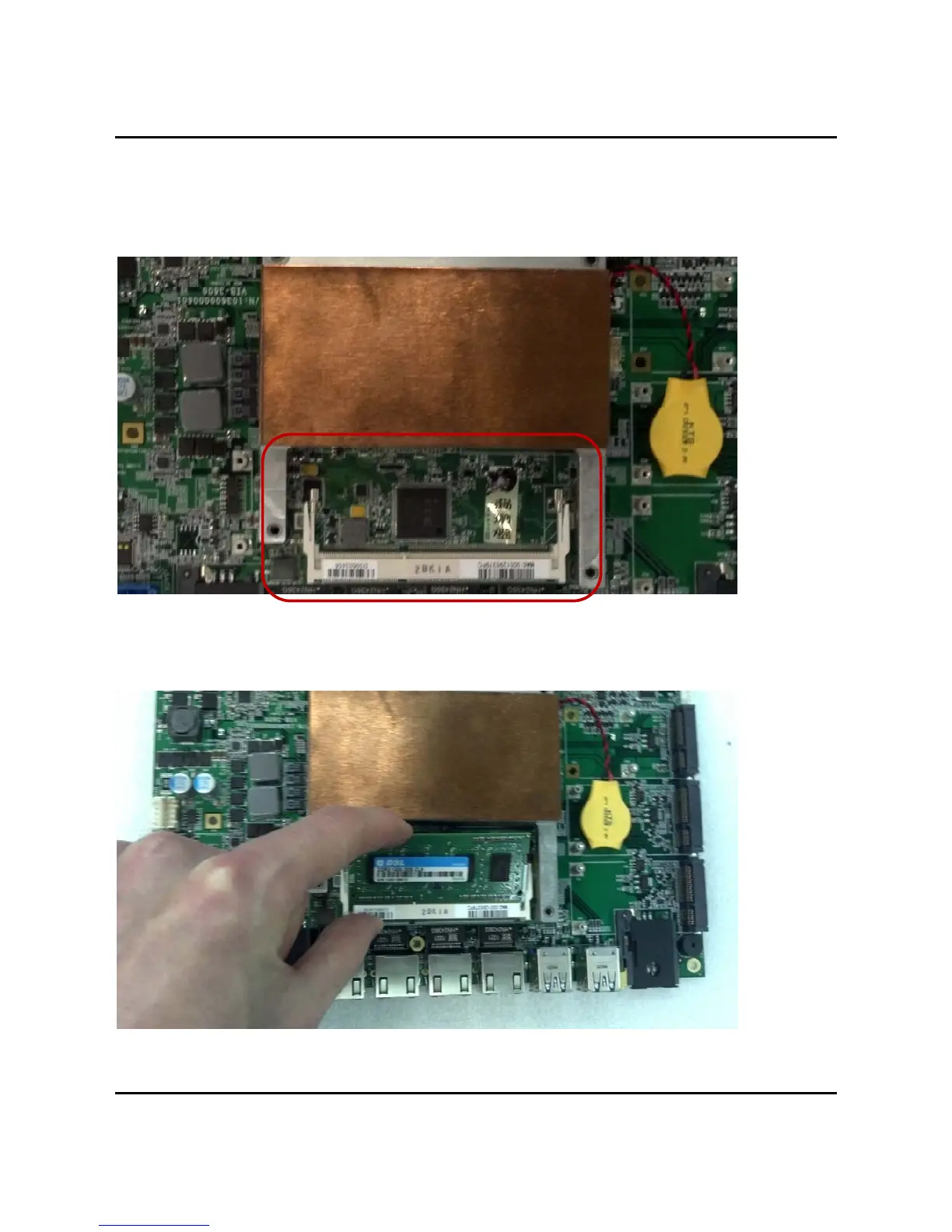

Step1.PutMemoryonthisplaceasshowninthepicture.


Step2.HoldtheMemorywithitsnotchalignedwiththeMemorysocketoftheboard
andinsertitata30‐degreeangleintothesocketasshowninthepicture.

