3.0 External Connector Specification
User’s Manual Page 3-6

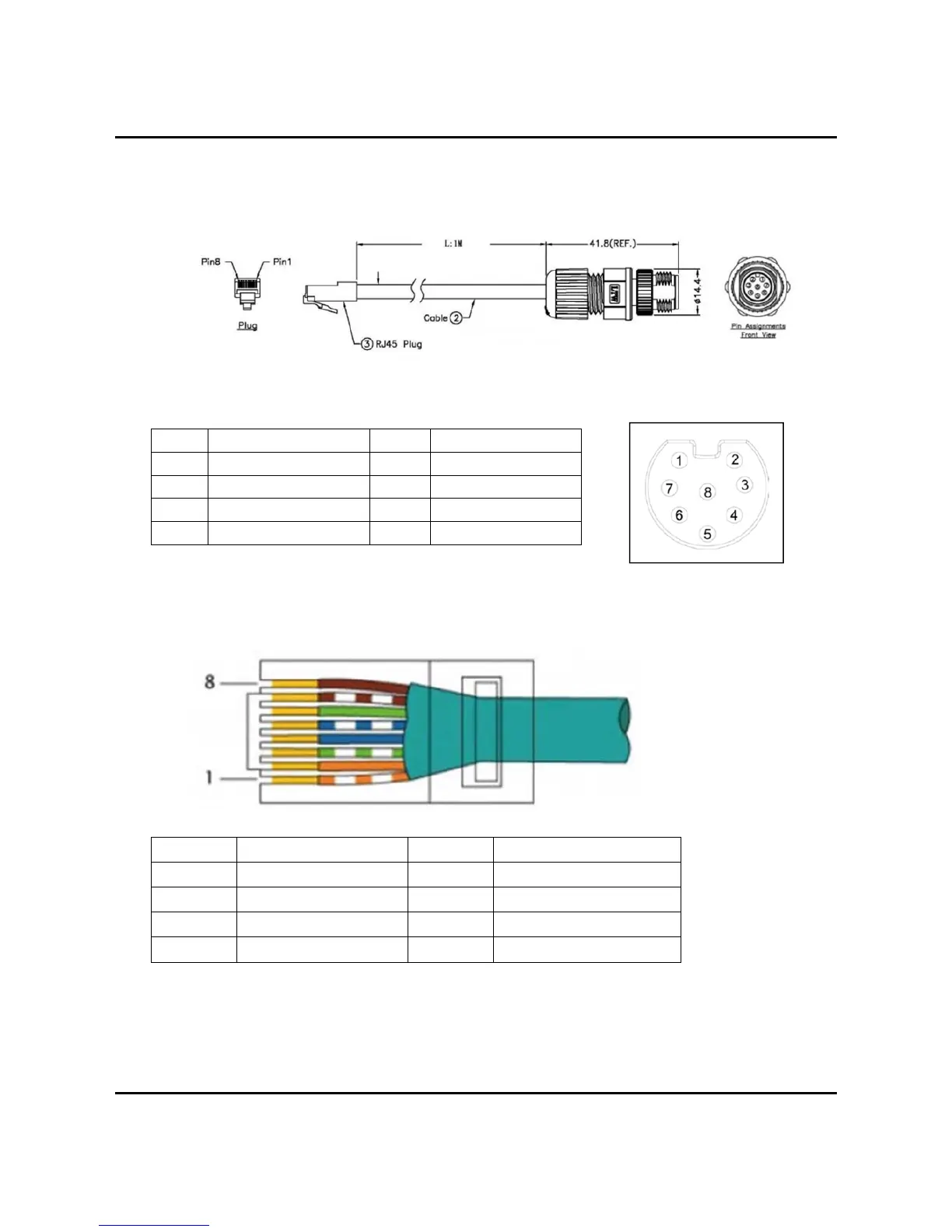

3.6 M12ConnectingtotheNetwork

A. M12toRJ45Cable



B. M12connectorpindefine
Pin Signal Pin Signal
1 TD1+ 2 TD1‐
3 TD2+ 4 TD3+
5 TD3‐ 6 TD2‐
7 TD4+ 8 TD4‐


C. CAT5connectorpindefine



Pin Signal Pin Signal
1 TD1+ 2 TD1‐
3 TD2+ 4 TD3+
5 TD3‐ 6 TD2‐
7 TD4+ 8 TD4‐
