Sintrones VBOX-3600 - SATA Power Connector (SPWR1)

2.0 Internal Connector Specification
User’s Manual Page 2-23
2.19 SATAPowerConnector(SPWR1)
Connector
size
1 X 4 = 4 Pin
Connector
type
WAFER 2.54mm-M-180
Connector
location
SPWR1
Connector
pin
definition
Pin Signal
1 +5V
2 GND
3 GND
4 +12V

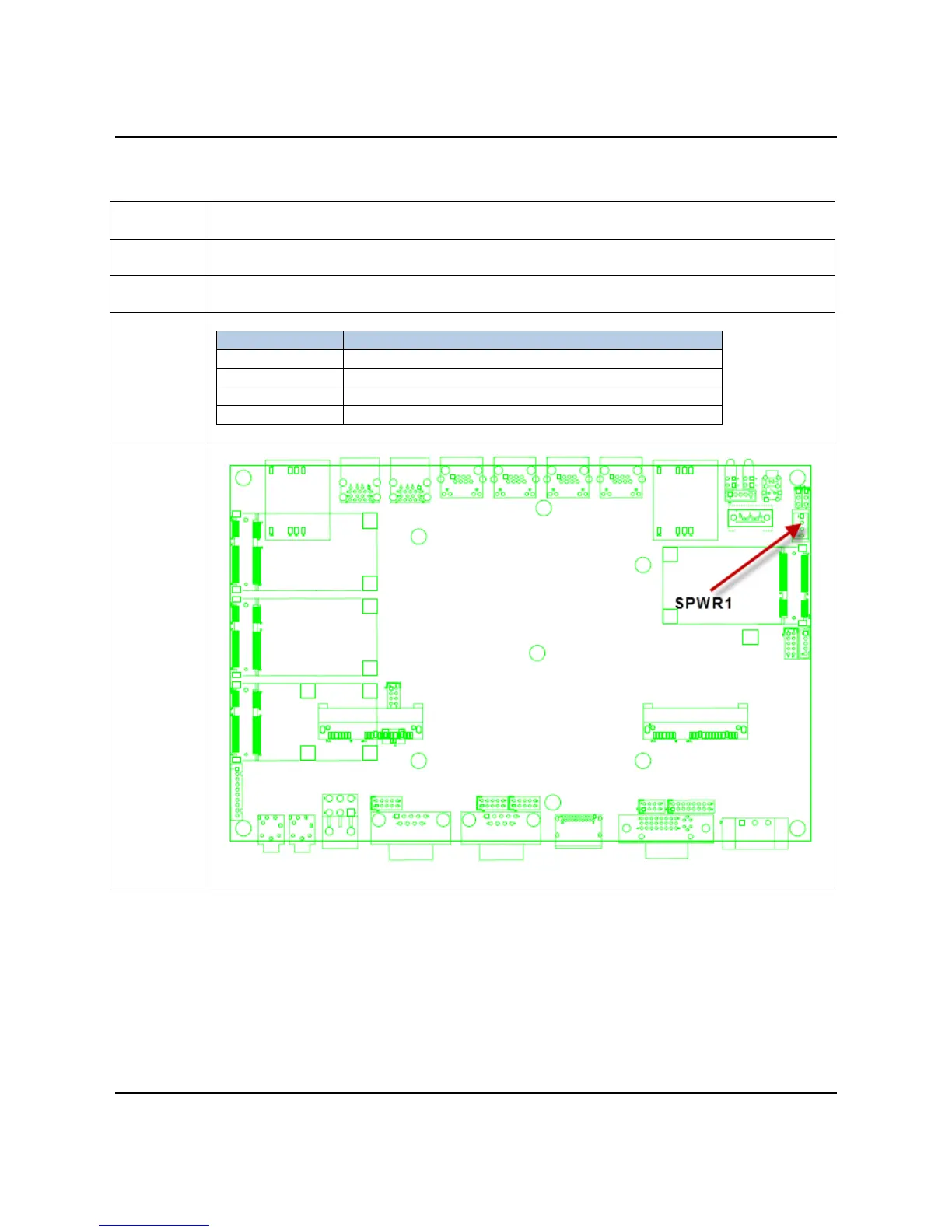

Connector
map
