Operation instructions
SIPOS 5 PROFITRON, HiMod
Page 38 Y070.020/GB
5 Commissioning
5
Commissioning
Messages:
„potentiometer out of range“
If the „potentiometer out of range“ message appears, the new end position is not within the availa-
ble potentiometer range. In this case, cancel the procedure (press
and buttons simultaneously).
The former setting is valid. If the setting cannot be retained, the end position must be set again.
”decrease sign. gear ratio“
Cancel the procedure if this message appears. The former setting is valid. If the setting cannot be
retained, the end position must be set again.
5.6.5 Adjusting the mechanical position indicator
The mechanical position indicator indicates the valve posi-
tion. The green symbol stands for OPEN and the red
symbol for CLOSED (refer to illustration).
The mechanical position indicator is an option, and not
included in all devices.
If the actuator was delivered mounted on a valve, the
setting may already be performed by the manufacturer.
The setting must be checked during commissioning.
If the mechanical position indicator was not yet set with the
end positions, set the indicator as follows.
Operation sequence
1. Operate the actuator into the end position CLOSED.
2. Remove signaling gear cover.
3. Turn white disc with red symbol (fi g., item 2) until the
symbol for CLOSED and the arrow (3) are aligned in
the indicator glass of the cover.
4. Operate actuator to position OPEN.
5. Hold white disc (2) in position and turn transparent disc
(1) so that the green symbol for OPEN and the arrow
(3) are aligned.
6. Tighten signaling gear cover.

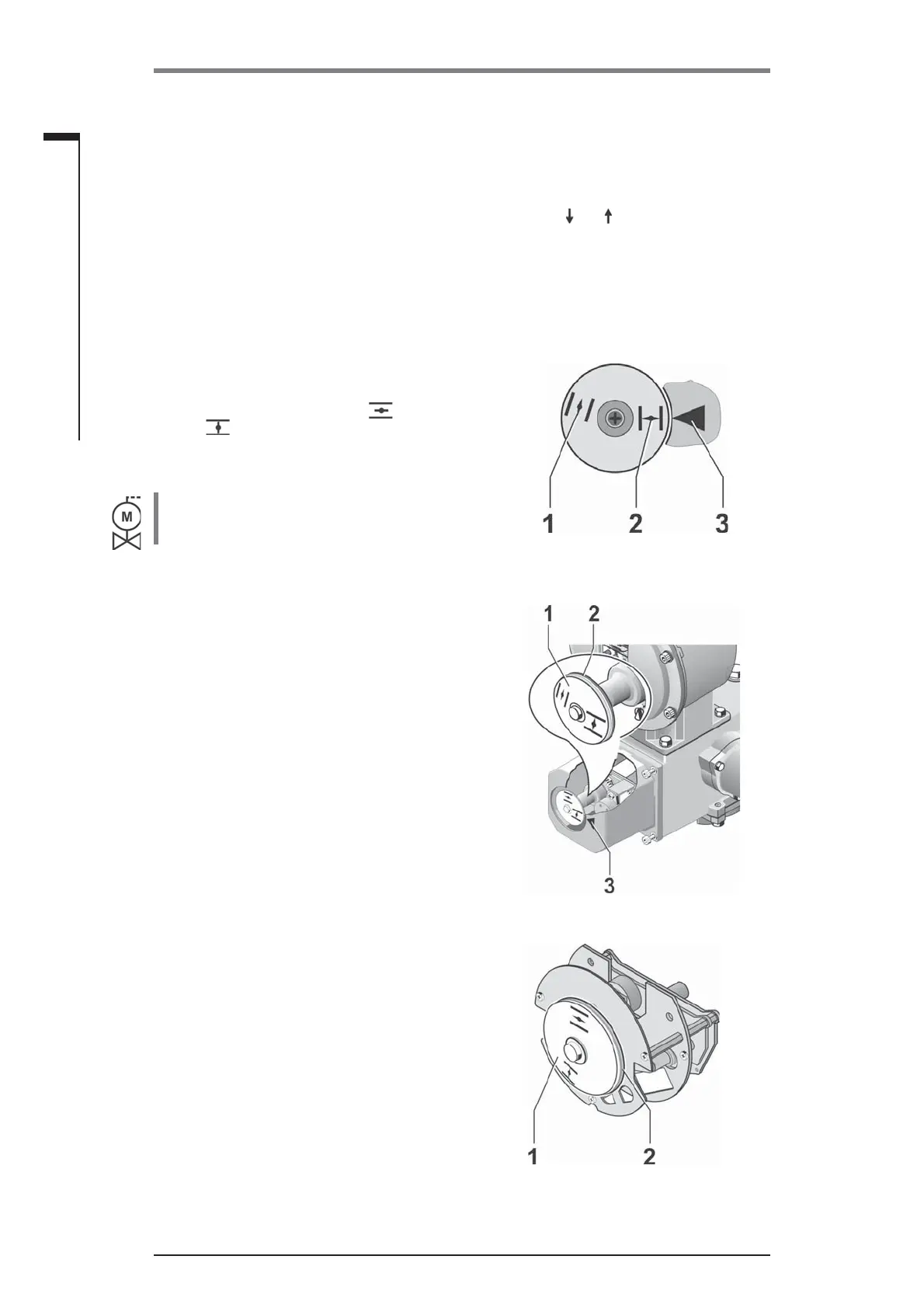

Fig. 1: Symbols of position
indicator
Fig. 2: Adjusting the position
indicator
Fig. 3: Position indicator for 2SG5
