Sirona Dental Systems GmbH 4Operation
Operating Instructions INTEGO 4.6Assistant element
båÖäáëÜ

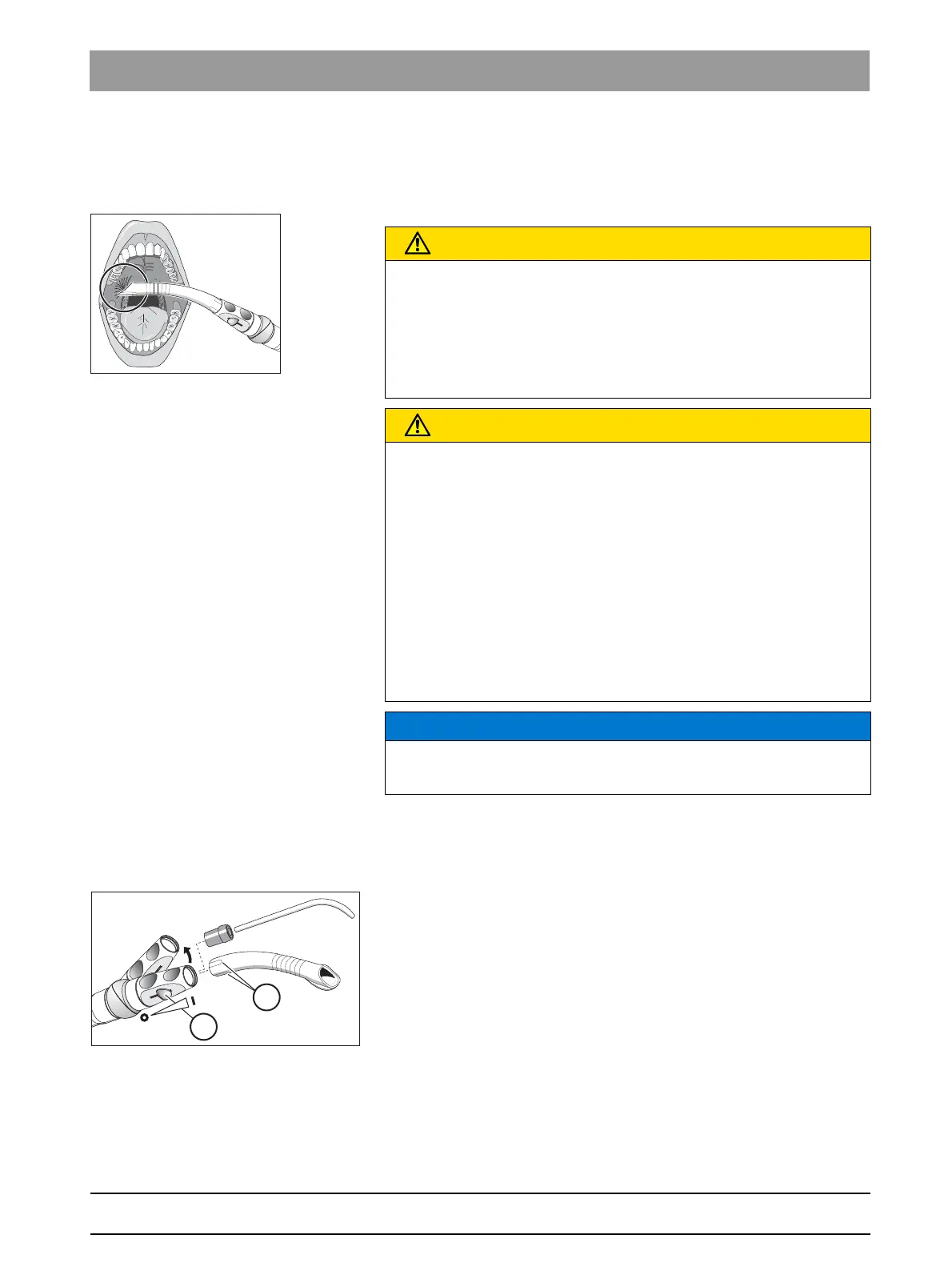

4.6.4 Suction handpieces
The assistant element can be equipped with up to two spray aspirators
and one saliva ejector.
Suction hose, cannula attaches itself to oral mucosa
Switch off the sucti on flow using the s lide or the 4-way f oot switch
Vacuum system, Reference to safety instructions
Tip: The factory-set suction power can be adjusted in the water unit by a
service engineer.
Spray aspirator
You can angle the suction handpiece by turning it.
To prevent completely interrupting the suction flow when the cannulae
attach to the oral mucosa, spray aspirator cannulae with lateral air intakes
A should be used. This prevents backflow from the hose into the oral
cavity if the cannulae attach themselves.
The suction flow can be stopped and regulated using the slide B.
The thick suction hose can be used for surgical suction. To insert a
surgical cannula, please attach the adapter supplied.
CAUTION
The tip attaches itself to the oral mucosa.
The patient's oral mucosa can be irritated by the vacuum.
➢ Make sure that you hold the suction tip in such a way that the
opening cannot accidentally attach to the oral mucous membranes.
Sirona recommends using spray aspirator cannulas with additional
air intake, see "Spare parts, Consumables" [ → 299].
CAUTION
The suction handpieces can be closed using the slide. Suction can be
switched off with the 4-way foot switch.
Due to the lack of suction flow, fluid may run back out of the suction
handpieces and into the patient's mouth.
➢ Ensure that the slide is opened and there is suction flow before
holding an aspirator in the patient's mouth. Return the aspirator to
the holder with the slide open.
➢ Always remove the aspirator from the mouth before closing the
slide.
➢ Before suction flow can be switched off with the 4-way foot switch,
the spray aspirator and saliva ejector must be removed from the
patient's mouth.
NOTICE
Suction removal of metal oxides from blasting devices
Observe the safety information on the "Vacuum system" [ → 18].
A
B
