4Operation Sirona Dental Systems GmbH
4.7Water unit Operating Instructions INTEGO
4.7
Water unit

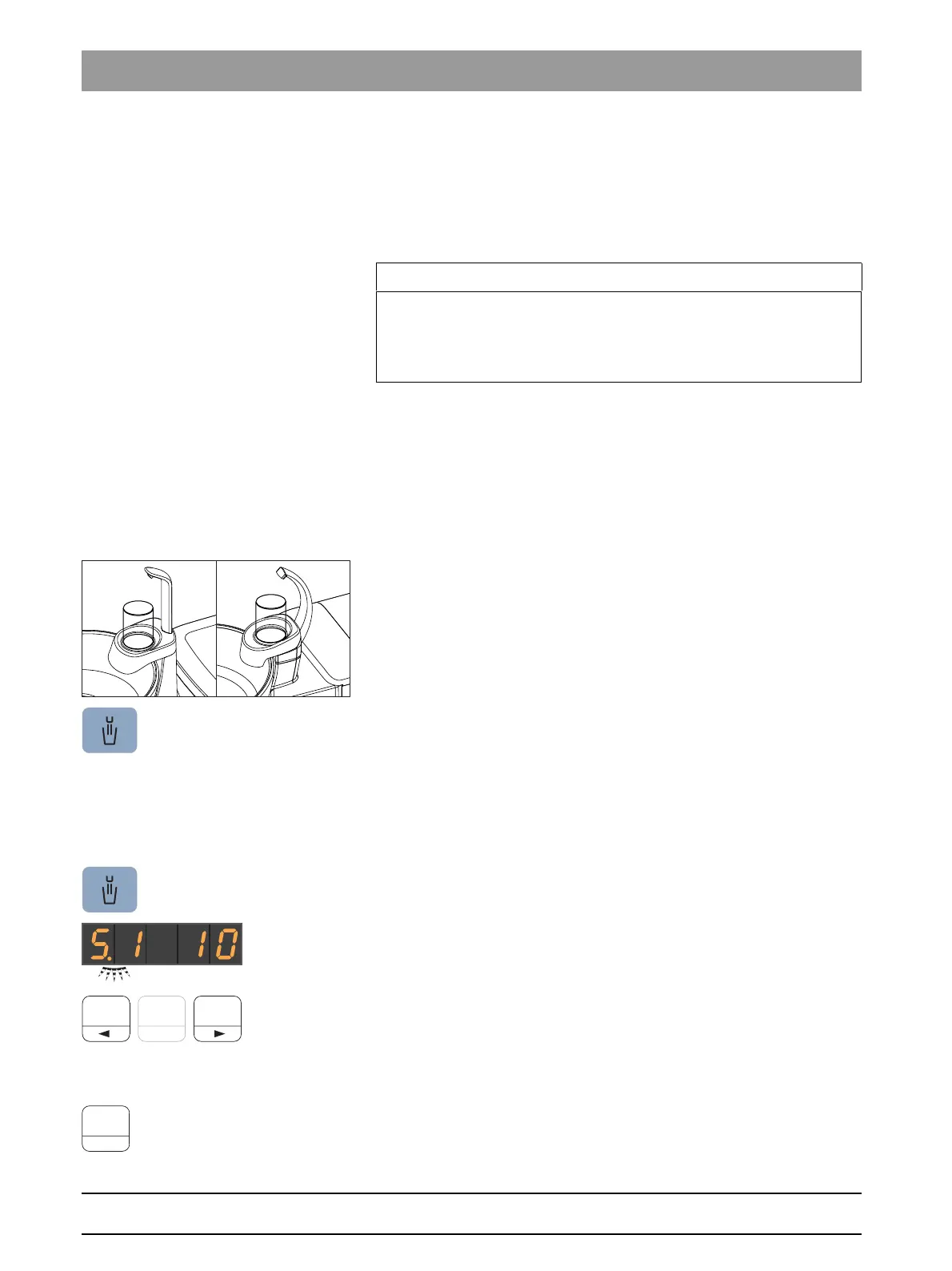

4.7.1 Swiveling the cuspidor bowl
The cuspidor on the water unit can be manually swiveled approx. 110 mm
toward the patient chair.
Cuspidor, man ual, starting position
4.7.2 Tumbler filling
Water heater in the water uni t, optional with INTEGO
The heater for the treatment water is in the water unit. The water heater
is optional in the INTEGO.
4.7.2.1
Tumbler filling on the EasyPad
Filling the tumbler
1. Place a tumbler under the tumbler filler.
2. Press the
Tumbler Filling fixed key.
 The tumbler is filled with water for the preset time.
Pressing the
Tumbler Filling fixed key again stops the filling function
immediately.
Coupling tumbler filling to the mouth rinsing position S and setting the
filling time
➢ Press and hold the Tumbler Filling fixed key (> 2 s).
 The
Tumbler filling operating context is displayed. The setting
focus
Link tumbler filling to the mouth rinsing position S flashes.
1. Press on the left or right arrow of the favorite key pad.
 The display switches between "S.0" and "S.1". If "S.1" is
selected, the tumbler filling function will automatically be
switched on for the duration of the preset filling time when the
mouth rinsing position S chair program is activated.
2. Confirm your selection with the favorite key
2 / Setup .
IMPORTANT
Chair movements with cuspidor swiveled in INTEGO
With the cuspidor bowl swiveled in, the chair cannot be moved. This
prevents the patient from colliding with the cuspidor. Swing the cuspidor
outward before initiating chair movement.
