Sirona Intego Pro - X-Ray Tube Unit

64 57 498 D3543
174 D3543.201.01.05.02 08.2016
4Operation Sirona Dental Systems GmbH
4.11X-ray tube unit Operating Instructions INTEGO
4.11
X-ray tube unit
The treatment centers INTEGO and INTEGO pro can be equipped with
the HELIODENT
PLUS
X-ray tube unit. No X-ray tube unit is available for
treatment centers with the Ambidextrous option.

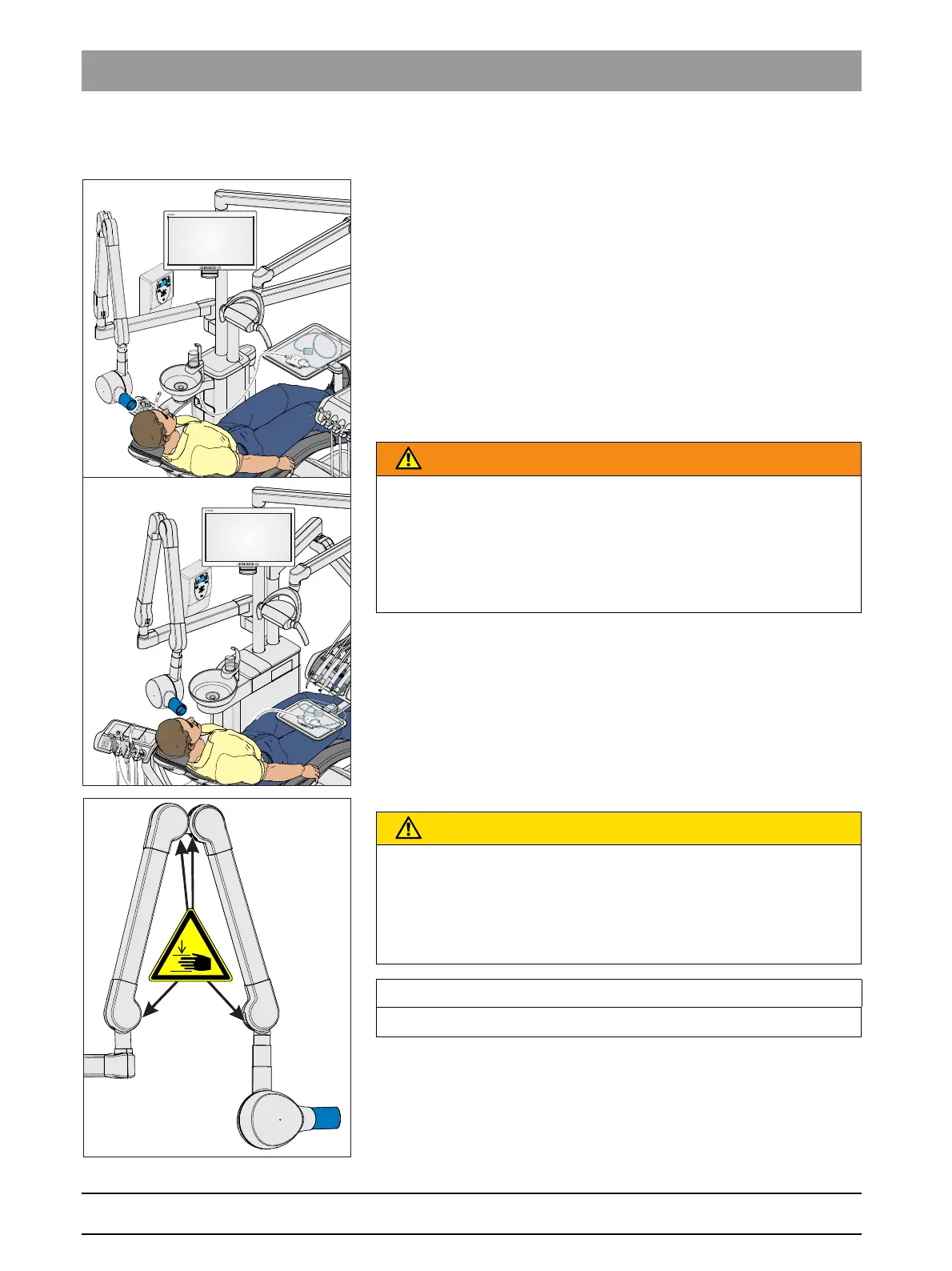

The X-ray tube unit is attached to the light post of the treatment center
using a multi-jointed support arm that can be adjusted both horizontally
and vertically. Brakes in the support arm hold the X-ray tube unit in the
position to which it has been adjusted.
The X-ray parameters are set on the wall adapter of the X-ray tube unit or
on a "remote timer".
The intraoral X-ray system XIOS XG USB module can be connected to
the PC via the UBS interface on the dentist and assistant element. For
details, see section "USB interfaces" [ → 191].
X-ray tube unit, collision while moving the patient chair
Support a rm of the X-ray tub e unit, risk of crushing in the hinge g aps
0
.
4
0
H
EL
IO
DE
N
T
PLU
S
0
.
4
0
H
E
L
I
O
D
E
N
T
P
L
U
S
WARNING
The X-ray tube unit can be positioned within the movement range of the
patient chair.
Moving the patient chair may cause the patient to collide with the X-ray
tube unit or its support arm. The patient could be injured.
➢ Before moving the patient chair, position the X-ray tube unit to make
a collision with the patient or the patient chair impossible.
HELIODENT
P
LU
S
CAUTION
Gaps appear between the internal hinges when moving the support
arm.
Fingers may be crushed in these gaps.
➢ Ensure that you never place your fingers in the gaps between the
hinges, neither during operation nor for cleaning purposes.
IMPORTANT
See also the HELIODENT
PLUS
operating instructions.
