The CMSS 911 Probe Holder (Figure 3-7) with Housing offers an
adjustable probe mount with a variety of penetration depths. The integral
housing protects the probe cable exit and permits easy access for probe
adjustment without machine disassembly. It is recommended that probes be
ordered with a case length of 1.2 inches or use the standard reverse mount
probe and an overall length of 0.5 or 1.0 meters. The housing has four 3/4”
(19 mm) NPT hubs for conduit attachment (3 close-up plugs provided).
1 Outlet body (part number 10699400) GRR-2
2 Outlet body extension (part number 10699300) GRCEX-0
3 Outlet body hub, 3/4” (19 mm) NPT (4 each)
4 Probe adapter union, 3/4” (19 mm) NPT (part number 30180900)
5 Probe adapter collar (part number 30187900)
6 Hex head steel cap screw (part number 10702200)
7 Probe Holder (“Stinger”) (part number–various depending on length)
8 Jam nut: CMSS 68: 3/8–24 (part number 30126800)
CMSS 65: 1/4–28 (part number 30053500)
9 “O” Ring union seal (part number 10711803)
10 “O” Ring tip seal
The CMSS 911 Dual Sensor Holder (Figure 3-8) with or without the
housing provide for the mounting, adjustment and protection of the eddy
probe, in addition to mounting an accelerometer or velocity sensor on the
same axis as the eddy probe for absolute vibration measurements. It is
recommended that probes be ordered with a case length of 1.2 inches
or use the standard reverse mount probe and an overall length of 0.5 or
1.0 meters. The housing has four 3/4” (19 mm) NPT hubs for conduit
attachment (3 close-up plugs provided).
1 Outlet dome (part number 10699402) 4GOU
2 Seismic sensor mounting adapter (part number 31194200)
3 Outlet body (part number 10699401) GECXAT-2
4 End plug (part number 10746003) CUP-2
5 Probe adapter union (part number 30180900)
6 “O” Ring union seal (part number 10711803)
7 Jam nut: CMSS 68: (part number 30126800)
CMSS 65: (part number 30053500)
8 Seismic sensor accelerometer/velocity
9 Probe adapter collar (part number 30187900)
10 Hex head steel cap screw (part number 10702200)
11 Probe Holder (“Stinger”) (part number–various depending on length)
12 “O” Ring tip seal

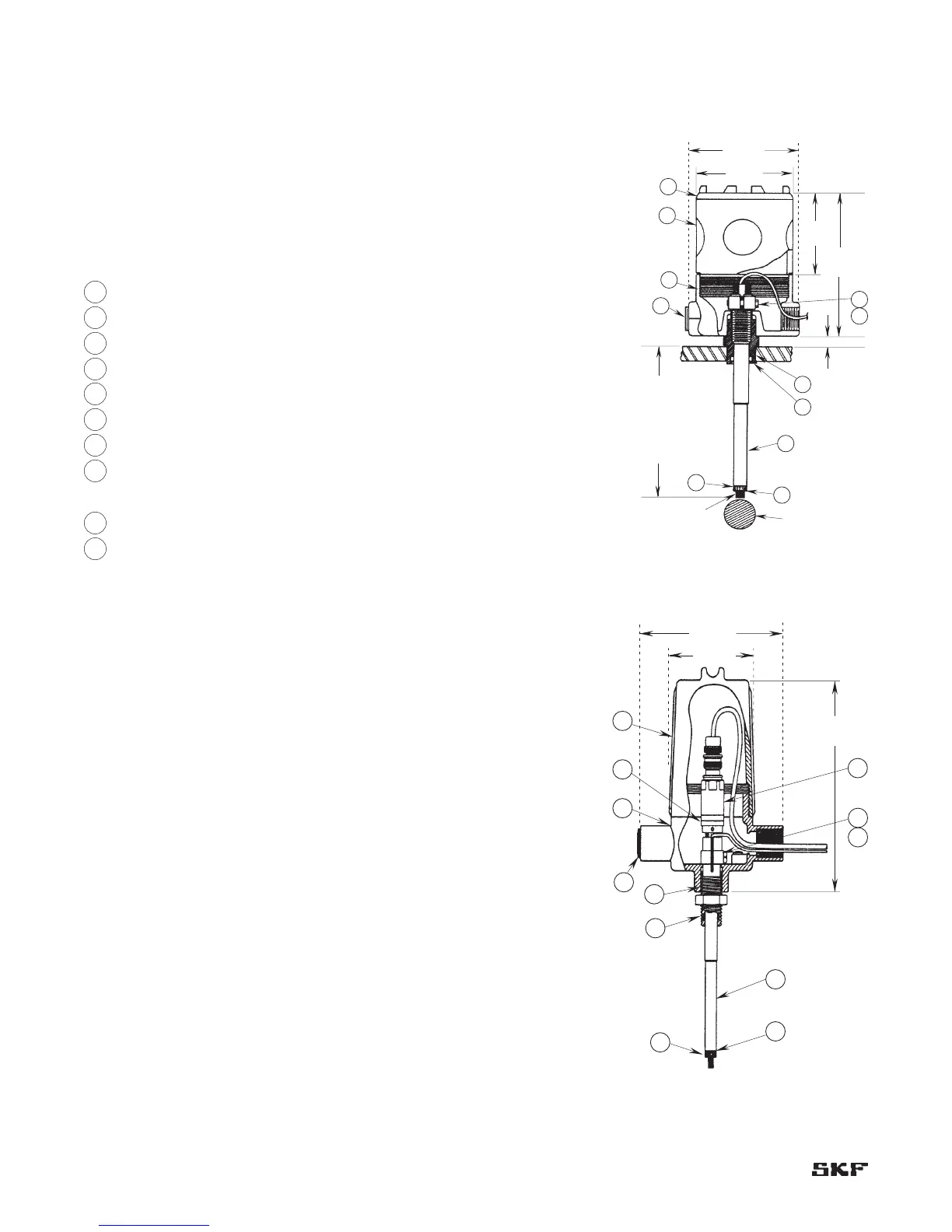

Figure 3-8. CMSS 911 Dual Sensor Holder with
housing.
Figure 3-7. CMSS 911 Probe Holder with
housing.
1
2
3
4
11
7
6
12
8
9
10
5
8.50”
(216mm)
5.50”
(140mm)
3.88”
(99mm)
1
2
1
3
4
9
7
8
10
5
6
Machine Shaft
Dimension “B”
Outside Surface
of Machine
3.50”
(89mm)
4.44”
(113mm)
5.87”
(150mm)
3.00”
(76mm)
Probe Tip
(Reference Only)
Dimension “A”
Penetration Depth
NOTE: The effective
dimension “A” is reduced
when dimension B” is
increased above the
standard 0.5” value.
Section 3 – Probe installation
3-4
CMSS 911 Probe Holder with Housing/Dual Sensor Holder with
Housing
