Section 4 – Driver installation
4-7
Explosion-proof housings for
DIN-rail mount drivers
Explosion-proof housings
Explosion-proof and dust-tight housings•
Class I, Group C and D•
Class II, Groups E, F, and G•
Class III,•
UL Standard 886 –
CSA Standard C22.2, Number 30 1970 –
The Explosion-proof housing is designed for use in
environments classified as hazardous. The housing is
manufactured of aluminum alloy with a copper content less
than 0.3% maximum. On three sides the bosses are drilled
and tapped for 3/4 inch (19 mm) NPT conduit fittings. The
dome type housing is specified requiring a minimum of
floor space for fixture mounting. Two sizes are available
which should normally meet criteria for an explosion-proof
housing at each bearing or a larger size where the drivers
from multiple bearings can be housed.
Explosion-proof housing
dimensions

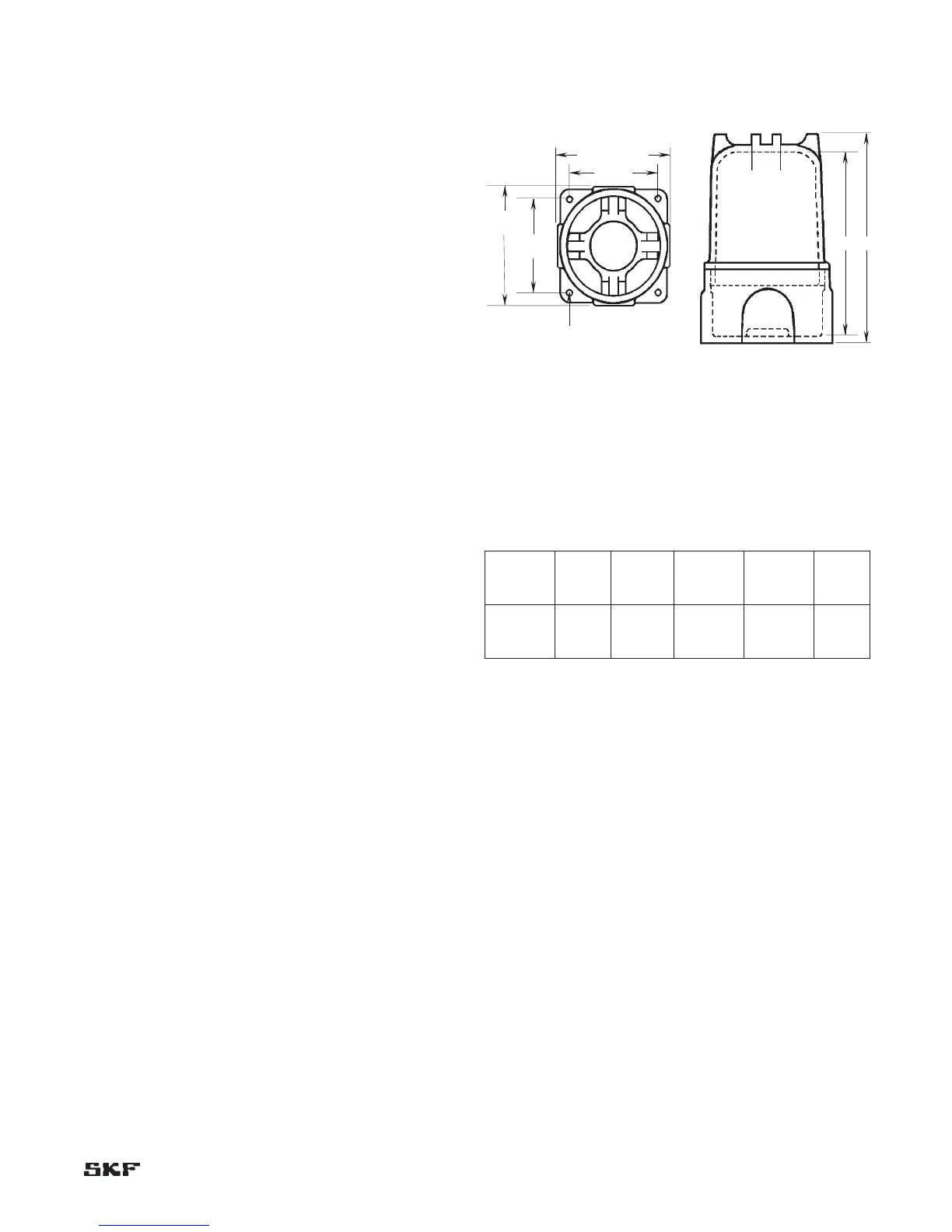

Figure 4-14. Explosion-proof housing dimensions.
Explosion-proof housings for RYTON
™
DIN-rail mount
drivers. The units come with all hardware ready for
assembly and installing the drivers.
CMSS 31091700 Explosion-proof dousing for maximum
four drivers.
Table 4-3. Explosion-proof housing dimensions.
Catalog
number
A
Inside
dome
B
Inside
dome
Diameter
cover
opening
Mounting
hole size
Weight
each -
pound
CMSS
31091700
10-1/4”
(290
mm)
11-7/16”
(290
mm)
6-7/8”
(175 mm)
7/16”
15
(6.5 kg)
