SKF CMSS 60 - CMSS 30112000 Series Cable Packing Gland Assembly

Section 5 – Optional equipment
5-2

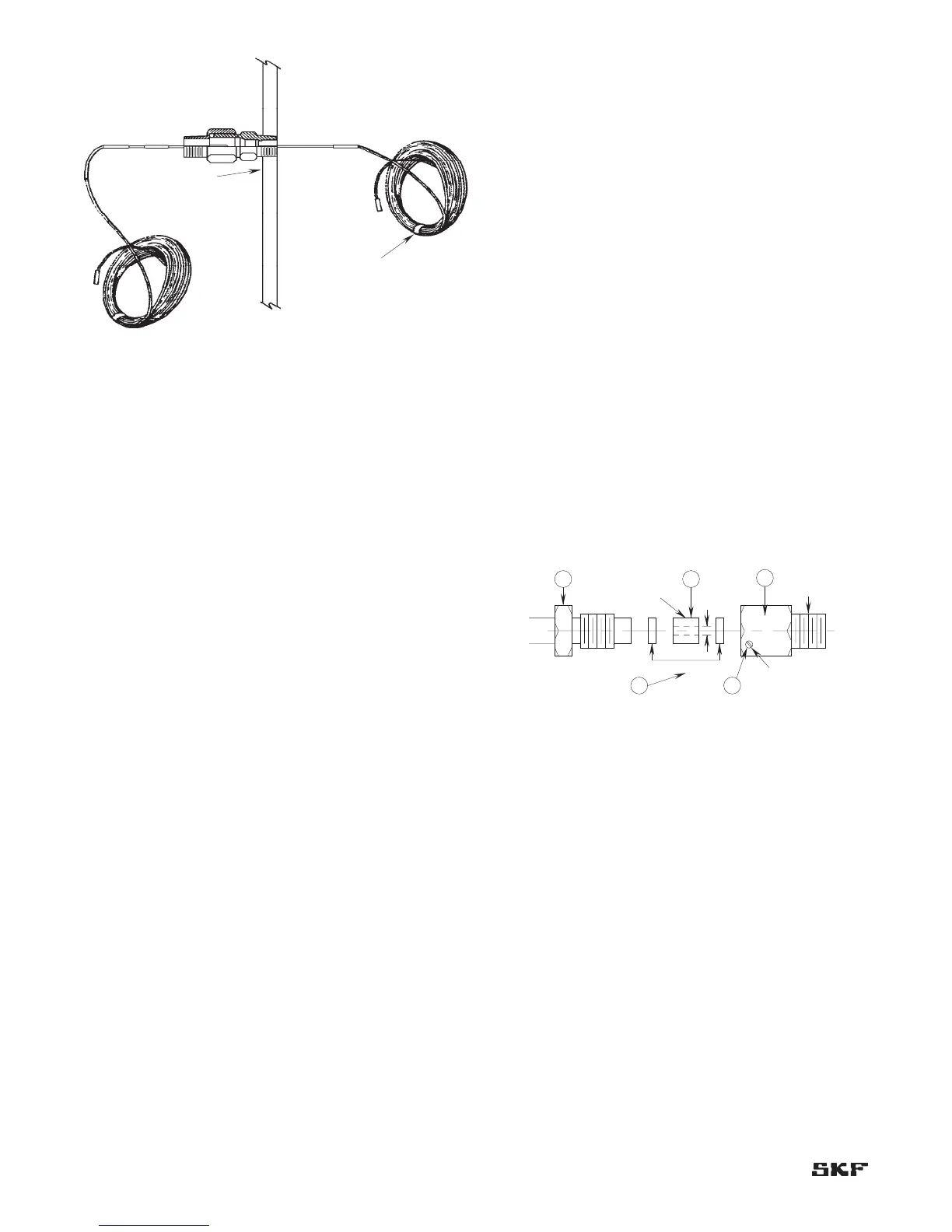

Figure 5-2. CMSS 920 installation diagram.
8. Verify that the torque on the 1.50” (38.1 mm) nut is
60 to 80 foot-pounds (81.35 to 108.5 N-m) to ensure
a good seal.
9. Connect the cable-end connectors to the probe and the
driver.
Note: Hand tightening is not sufficient. Tighten to 140
to 150 inch-ounces (0.99 to 1.06 N-m).
10. Wrap all cable-end connectors with suitable insulating
tape to isolate them from ground.
11. Secure cables with tie wraps (inside and out) to
prevent mechanical abrasion of jacket material during
operation.
Note: The CMSS 920 High Pressure Feedthrough is not
field repairable. If it becomes damaged return it
to the factory for rebuild.
Low Pressure (LP) High Pressure (HP)
Machine Case
Cable Tie
CMSS 30112000 Series Cable
Packing Gland Assembly
The CMSS 30112000 Series Cable Packing Gland
Assembly offers a splash-proof cable exit from the machine
case. They are available in 1 or 2 cable exit versions and
with either a 1/2” (12.7 mm) or 3/4” (19 mm) NPT male
thread for screwing into the machine housing. It is an
effective and easily installed low pressure (10 atmospheres
maximum) seal. The internal oil resistant neoprene
packing as well as washers are split to allow cable
installation without connector removal.
CMSS 30112000• One (1) cable exit, 1/2” (12.7 mm)
NPT thread
CMSS 30112001• Two (2) cable exit, 1/2” (12.7 mm)
NPT thread
CMSS 30112003• One (1) cable exit, 3/4” (19 mm) NPT
thread
CMSS 30112004• Two (2) cable exit, 3/4” (19 mm) NPT
thread
CMSS 30112006• Two (2) cable exit, 1/2” (12.7 mm)
NPT thread
Figure 5-3. Cable packing gland assembly.
Loosen set screw (A), loosen and separate gland body 1.
(B) and gland nut (C), remove split washers (D) and
neoprene packing (E).
Insert probe cable and connector through the body (B) 2.
and nut (C).
Screw gland body (B) into machine case.3.
Slide washers (D) and packing (E) over probe cable.4.
Carefully mate the nut (C) and body (B) together making 5.
sure the washers and packing fit inside without being
crimped or cut.
Tighten nut (C) to 60 to 80 foot-pounds (81.35 to 6.
108.50 N-m).
Tighten setscrew (A) to prevent nut (C) from vibrating 7.
loose during operation.
Split Washers
0.12”
(3.05mm)
1/2" (12.7mm) NPT o
r
3/4” (19.0mm) NPT
Set Screw
Neoprene
Packing
1/2” (12.7mm)
NPT Internal
D
A
B
E
C
