Section 1
General information
Introduction
This manual provides for the use, installation, and
maintenance information for the following SKF Eddy
Current Probe Systems.
Probe diameter, probe/extension cable/driver
5 mm CMSS 61/CMSS 900/CMSS 606 Series•
8 mm CMSS 60/CMSS 900/CMSS 600 Series•
5 mm CMSS 65/CMSS 958/CMSS 665/CMSS 665P •
Series
8 mm CMSS 68/CMSS 958/CMSS 668/CMSS 668P •
Series
19 mm CMSS 62/CMSS 900/CMSS 620-2 Series•
This manual also explains how to use optional equipment
associated with Eddy Probe Systems.
Eddy Probe Systems are integral components and typically
consist of a non-contacting probe, an extension cable, and
a driver (Figure 1-1).

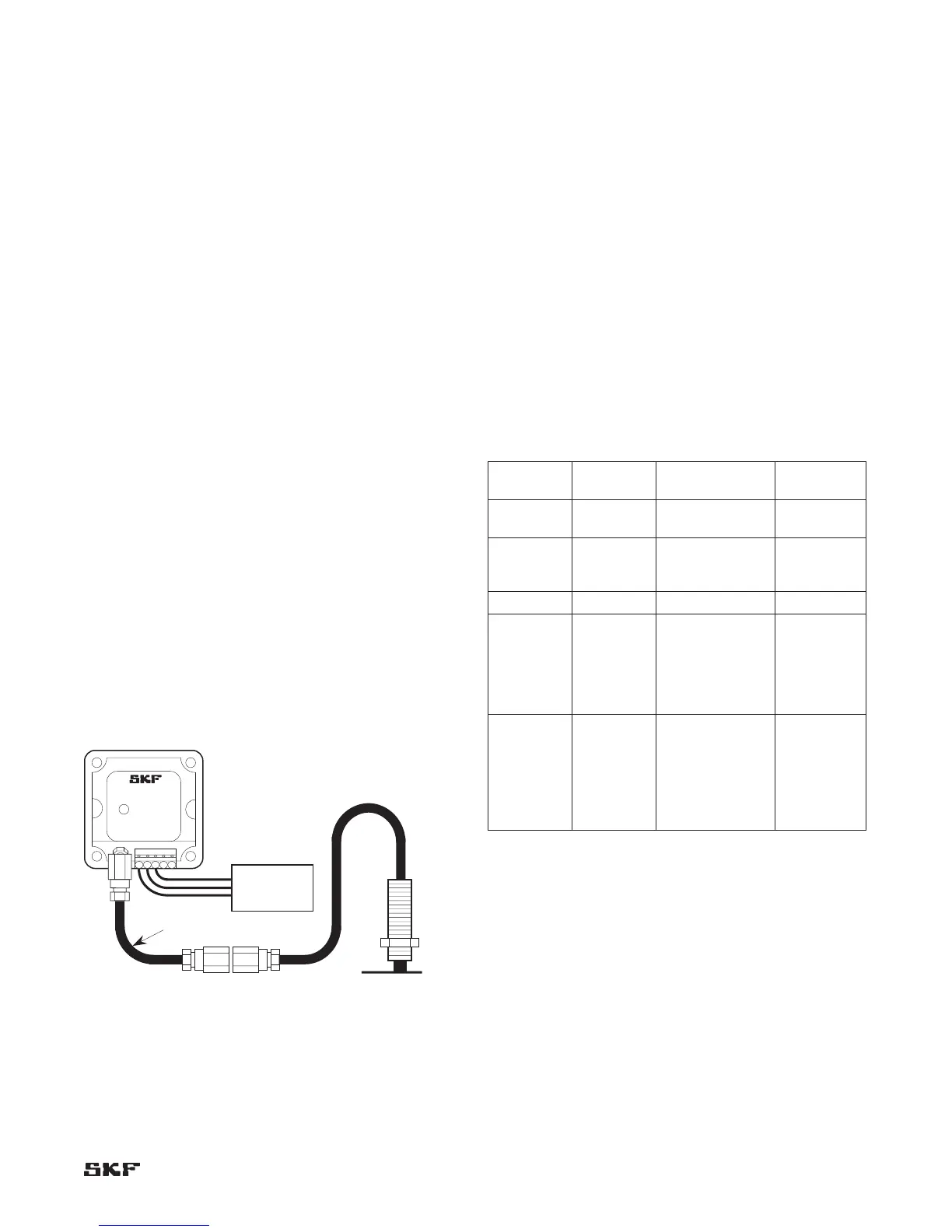

Figure 1-1. The SKF Eddy Current Probe System.
An Eddy Probe senses mechanical movement and converts
this movement (displacement) into a usable electrical
signal. The signal can then be sent to a monitor system for
conditioning, analysis and/or alarm protection.
Table 1-1. Component compatibility.
Probe
Extension
cables
Driver System length
CMSS 60
CMSS 60
CMSS 900
CMSS 900
CMSS 600
CMSS 600-1 Series
5 meters
10.5 meters
CMSS 61
CMSS 61
CMSS 61
CMSS 900
CMSS 900
CMSS 900
CMSS 606
CMSS 627
CMSS 606-10
5 meters
9 meters
5 meters
CMSS 62 CMSS 900 CMSS 620-2 10.8 meters
CMSS 65
CMSS 65
CMSS 65
CMSS 65
CMSS 65
CMSS 65
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 665
CMSS 665-1
CMSS 665-8
CMSS 665-16-9
CMSS 665-16-15
CMSS 665-20-00
5 meters
10 meters
5 meters
5 meters
10 meters
5 meters
CMSS 68
CMSS 68
CMSS 68
CMSS 68
CMSS 68
CMSS 68
CMSS 68
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 958
CMSS 668
CMSS 668-1
CMSS 668-2
CMSS 668-8
CMSS 668-16-9
CMSS 668-16-15
CMSS 668-20-00
5 meters
10 meters
15 meters
5 meters
5 meters
10 meters
5 meters
