Section 5 – Optional equipment
5-3
CMSS 30837800
1/2” (12.7 mm) or 3/4” (19 mm)
NPT Probe Adapter
The probe adapter is used to mount a probe with a 1/4–28
or 3/8–24 thread in a machine case which will accept the
1/2” (12.7 mm) or 3/4” (19 mm) NPT fitting. Conduit or
a junction box may be mounted on the exterior side of the
adapter.
CMSS 30837800•
3/8–24 internal thread for CMSS 68 style probes. –
1/2” (12.7 mm) NPT external thread. –
CMSS 30837801•
1/4–28 internal thread for CMSS 65 style probes. –
1/2” (12.7 mm) NPT external thread. –
CMSS 30837802•
3/8–24 internal thread for CMSS 68 style probes. –
3/4” (19 mm) NPT external thread. –
CMSS 30837803•
1/4–28 internal thread for CMSS 65 style probes. –
3/4” (19 mm) NPT external thread. –

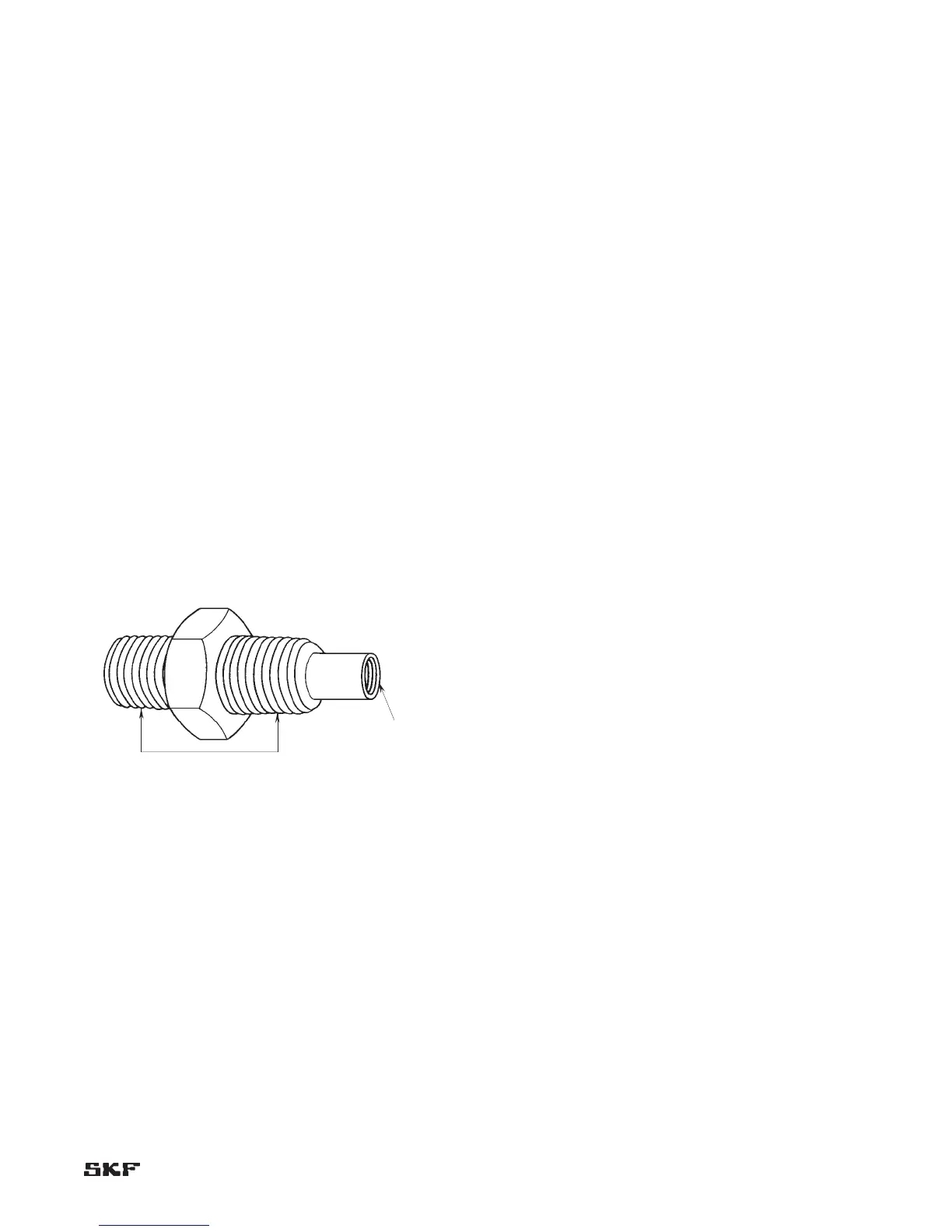

Figure 5-4. 1/2” (12.7 mm) or 3/4” (19 mm) NPT probe adapter.
