Section 4 – Driver installation
4-5
CMSS 31092100 Weatherproof housing for •
maximum three drivers
CMSS 31092200 Weatherproof housing for •
maximum six drivers
CMSS 31092300 Weatherproof housing for •
maximum ten drivers
Area classification — (Stainless steel, clamp
cover)
NEMA/EEMAC Type 4, Type 4X, Type 12 and
Type 13
UL50 Type 4, Type 4X
UL508 Type 4, Type 4X
CSA Type 4, Type 4X
IEC 529, IP66
CMSS 31092101 Weatherproof housing for •
maximum three drivers
CMSS 31092201 Weatherproof housing for •
maximum six drivers
Area classification — (Stainless steel)
continuous hinge on one side, clamps on
other three sides of cover.
NEMA/EEMAC Type 4, Type 4X, Type 12 and
Type 13
UL50 Type 4, Type 4X
UL508 Type 4, Type 4X
CSA Type 4, Type 4X
IEC 529, IP66
CMSS 31092103 Weatherproof housing for •
maximum three drivers
CMSS 31092303 Weatherproof housing for •
maximum ten drivers
Weatherproof housings for DIN-rail
mount drivers
Table 4-2. Weatherproof housing dimensions.
SKF model
number
Box size
A x B x C
Mounting
D x E
Clamp style
overall L x W
Hinge style
overall L x W
CMSS 31092100
CMSS 31092101
CMSS 31092102
8.00 x 6.00 x
3.50”
(203 x 152 x 89
mm)
8.75 x 4.00”
(222 x 102
mm)
9.50 x 7.38”
(24 x 187
mm)
9.50 x 6.94”
(24 x 176
mm)
CMSS 31092200
CMSS 31092201
10.00 x 8.00 x
4.00”
(254 x 203 x
102 mm)
10.75 x
6.00”
(273 x 152
mm)
11.50 x 9.38”
(292 x 238
mm)
11.50 x 8.94”
(292 x 227
mm)
CMSS 31092300
12.00 x 10.00 x
5.00”
(305 x 254 x
127 mm)
8.75 x 4.00”
(324 x 203
mm)
13.50 x
11.38”
(343 x 289
mm)
13.50 x
10.94”
(343 x 278
mm)

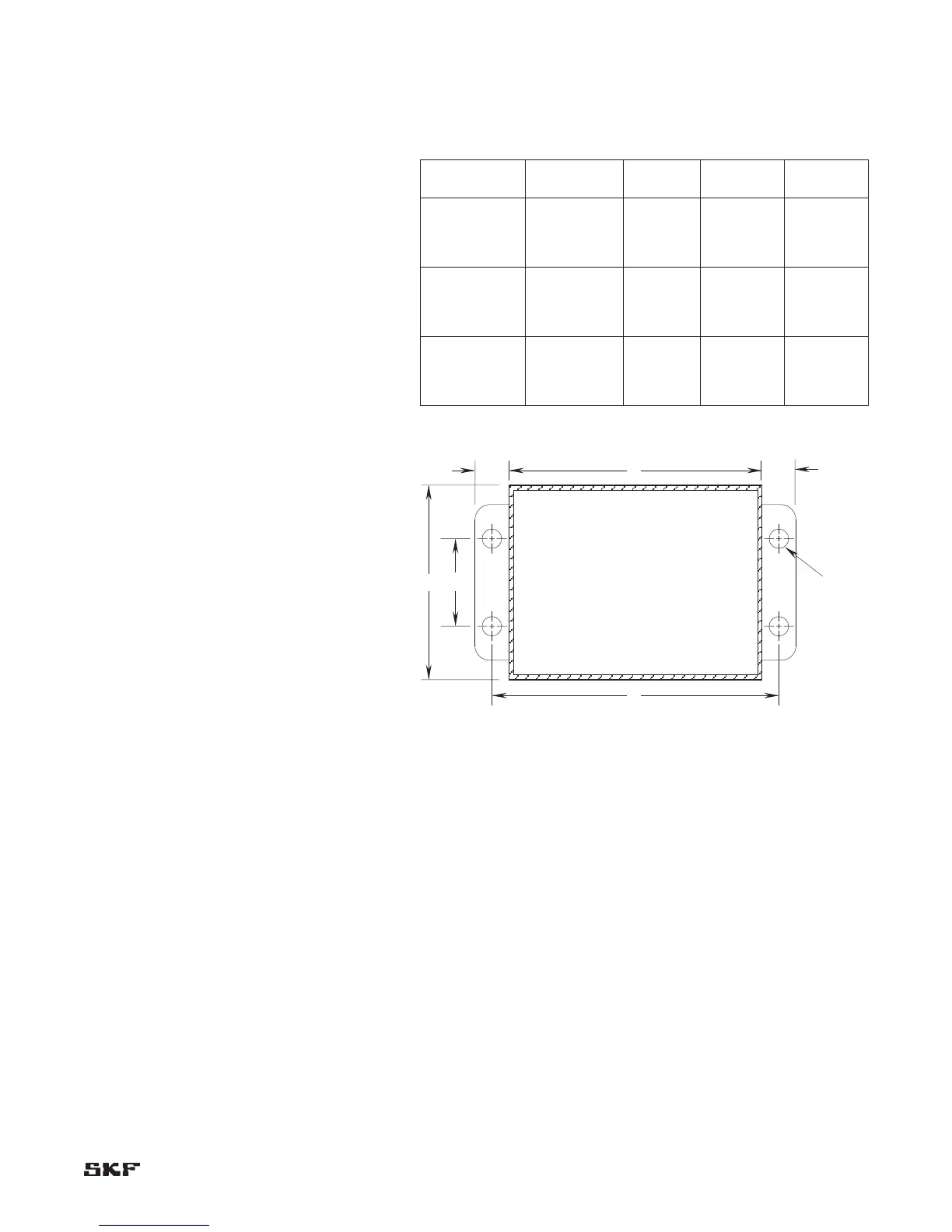

Figure 4-9. Weatherproof housing dimensions.
D
E
B
A
∅
0.75”
(19mm)
0.75”
(19mm)
0.31”
Diamete
r
(8mm)
