- 22 -
951-171-049
Version 02
EN
3. Overview, functional description
K visual monitoring via indicator pin
KN
electric monitoring via
indicator pin and proximity switch
KA
electric monitoring via indicator pin
and proximity switch provided by the
customer
KS
electric monitoring via indicator pin
and limit switch
N/
NP
electric monitoring via factory-mount-
ed proximity switch
The function monitoring of KN,
KA, KS, N and NP requires an
adequate processing of the sig-
nal by a lubrication pump with
control PCB or by an external
control unit.
6)
The respective designation depends on the
type of connection of the piston detector (see
Technical Data of the piston detector)

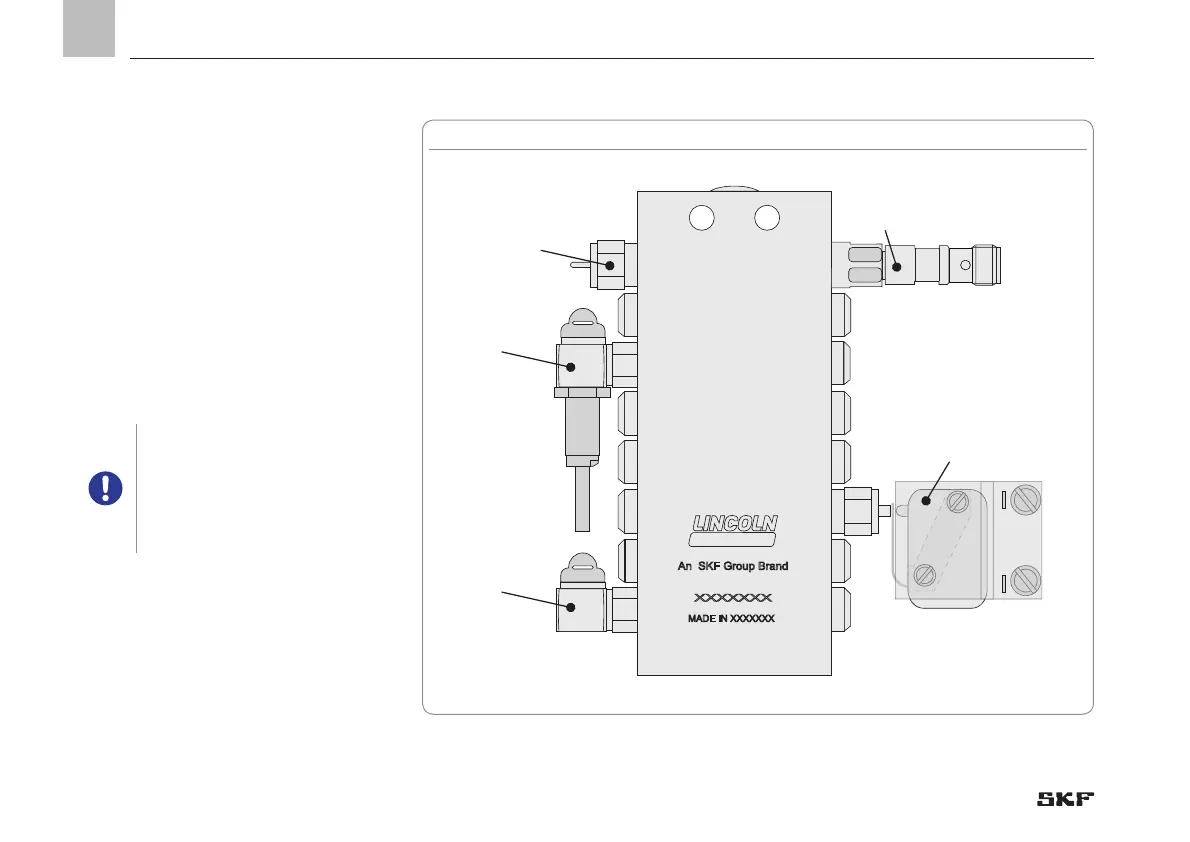

Fig. 5 Function monitoring options (schematic representation)
KN
KA
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
11
9
7
5
3
1
12
10
11
8
4
2
N/NP
6)
15
13
16
14
KS
K
