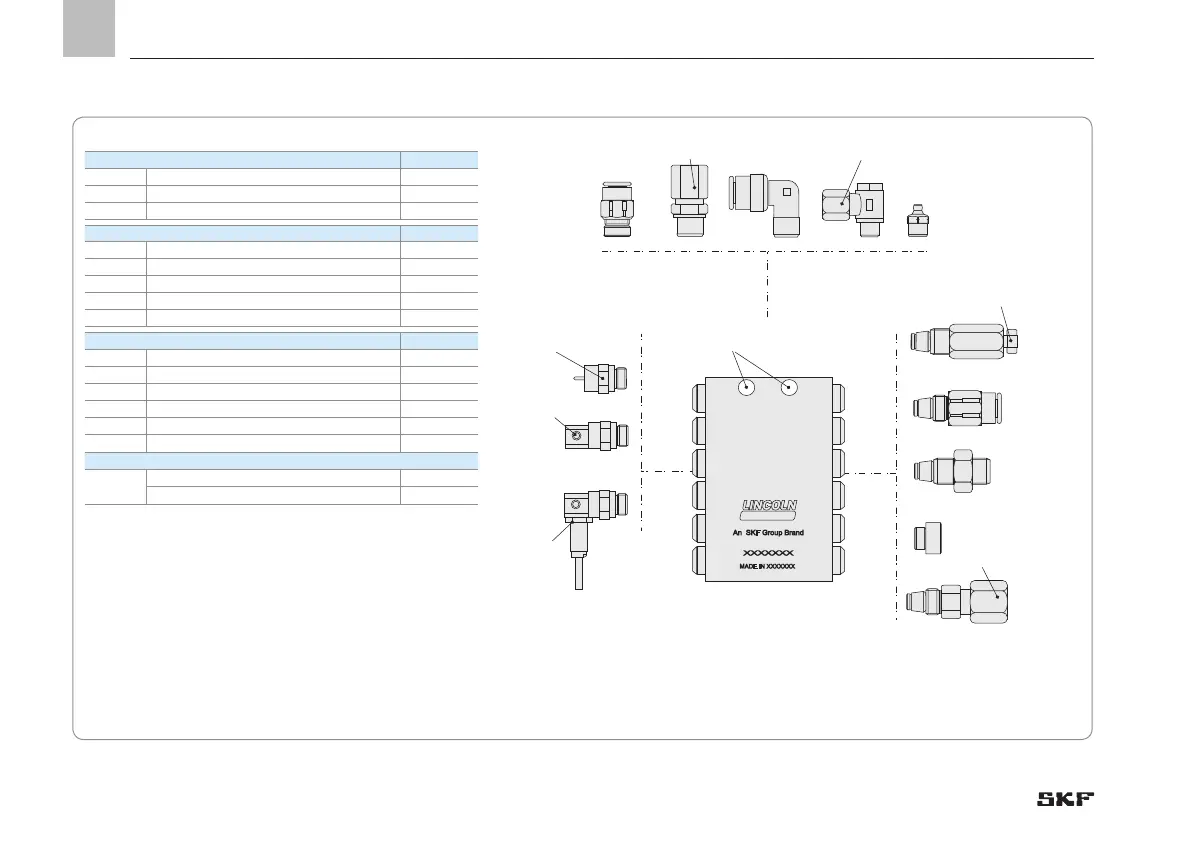

F G H L
A
B
C
D
E
A1 / A2
E1 / E2
K
KA
KN
1
3
2
L1 / L2G1 / G2
M
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
1
2
3
4
5
6
7
8
9
10
11
12
N
Piston level Nm
K 1 10 ± 1.0
KA 1+2 2 ± 0.2
KN 1+2+3 2 ± 0.2
Outlet level Nm
A/C/E 10 ± 1.0
B 8 ± 0.8
A1/E1 for plastic tube 5 ± 0.5
A2/E2 for steel tube 10 ± 1.0
D 6 - 0.5
Inlet level Nm
F/H 10 ± 1.0
G 17 ± 1.7
G1/L1 for plastic tube 10 ± 1.0
G2/L2 for steel tube 11 ± 1.0
L 15 ± 1.5
M Lubrication fitting 14 ± 0.7
Fastening screws
N
M 5 x .... (8.8) dry 6 ± 0.6
M 5 x .... (8.8) oiled 4.5 ± 0.4
Secure all lubrication fittings and all screw fittings without sealing edges with a medium-strength screw lock (e.g. Loctite 274).
*In case of an oiled assembly reduce the stated tightening torques by 20%.
