4. Technical data
- 36 -
951-171-049
Version 02

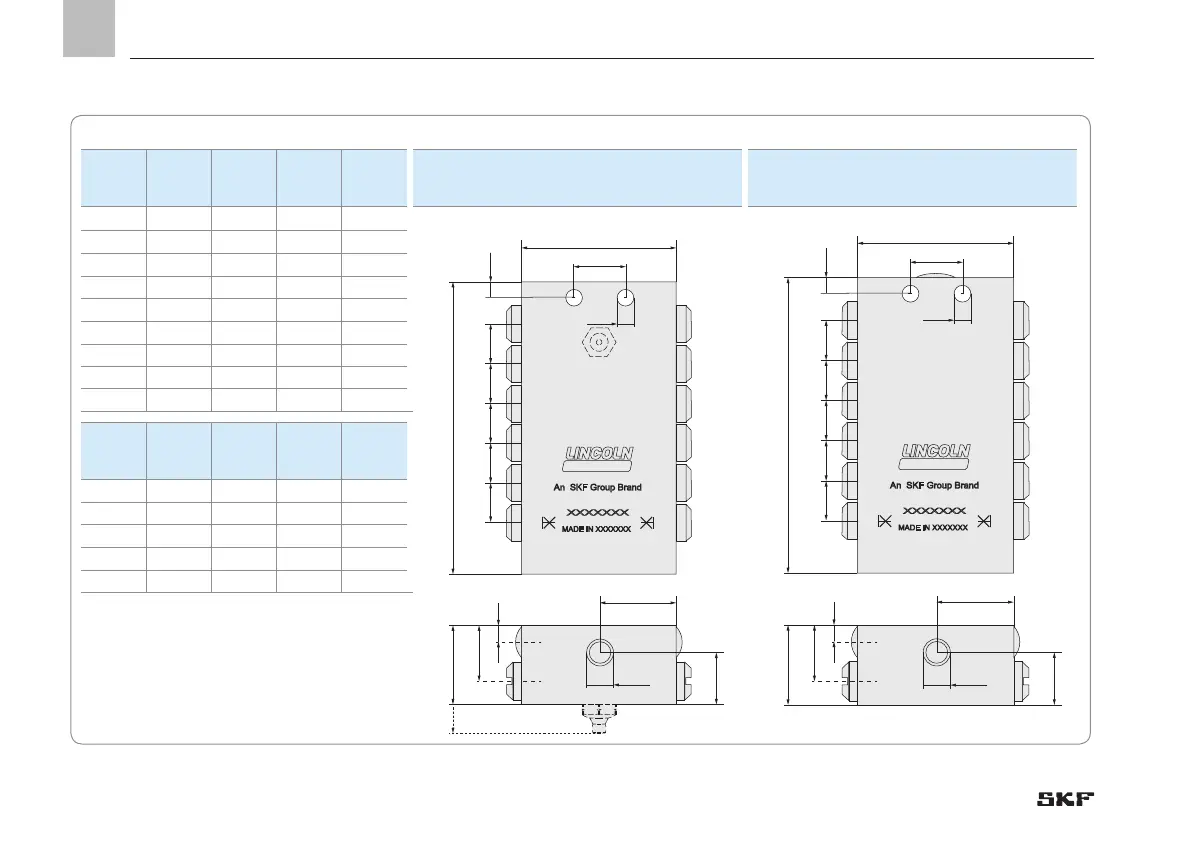

4.1.1 Construction sizes, dimensions and weights SSV/SSV-E/SSVM
SSV/
SSV-E
Outlets
A
Height
(mm)
B
Width
(mm)
C
Depth
(mm)
Weight
(kg)
SSV/SSV-E SSVM
6 60 60 30/45* 0.8
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
11
9
7
5
3
1
12
10
11
8
4
2
A
6,6
20
B
15
15 15
15 15
6
C
22,5
7,5
30
19
G1/8
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
11
9
7
5
3
12
10
11
8
4
A
5,5
20
B
11,5 6
C
18,5
6,5
25
15
G1/8
11,5
11,5
11,5
11,5
1 2
8 75 60 30/45* 1.0
10 90 60 30/45* 1.2
12 105 60 30/45* 1.4
14 120 60 30/45* 1.6
16 135 60 30/45* 1.8
18 150 60 30/45* 2.0
20 165 60 30/45* 2.2
22 180 60 30/45* 2.4
SSVM
Outlets
A
Height
(mm)
B
Width
(mm)
C
Depth
(mm)
Weight
(kg)
6 48.5 50 25 0.4
8 60 50 25 0.5
10 71.5 50 25 0.6
12 83 50 25 0.7
14 210 60 40 3.7
* SSV-E: Depth including emergency lubri-
cation fitting
