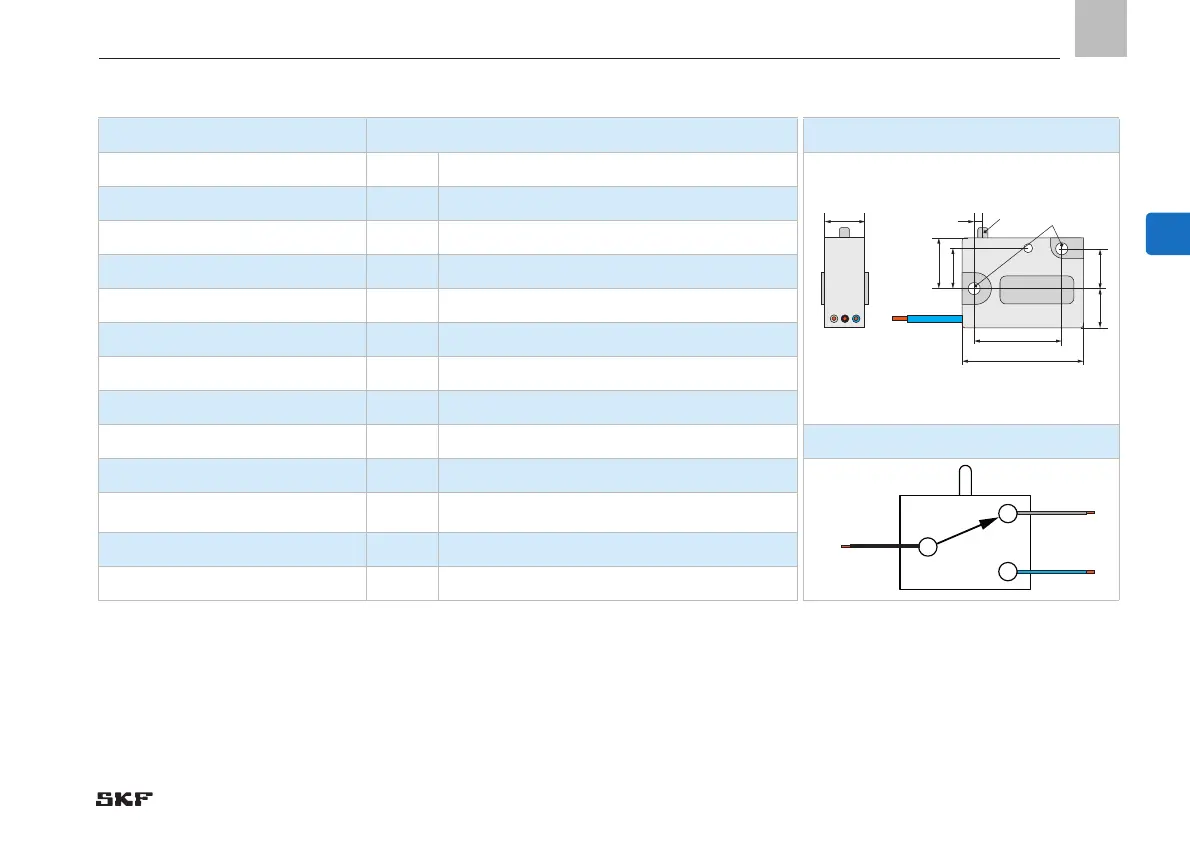

4.9 Technical data limit switch
Part number 236-13281-2 Dimensional drawing
Ambient temperature [°C] -40 ....+85
10,8
31,7
22,2
10,3
2
10,5
13,4
10,5
Ø 2,4
Ø 3,2
Materials Nylon, fibre glass reinforced
Type of actuator Stainless steel plunger sealed with elastomer bellows
Rated contact current [V] 5A at 250 AC
Contact arrangement NO contact SP/ NC contact
Contact material Silver
Degree of protection [IP] 67
Switch actuating force [N] 3.9
Switch detaching force [N] 1.1 Electrical connection
Mechanical durability 10
6
actuations
1
2
4
NC
NO
GY
BU
BK
Common
Connection cable
firmly wired in the housing,
3-core silicone/rubber 2000 mm long
Protective cap Silicone/rubber
Installation laterally to the two mounting bores
