4. Technical data
4
- 41 -
951-171-049
Version 02

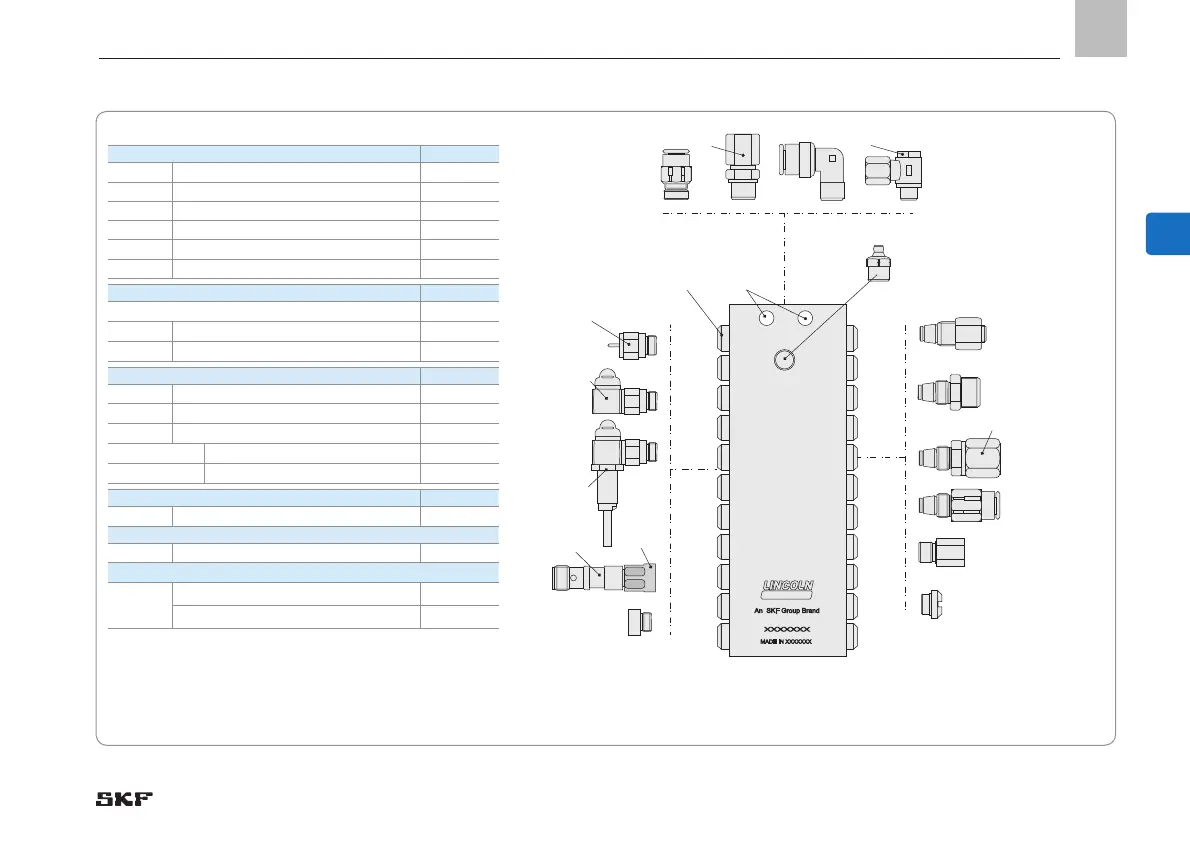

4.2.2 Tightening torques SSVD/SSVD-E
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
C1
G H L M
P
A
B
C
D
E
F
R
M1
H1
K
KA
KN
1
3
2
180
S
N1
N
T
Piston level Nm
K 1 18-2
KA 1 + 2 10 ± 1.0
KN 1 + 2 + 3 7 ± 1.0
N
Adapter to metering device 15 ± 1
NP Piston detector to adapter 7 ± 0.5
P 18-2
Outlet level Nm
A/B/C/D/E 11 ± 0.5
C1 10 ± 0.5
F Closure screw 15 ± 1.5
Inlet level Nm
G/L 10 ± 1.0
H 17 ± 1.7
M 15 ± 1.5
H1/M1 for plastic tube 10 ± 1.0
H1/M1 for steel tube 11 ± 1.0
Emergency lubrication fitting (SSV-E)
R 14 ± 0.7
Metering screws (SSVD)
S 15 ± 1.0
Fastening screws
T
M 6 x .... (8.8) dry 10 ± 1.0
M 6 x .... (8.8) oiled 7.5 ± 0.8
Secure all lubrication fittings and all screw fittings without sealing edges with a medium-strength screw lock (e.g. Loctite 274).
*In case of an oiled assembly reduce the stated tightening torques by 20%.
