SKF SSV Series User Manual

EN
4. Technical data
- 44 -
951-171-049
Version 02

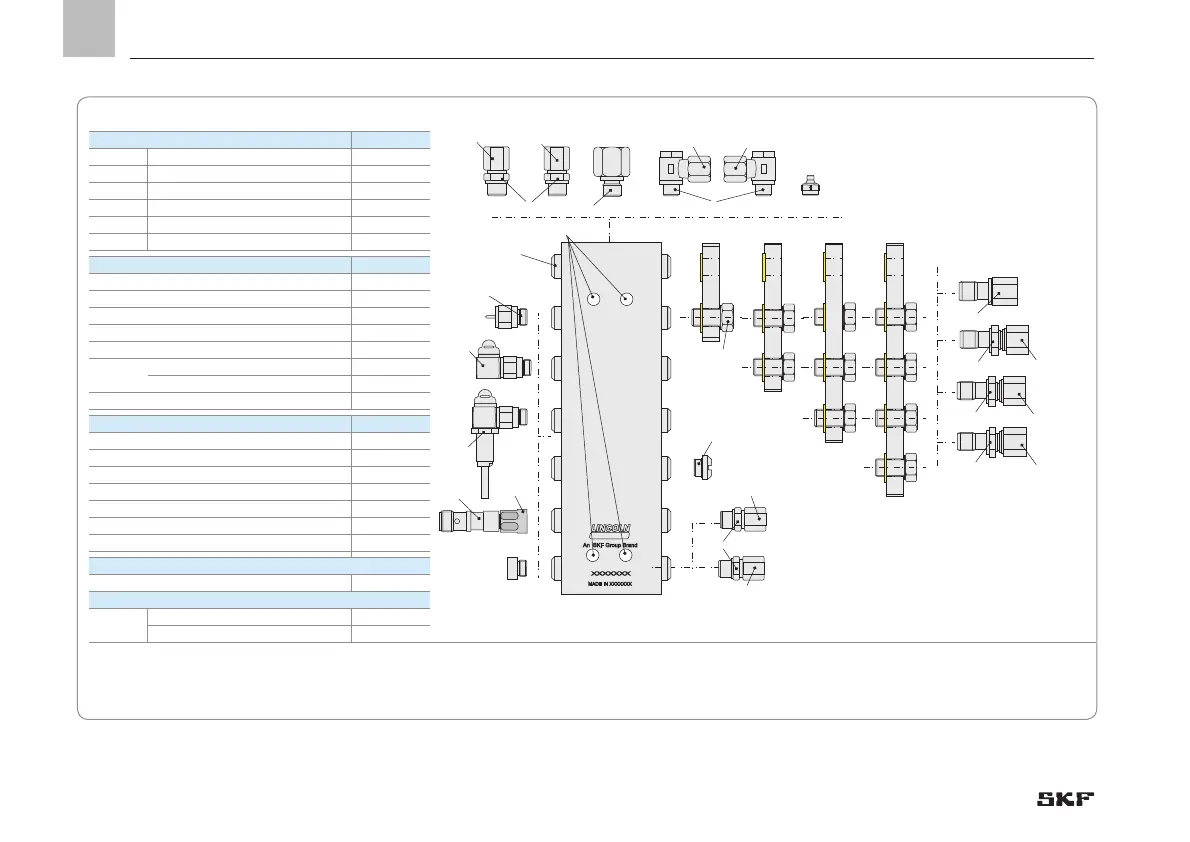

4.4 Tightening torques SSVL, SSVDL
MADE IN XXXXXXX
XXXXXXX
An SKF Group Brand
1
2
3
4
5
6
7
8
9
10
11 12
K
KA
KN
1
3
2
E F
P
A
R
13
14
N1
N
(Ø 8 mm)
(Ø 10 mm)
C
C1 / C2
180
S
R
(Ø 8 mm)
(Ø 10 mm)
(Ø 12 mm)
(G1/4)
(Ø 8 mm) (Ø 10 mm)(Ø 8 mm) (Ø 10 mm)
C3 / C4
B
B
B
B
B1
B2
B3
D
E1 / E2
E3 / E4
G
G1 / G2
G3 / G4
H
T
Piston level Nm
K 1 18-2
KA 1+2 10 ± 1.0
KN 1 +2 +3 7 ± 1.0
N
Adapter to metering device 15 ± 1
NP Piston detector to adapter 7 ± 0.5
P 18-2
Outlet level Nm
A/B 35 + 5
B1/C1 for steel tube Ø 8 x 1 mm 25 + 2.5
C3 for steel tube Ø 8 x 2 mm 30 + 3.0
B2/C2 for steel tube Ø 10 x 1 mm 35 + 3.0
C4 for steel tube Ø 10 x 2 mm 40 + 4.0
B3
for steel tube Ø 12 x 1 mm 45 + 4.0
for steel tube Ø 12 x 1.5 mm 55 + 5.0
C/D 30 ± 3.0
Inlet level Nm
E/F 30 ± 3.0
G 40 ± 4.0
E1/G1 for steel tube Ø 8 x 1 mm 25 + 2.5
E2/G2 for steel tube Ø 8 x 2 mm 30 + 3.0
E3/G3 for steel tube Ø 10 x 1 mm 35 + 3.0
E4/G4 for steel tube Ø 10 x 2 mm 40 + 4.0
H 15 + 2.0
Metering screws (SSVDL only)
S 15 ± 1.5
Fastening screws
T
M 6 x .... (8.8) dry 10 ± 1.0
M 6 x .... (8.8) oiled 7.5 ± 0.8
Secure all lubrication fittings and all screw fittings without sealing edges with a medium-strength screw lock (e.g. Loctite 274).
*In case of an oiled assembly reduce the stated tightening torques by 20%.
