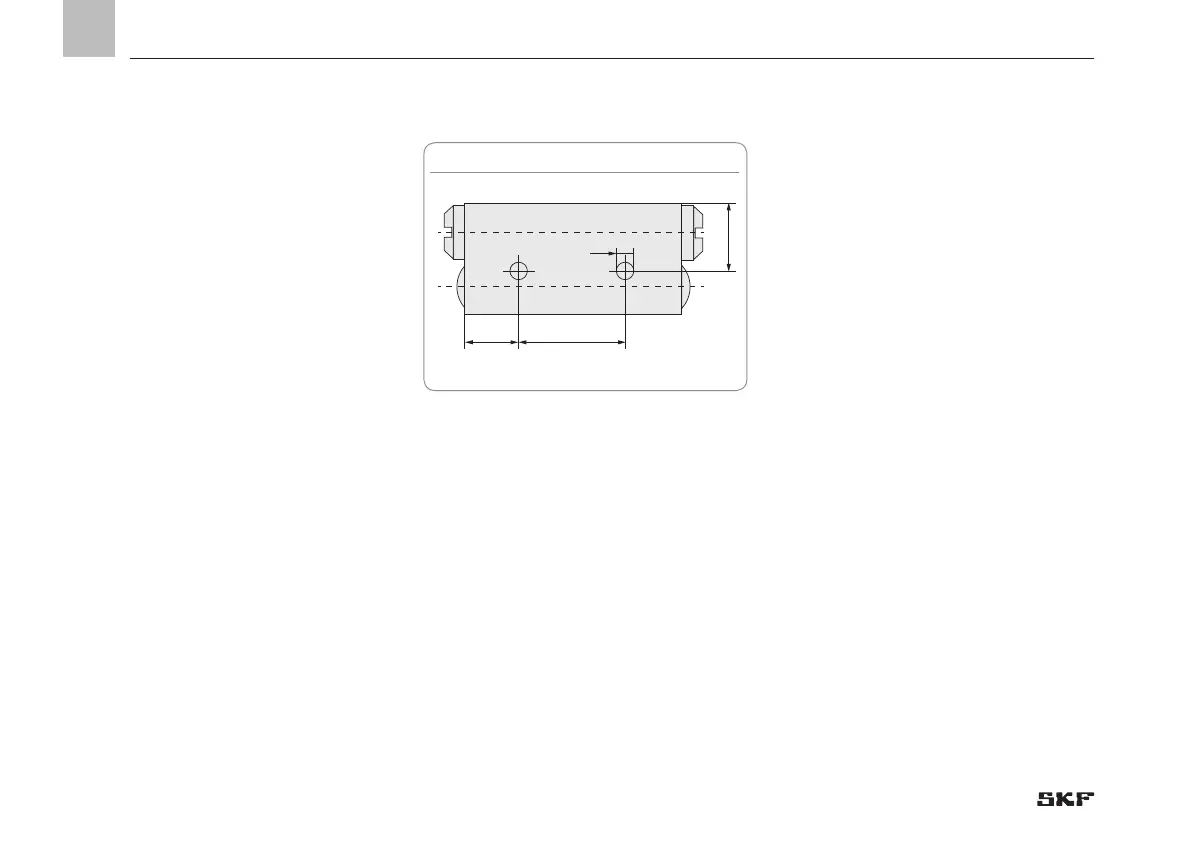

6.7 Optional mounting bracket for SSV,
SSV-E, SSVD and SSVD-E
For metering device models SSV, SSV-E
SSVD and SSVD-E as of construction size
14 there exists the possibility to addition-
ally fix them on their bottom side by a fixing
angle. For this purpose the metering devices
have two threaded bores on the bottom side.
Fixation is done by means of two screws M5
x 8 and the corresponding washers. Tighten-
ing torque corresponding to screw size.
6.8 Venting of the SSV metering devices
and the progressive lubrication
system
• First of all configure the main metering
device completely
• Connect the main lubrication line from
the lubrication pump to the main meter-
ing device
• Let the lubrication pump run until lubri-
cation grease leaks from all open outlets
of the main metering device free from
bubbles
• Mount the lubrication lines filled with
lubrication grease from the main meter-
ing device to the completely configured
secondary metering device
• Let the lubrication pump run until lubri-
cation grease leaks from all open outlets
of the main metering device free from
bubbles
• Repeat the procedure on all other sec-
ondary metering devices
• Remove and dispose of leaked lubricant
