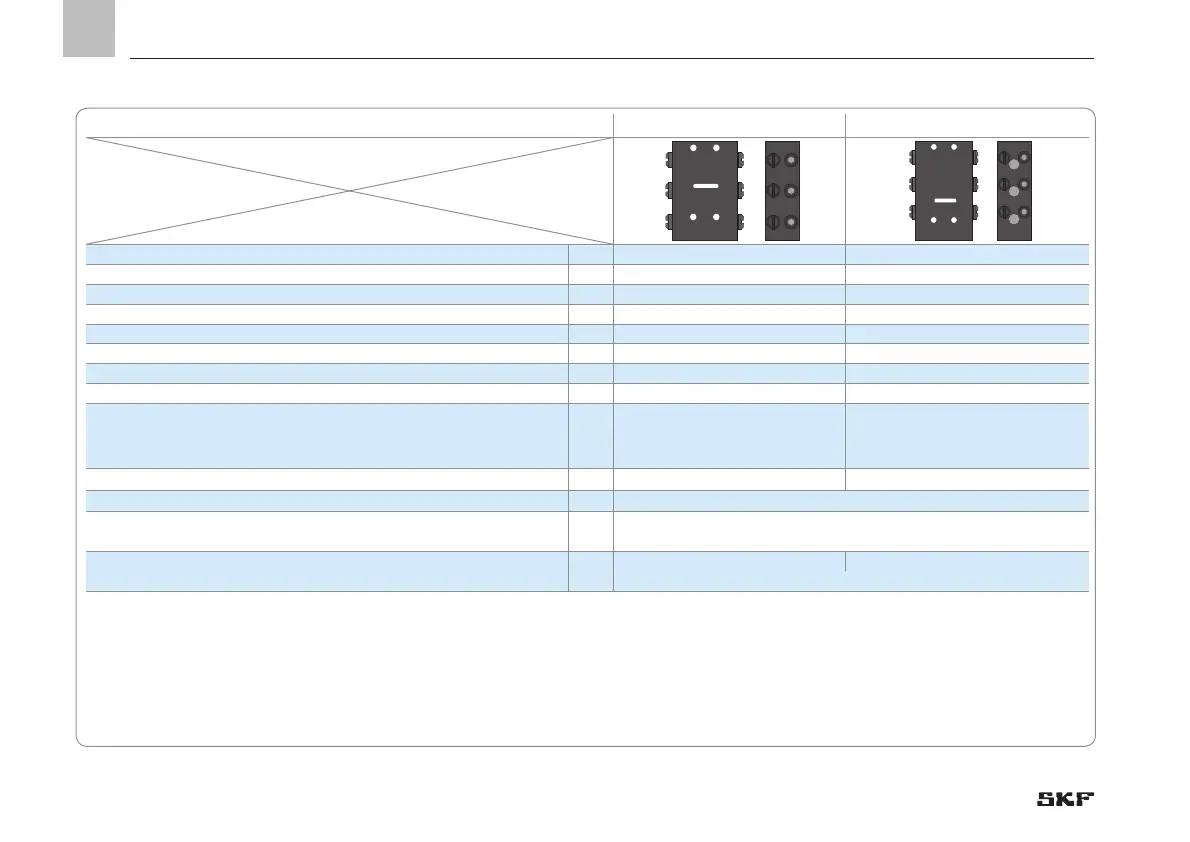

Maximum operating pressure bar 350 350
Minimum operating pressure bar 20 20
5)
Max. differential pressure between 2 outlets bar 100 100
Number of outlets 6-14 6-14
Installation position any any
1)
Inlet thread G1/4 G1/4
Outlet thread R1/4“ R1/4“
Connectable lubrication lines mm Ø8 | Ø 10 | Ø 12 Ø8 | Ø 10 | Ø 12
2)
Metering volume per stroke and outlet 0.2 cm
3
The metering volume is adjusted via
metering screws and amounts to a
maximum of 1.8 cm³ per stroke
Possible material versions Steel, black zinc-coated Steel, black zinc-coated
3)
Function monitoring K | KA | KN | N | NP
Suitable lubrication grease consistencies Lubrication greases up to and including NLGI 2
Suitable lubrication oil viscosities Lubrication oils of at least 40 mm²/s at ambient temperature
4)
Ambient temperature range without electrical components
°C
-25 to + 70 -25 to + 70
4)
Ambient temperature range with electrical components see Technical data of the respective electrical component
1)
Installation position limited by the emergency lubrication fitting.
2)
When using indicator pins, the output volume of the outlets equipped with indicator pins is reduced by about 10%.
3)
Also see chapter Function monitoring
4)
The stated ambient temperature range assumes the transportability of the lubricant applied and the use of fittings and lubrication lines suitable for the
respective existing ambient temperature.
5)
The maximum differential pressure must not be exceeded and can be reduced by selecting the right length and diametre of the line.
