EN
4. Technical data
4
- 45 -
951-171-049
Version 02

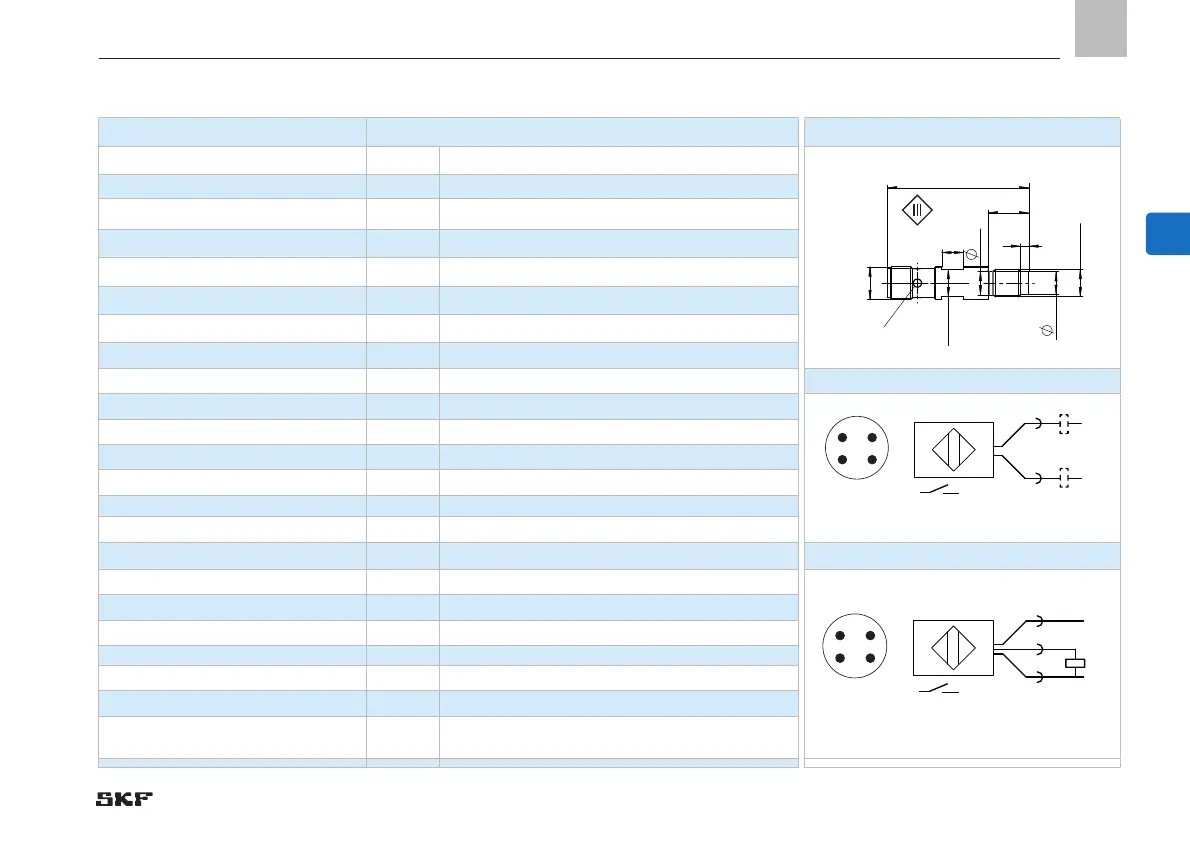

4.5 Technical data of the universal piston detector
Part number 234-13163-9 Dimensional drawing
Ambient temperature [°C] -40 ....+85
8,5
15
M10x0,8
52
SW10
M12x1
8
8,7
3
LED
Materials Sensor surface: 1.4404; housing = 1.4016, plug = PEI
Type of installation Flush mounted in the adapter
Switching status display LED yellow (lit during damping)
Electrical connection M12x1 connector, gold-plated contacts
Rated operating distance [mm] 2.6 Delivered condition
Secured switching distance (Sr) [mm] 2.6 ±10%
Switching distance after 3x 0....4,2 mm stroke [mm] 3.3 ±20% adjusted
Hysteresis [% of Sr] ≤ 25 %, adjusted 2-wire DC PNP/NPN
Switch point/reproducibility [% of Sr] ±10 %
1
4
2
3
1
2/4
L+
L-
N
Admissible operating pressure [bar] like the one of the metering device
Operating voltage [V] 10-36 DC, supply class 2 according to cULus
Current consumption [mA] < 5
Reverse polarity protection YES
Output function Normally open contact
Voltage drop [V] 3.5 3-wire DC PNP
Minimum load current [mA] 5
1
4
2
3
1
2/4
L+
L-
3
NP
Residual current [mA] < 0.8
Current rating [mA] 100
Short-circuit proof | Overload proof YES | YES
Switching frequency [Hz] 10, for damping area of Ø 4 mm up to 7 Hz
Tightening torques [Nm] See indications on tightening torques of the metering devices
Degree of protection [IP]
65/68/69K
with properly screwed cable socket
