SKF SSV Series User Manual

EN
6. Installation
- 54 -
951-171-049
Version 02
6.4.2 Metering devices with bypass
bores
Metering devices with bypass bores are pref-
erably used when an impair number of out-
lets is needed. In case of metering devices
with bypass bores outlet numbers 1 and
2 are internally cross-ported (drilled with
each other). By doing so and different from
metering devices without bypass bores the
output volume on metering device level 1-2
can be doubled at the opposite open outlet
by closing one outlet (1 or 2).
Metering devices with bypass bore are
marked with a double arrow.

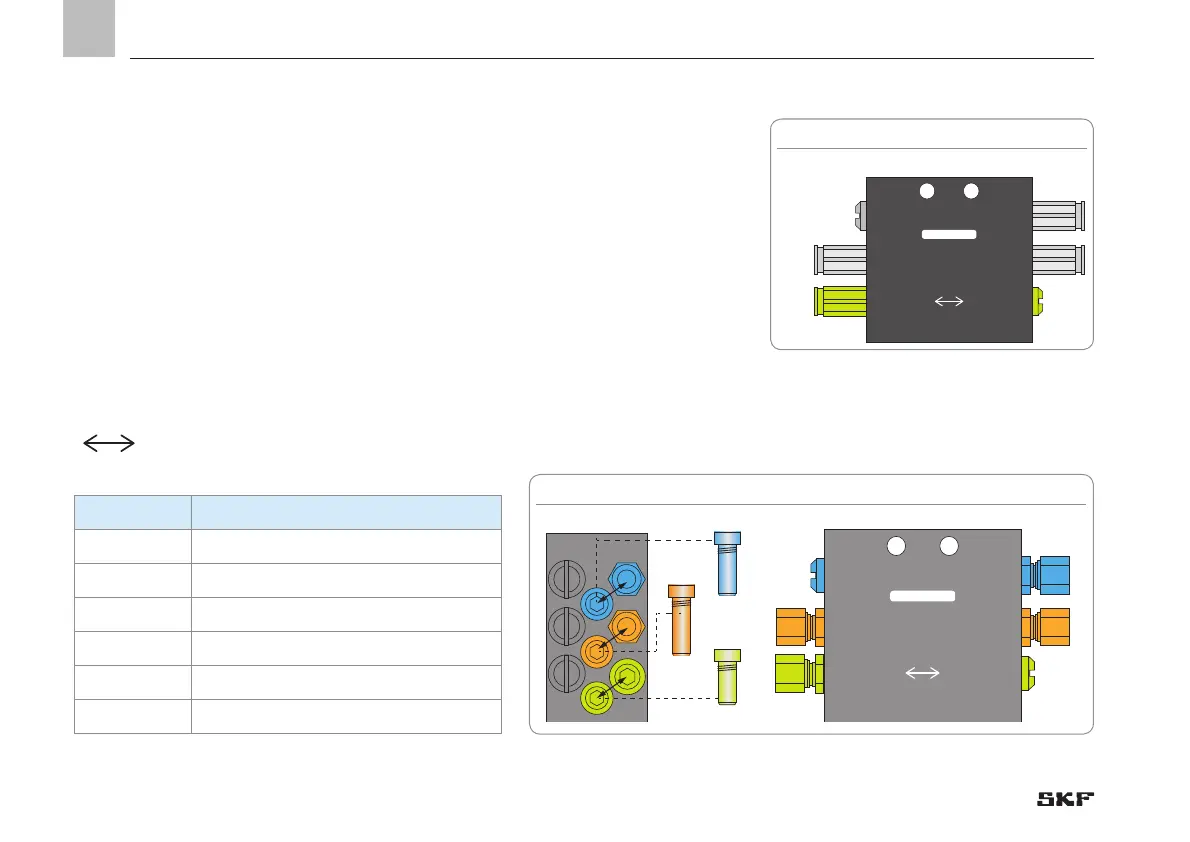

Fig. 19 Example SSV
6
4
21
3
5
MADE IN XXXXXXX
XXXXXXX
LINCOLN
An SKF Group Brand
2 x
2 x
Example SSVD
Outlet: Metered volume
6 [open] 0.8 cm³
5 [closed] 0.8 cm³ to outlet 3
4 [open] 0.6 cm³
3 [open] 1.4 cm³ (0.6 cm³ + 0.8 cm³ from outlet 5)
2 [closed] 1.0 cm³ to outlet 1
1 [open] 2.0 cm³ (1.0 cm³ + 1.0 cm³ from outlet 2)
Fig. 20 Example SSVD
6
43
5
LINCOLN
An SKF Group Brand
XXXXXXX
21
80
60
6
4
2
100
Example SSV
Outlets 5 and 3 internally cross-ported by a
closure screw:
è Double lubricant volume on the same
side at the next lower open outlet
Outlets 1 and 2 drilled with each other, outlet
2 closed:
è Double lubricant volume at the opposite
side at outlet 1.
