EN
4. Technical data
- 46 -
951-171-049
Version 02

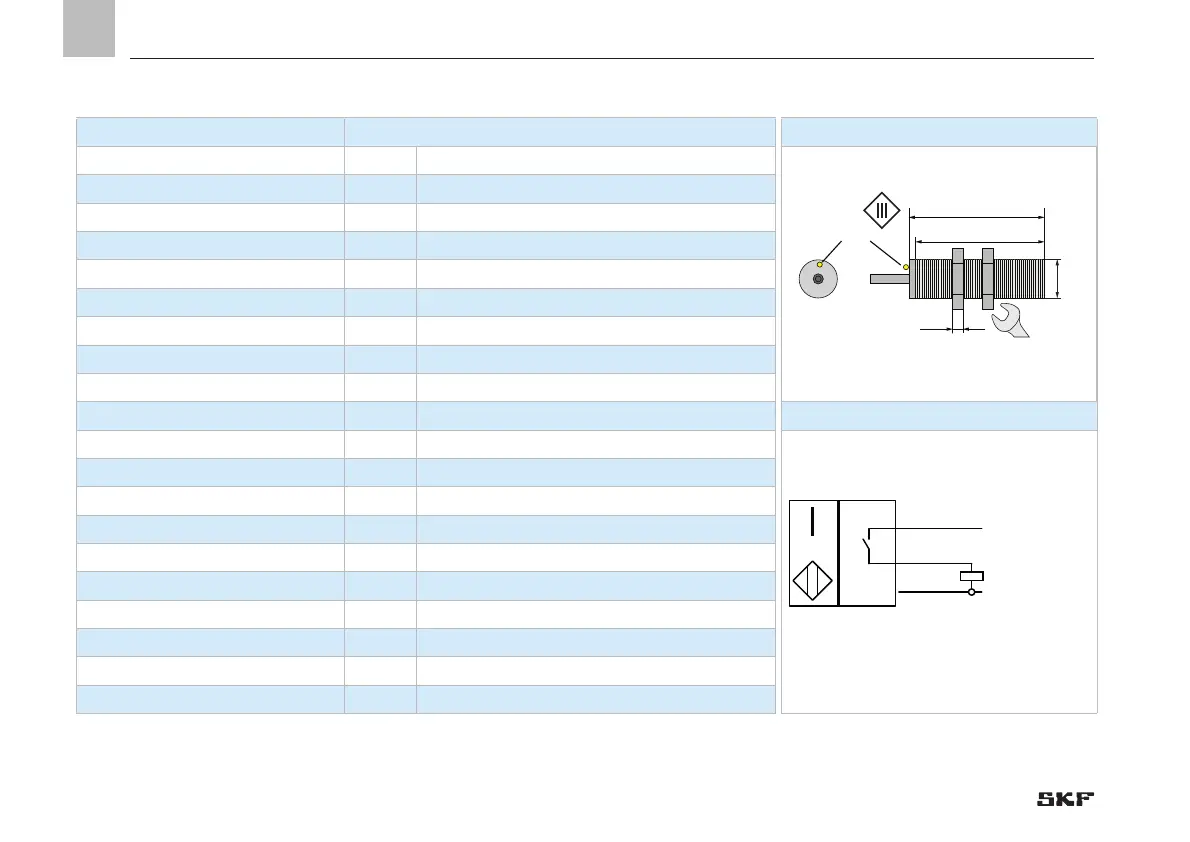

4.6 Technical data proximity switch DC version
Part number 234-10812-8 Dimensional drawing
Ambient temperature [°C] -25 ....+70
27
30
LED
4
17
M12 x 1
Materials Housing = Nickel-plated brass, active area = PBT
Type of installation flush
Type of connection | Cable diameter [mm] 2000 mm PVC cable | 3.2 mm
Cable version| Core cross-section [mm
2
] PBT | 3 x 0.14
Switching status display LED yellow (lit during damping)
Rated operating distance [mm] 2
Secured switching distance [mm] 0-1.62
Reduction factor r
Al
| r
Cu
| R
V2A
[mm] 0.3 | 0.2 | 0.7
Hysteresis [% of Sr] typ. 10 %
Electrical connection
Operating voltage U
B
[V] 10-30 DC
L+
L-
1/BN
4/BK
3/BU
Operating current [mA] 0-200
Reverse polarity protection YES
Output function Normally open contact PNP
Voltage drop [V] ≤ 3
No-load current [mA] ≤ 15
Residual current [mA] 0 - 0.5 mA typ. 0.1 µA at 25 °C
Short-circuit protection Clocking
Switching frequency [Hz] 0-800
Degree of protection [IP] 67
