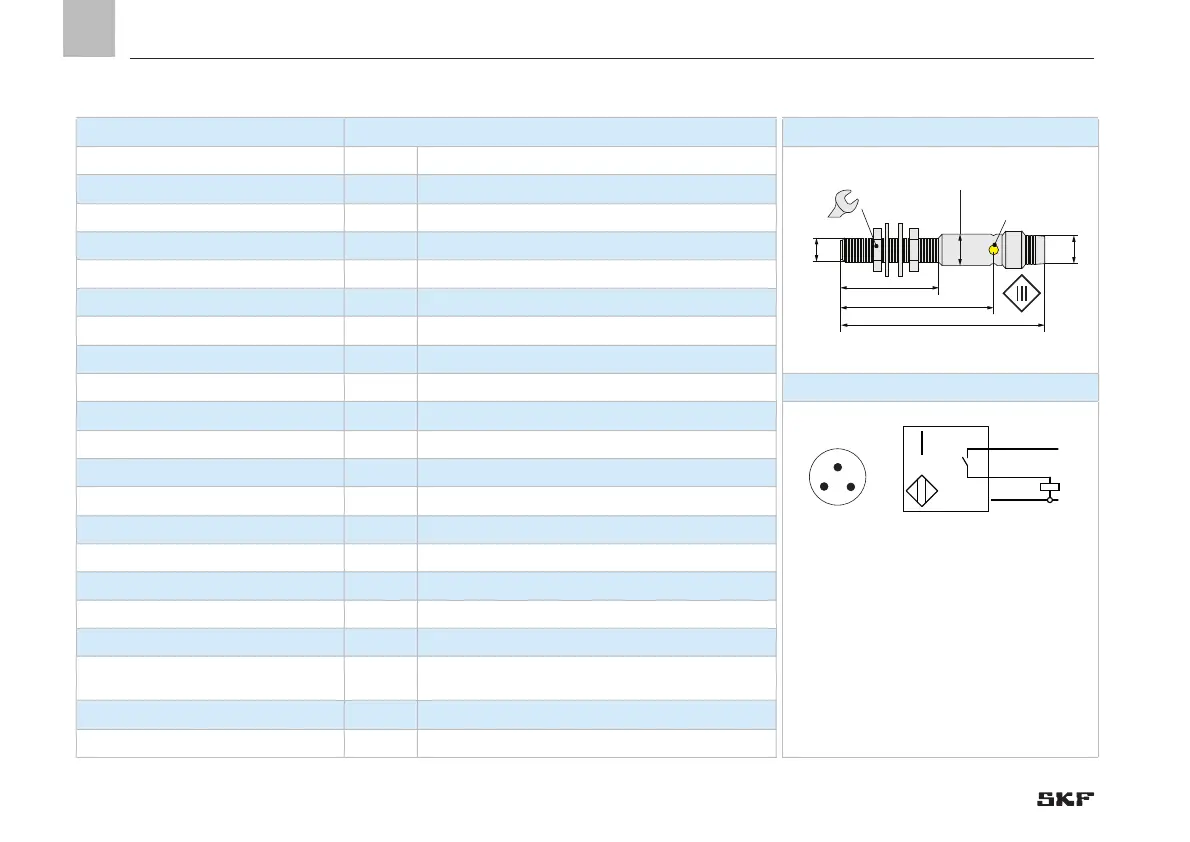

4.8 Technical data proximity switch DC version for SSVM
Part number 234-10757-4 Dimensional drawing
Ambient temperature [°C] -25 ....+70
LED
41
7
M8 x 0,5
32,2
M5 x 0,5
Ø 6,6
Materials Housing = Stainless steel, active area = POM
Type of installation flush
Switching status display LED yellow (lit during damping)
Electrical connection Plug-in connector, 3-wire
Rated voltage [V] 24 DC
Rated operating current [mA] 100
Readiness delay [ms] 25
Hysteresis max. 15 % Electrical connection
Repeatability 5 %
1
4
3
L+
L-
1/BN
4/BK
3/BU
Operating voltage [V] 6-30 DC
Damped no-load current [mA] 10
Secured switching distance [mm] 0 - 0.65
Output function Normally-open contact (NO)/PNP
Voltage drop [V] 3
Nominal switching distance [mm] 0.8
Residual current [µA] max. 80
Residual ripple [%] 10
Protected against reverse polarity |
Short-circuit proof
YES | YES
Switching frequency [Hz] 3000
Degree of protection [IP] 67
