3. Overview, functional description

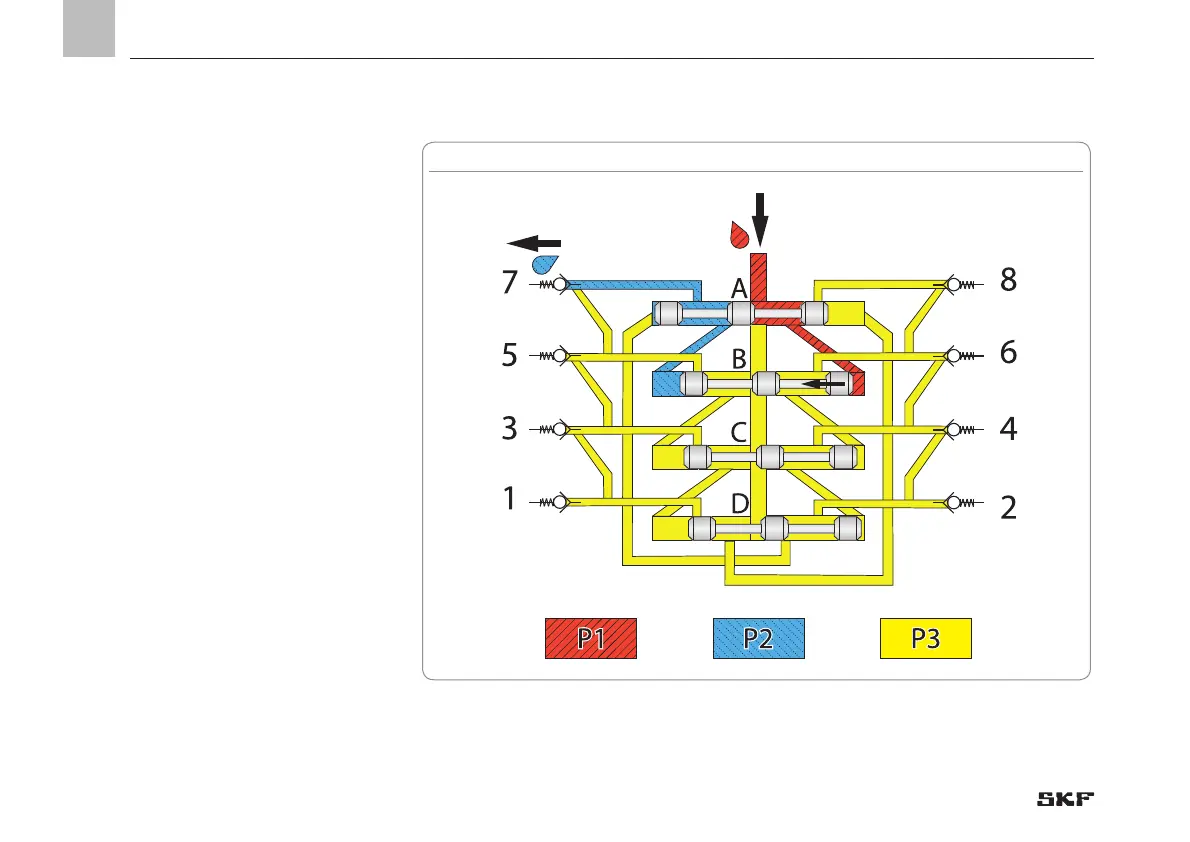

Fig. 7 Course of the lubricant illustrated by means of an SSV-8 metering device Stage 2
E
Phase 2
When piston A reaches its left end position,
it opens the connection duct to the right end
of piston B. As a consequence lubricant P1
supplied by the pump flows to the right end
of piston B and piston B moves to its left end
position. By doing so the lubricant volume
P2 corresponding to the piston stroke is dis-
placed to outlet 7.
