SKF SSV Series User Manual

EN
4. Technical data
4
- 29 -
951-171-049
Version 02

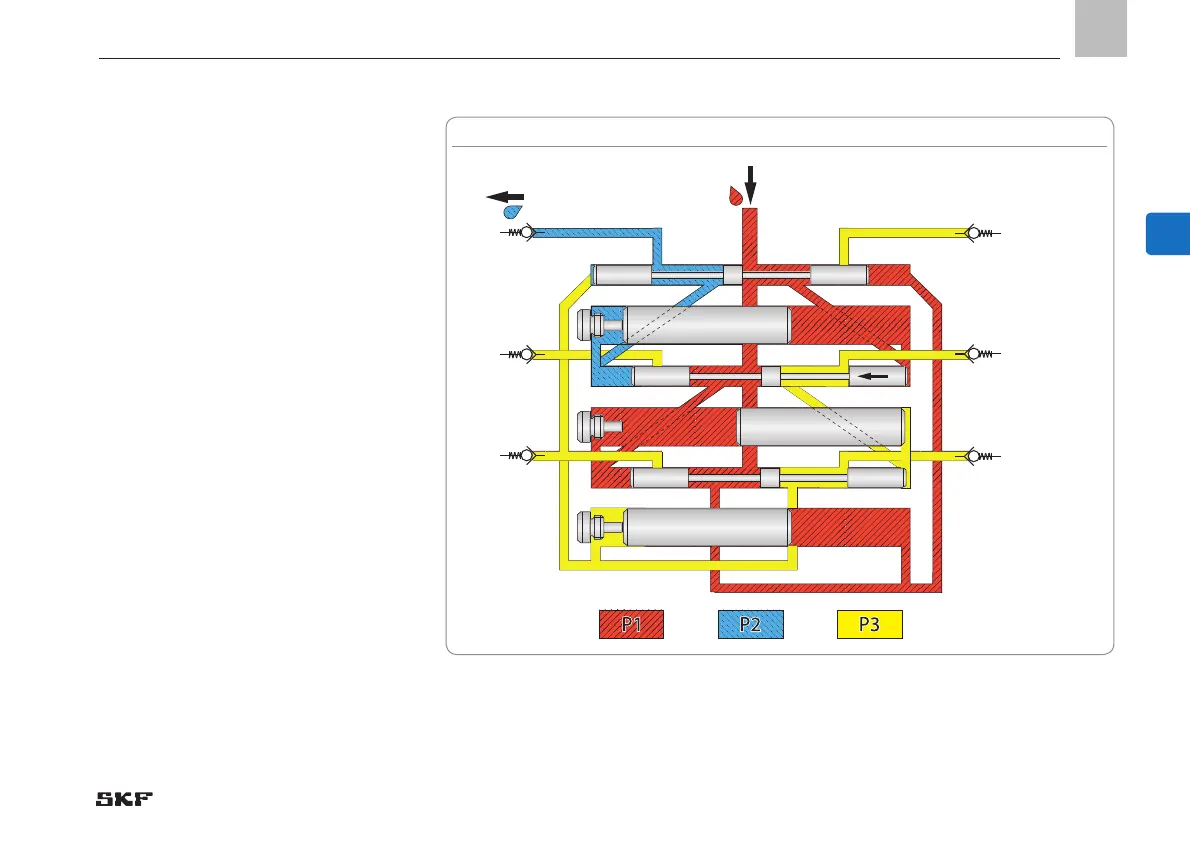

Fig. 12 Course of the lubricant illustrated by means of an SSVD-6 metering device Stage 2
B1
B2
A2
A1
C2
C1
2
4
6
1
3
5
E
Phase 2
As soon as metering piston B1 reaches its
left end position, the pressurized lubricant
P2 moves the control piston B2 leftward
and additionally displaces the lubricant in
front of control piston B2 to outlet 6.
The total output of outlet 6 corresponds to
the output of metering piston B1 and con-
trol piston B2.
