Section 05 TRANSMISSION
Subsection 08 (GEARBOX)
05-08-6

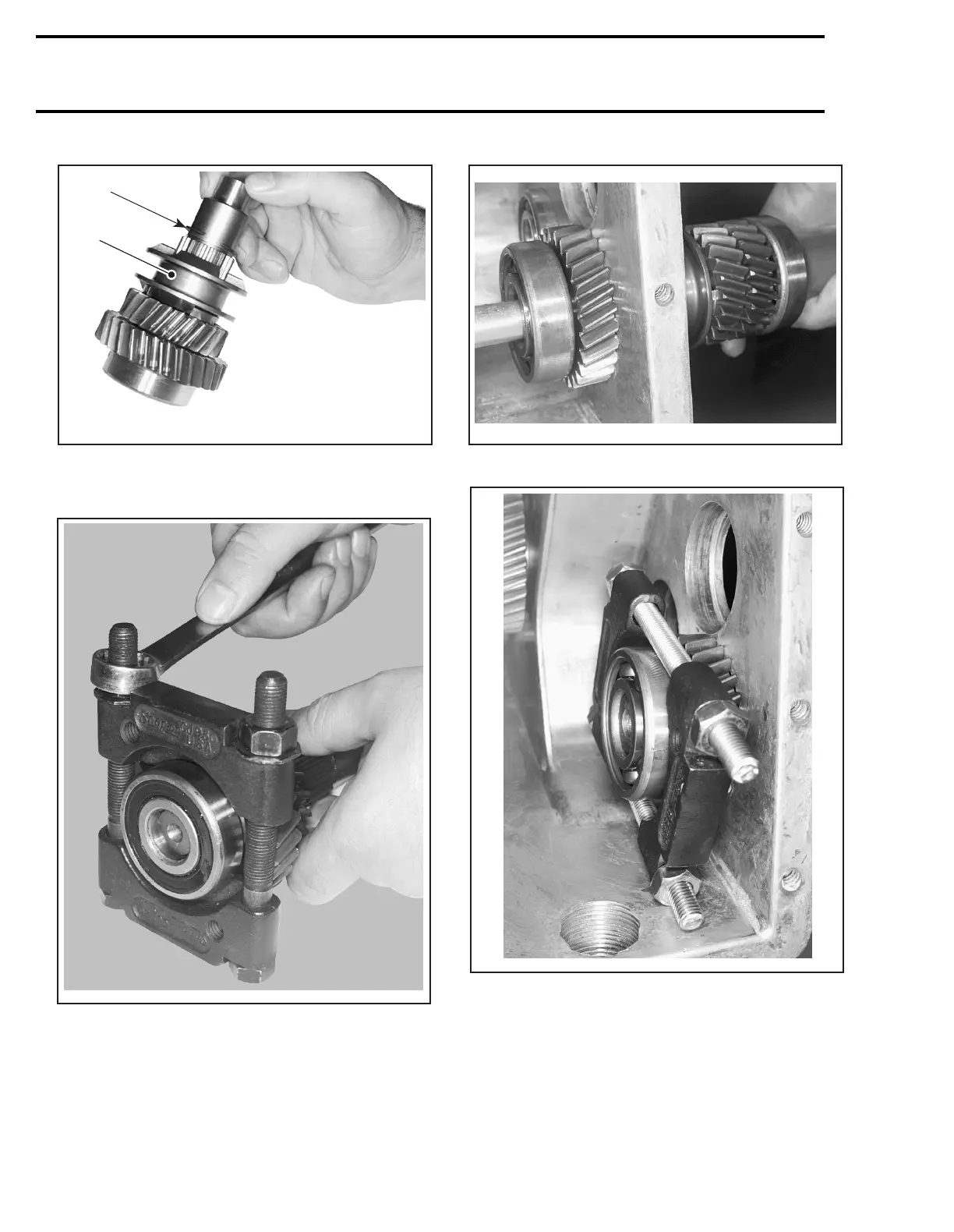

1. Circlip
2. Sliding sleeve
Use a puller to extract bearing
no. 19
.
Remove brake shaft gears.
Unbolt driven pulley shaft screw
no. 11
and re-
move washer.
Push driven pulley shaft
no. 15
out of gearbox un-
til its LH gear
no. 14
is against gearbox inner wall.
Use a puller to extract bearing
no. 12
.
Remove circlip then, gear
no. 14
. Now driven pul-
ley shaft can be pulled out from gearbox.
Remove sliding sleeve taking care not to lose balls
no. 18
and spring
no. 16
.
A29D11A
1
2
A29D12A
A29D13A
A29D14A
