1. Sliding sleeve
2. Spring
3. Balls

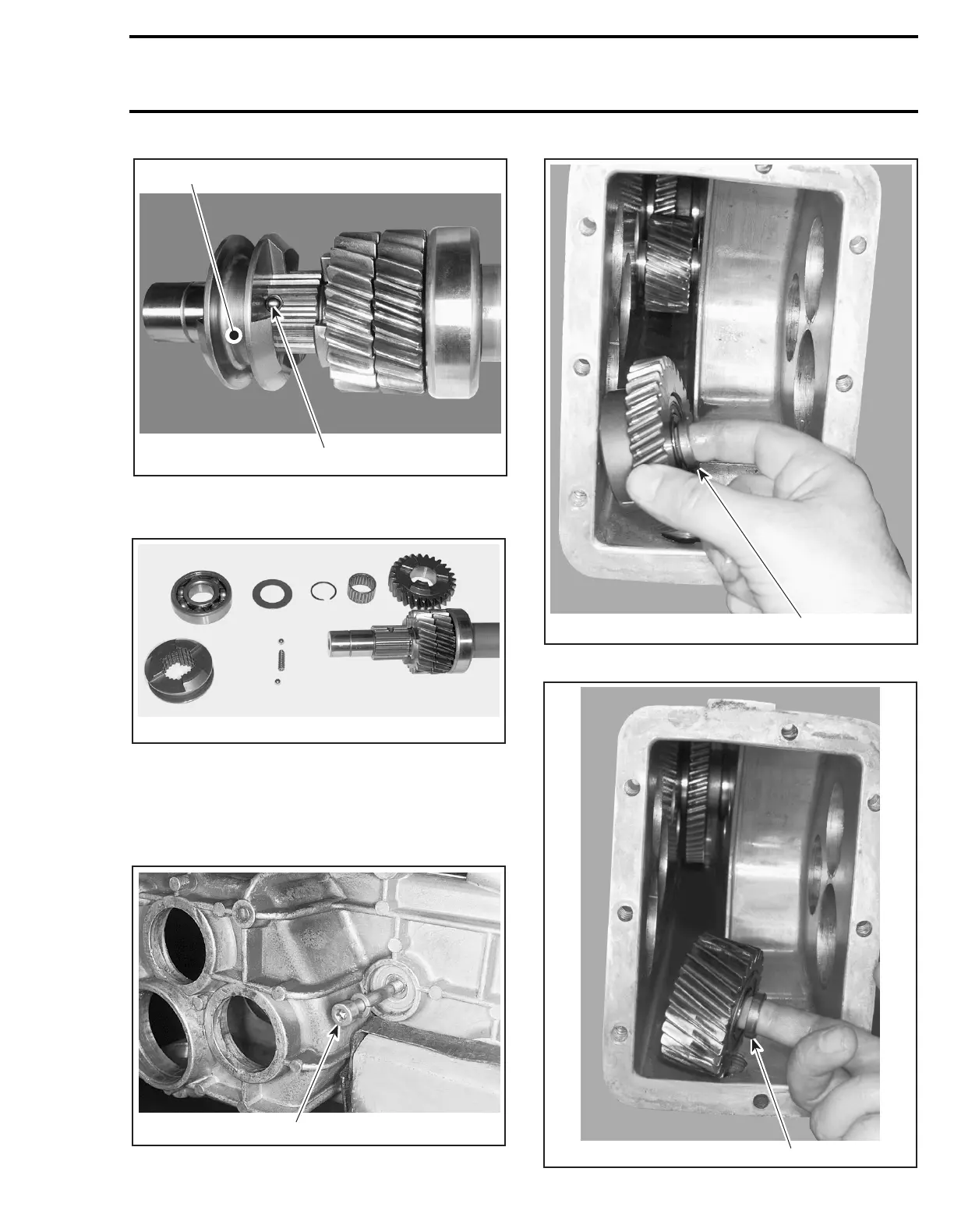

DRIVEN PULLEY SHAFT COMPONENTS
Remove screws
no. 16
from intermediate shafts
no. 30
.
Fasten a long M8 x 1.25 screw in axle end then
drive it out, beginning with top one.
Remove intermediate gears and spacers.
1. Spacer
1. Spacer
