Ski-Doo Summit 583 1998 - Page 285

Section 07 REAR SUSPENSION
Subsection 03 (FORMULA Z 670 SUSPENSION)
07-03-4

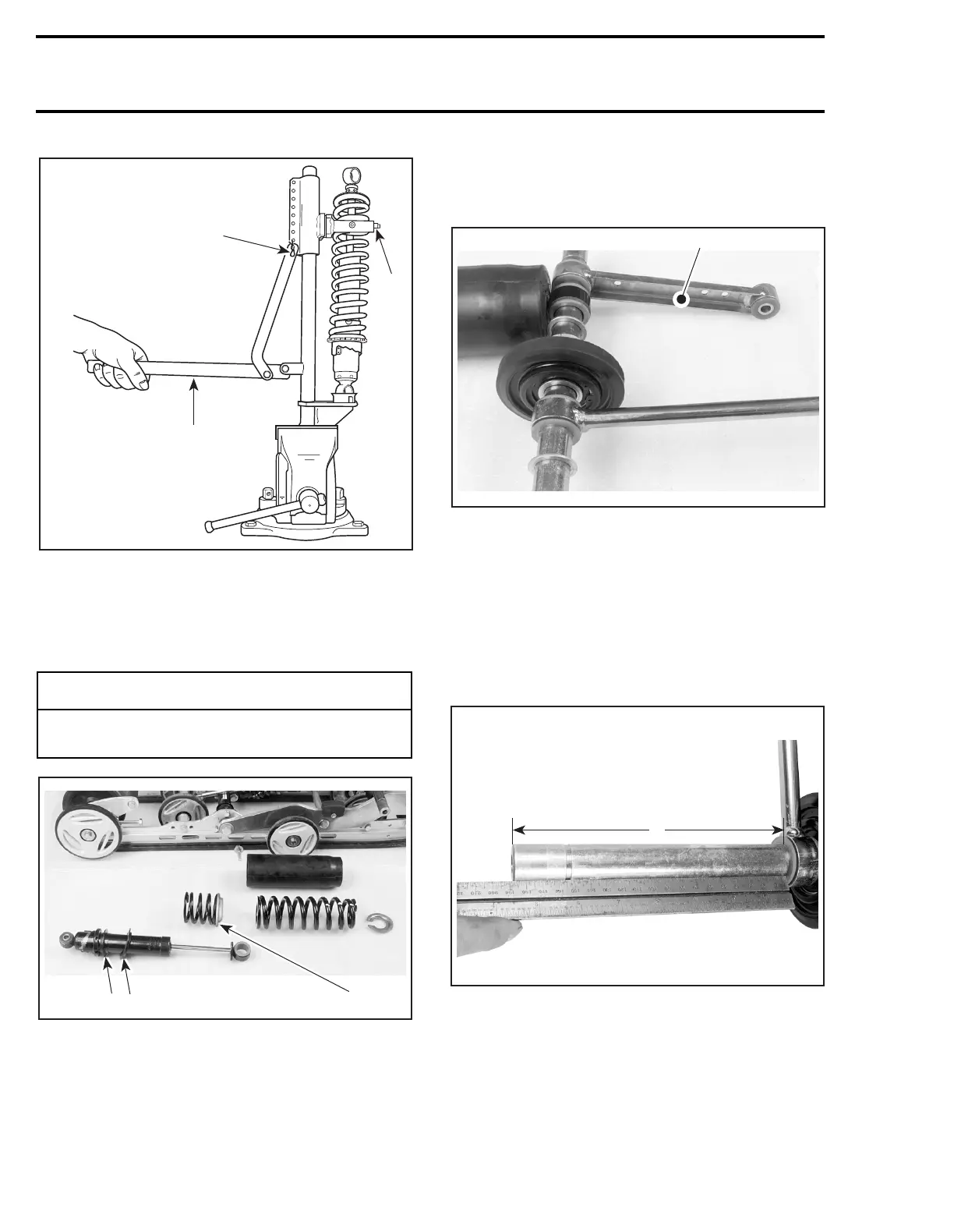

TYPICAL
1. Clevis pin
2. Bar
3. Handle horizontal
When reassembly note position of bottom spac-
ers and mid spacer.
1. Metal spacer
2. Plastic spacer
3. THIS SIDE UP mention
4, Top Idler Wheel Axle
When assembling, the hollow side of small torque
rod
no. 6
must face inner side.
1. Hollow side
Note position of all 6 friction washers. There is
one each side of long tie rod
no. 3
. One goes be-
tween left hand side shock eyelet and inner spac-
er. Another goes between small torque rod and
outer spacer. There is one each side of right hand
side shock eyelet.
When reassembling, mount long torque rod
no. 3
at 188 mm (7-13/32 in) from axle end.
A. 188 mm (7-13/32 in)
-
CAUTION
Install mid spacer with its mention THIS
SIDE UP facing upward.
1
A01B4LA
2
3
A03F33A
1
2
3
A03F34A
1
A03F35A
A
