80
SJ20
238886ABA
Section 5 – Procedures

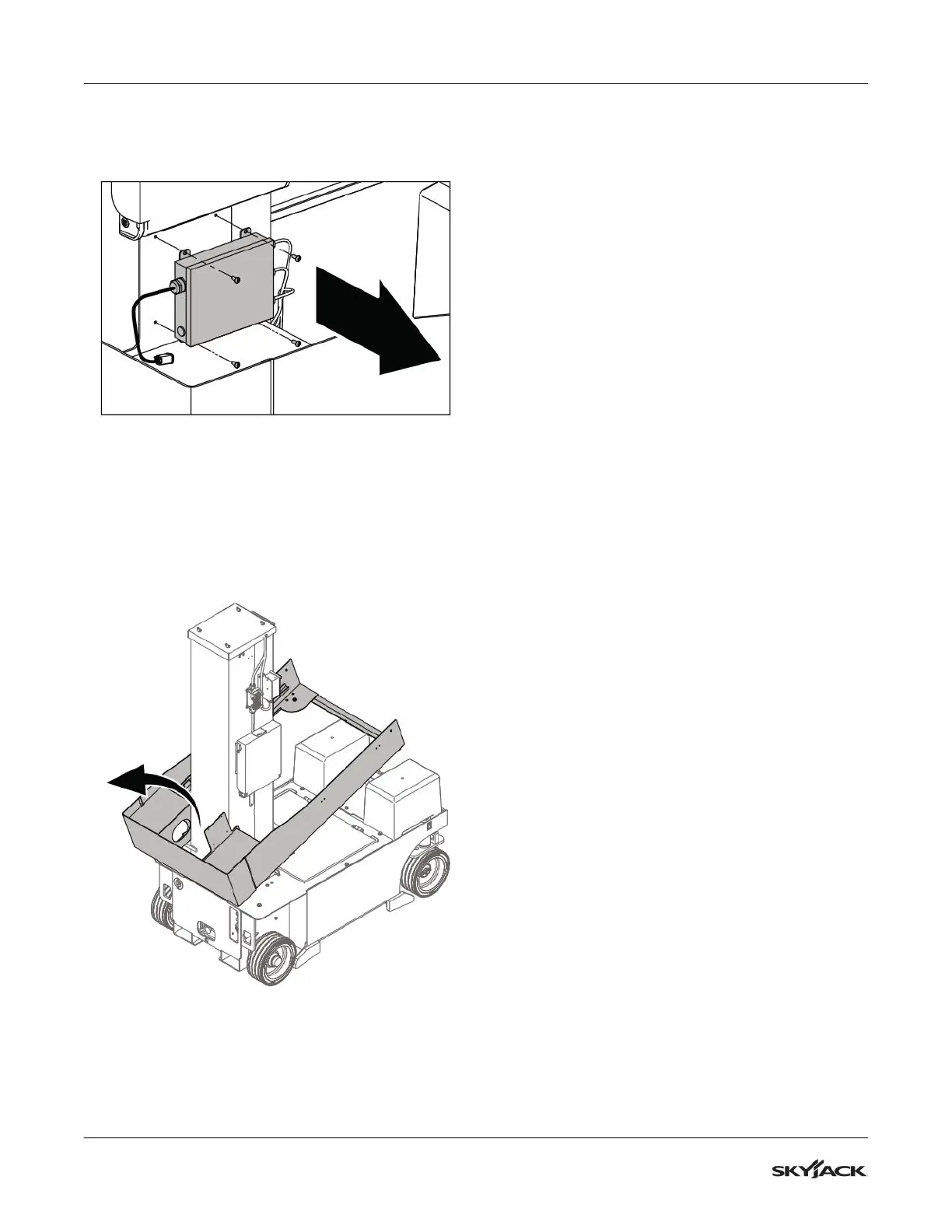

Platform Removal
13.
Remove and set aside the hardware from the
junction box.
14.
Put the junction box on the chassis.
15.
Tilt the lower platform backwards.
16.
Use an appropriate lifting device or a second
person to help remove the lower platform.
