104
SJ6826 RT, SJ6832 RT
221587ABA

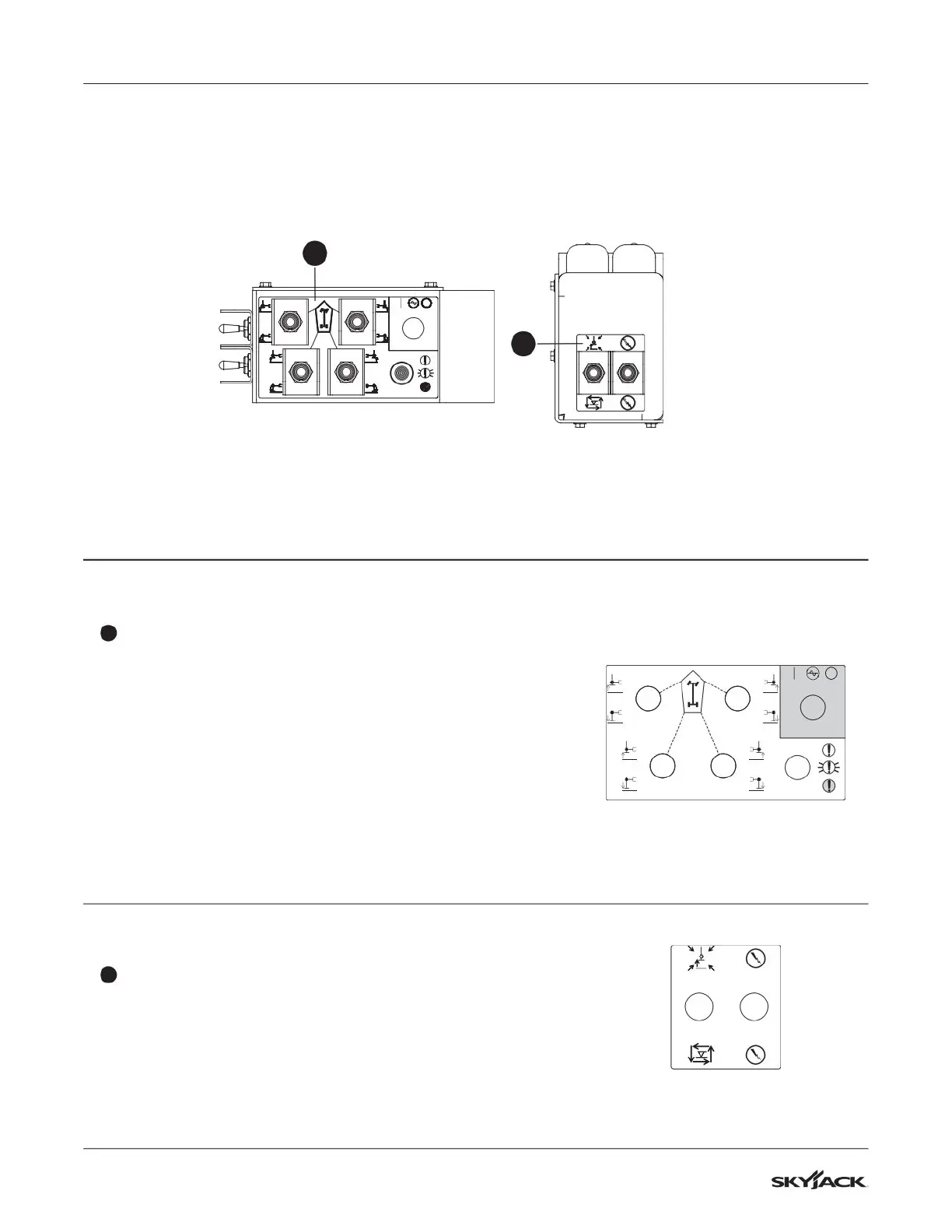

Section 8 – Labels Outrigger and generator control console (optional equipment)
Description Label Pictorial
1
Manual outrigger control console with generator
▪
Select retract or extend for each outrigger.
▪
Select to enable or to disable generator.
▪
Indicates leveling system status:
▪
Off : The outriggers are fully retracted.
▪
Flashing Rapidly: The outriggers are extending but the platform
is not level.
▪
Flashing: The outriggers are extended but the platform is not yet
level.
▪
Solid: The outriggers are extended and the platform is level.
2
Automatic outrigger control console
▪
Select to retract all outriggers or to extend all outriggers with
automatic leveling.
▪
Select to enable manual or automatic outrigger controls.
8.12 Outrigger and generator control console
(optional equipment)
2
1
