SJ6826 RT, SJ6832 RT
221587ABA

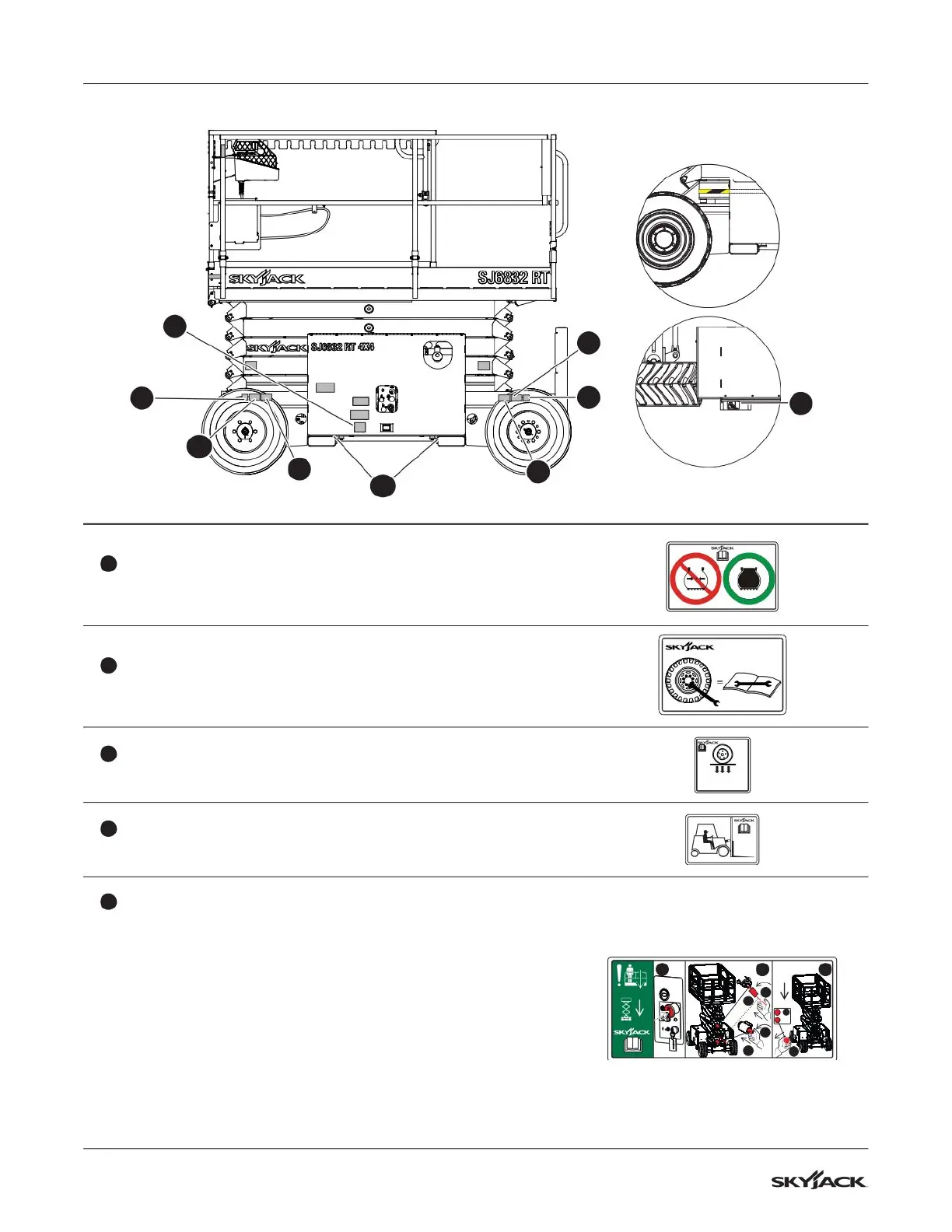

Section 8 – Labels Left side
Left side (continued)
Description Label Pictorial
8
Foam filled tire
Indicates foam filled tire.
TM
PSI BAR
9
Wheel specifications
Refer to manual for wheel type, offset, pressure and torque.
TM
10
Wheel load
Indicates rated wheel load.
TM
kg
( lb)
11
Forklift lift location
Insert fork fully into forklift lift location to lift the MEWP.
TM
12
Emergency-lowering procedure
Refer to the operation manual.
1. Turn Main power disconnect switch to off position.
2. To open the lift cylinder holding valves located at the bottom of
each cylinder:
if higher reach required, use emergency-lowering rod located
on the top of the base to:
a. push
b. turn knurled knob counterclockwise.
3. To lower the platform, pull out emergency-lowering valve
located on the outside of the hydraulic tray.
2
3
TM
1
C
A
B
C
D
Top view
11
12
11
10
9
8
10
9
8
10
9
