SMA Solar Technology AG 3 Scope of Delivery

Installation Manual ClusterController-IA-en-10 11

3 Scope of Delivery

Check the scope of delivery for completeness and any externally visible damage. Contact your

specialist dealer if the delivery is incomplete or damaged.

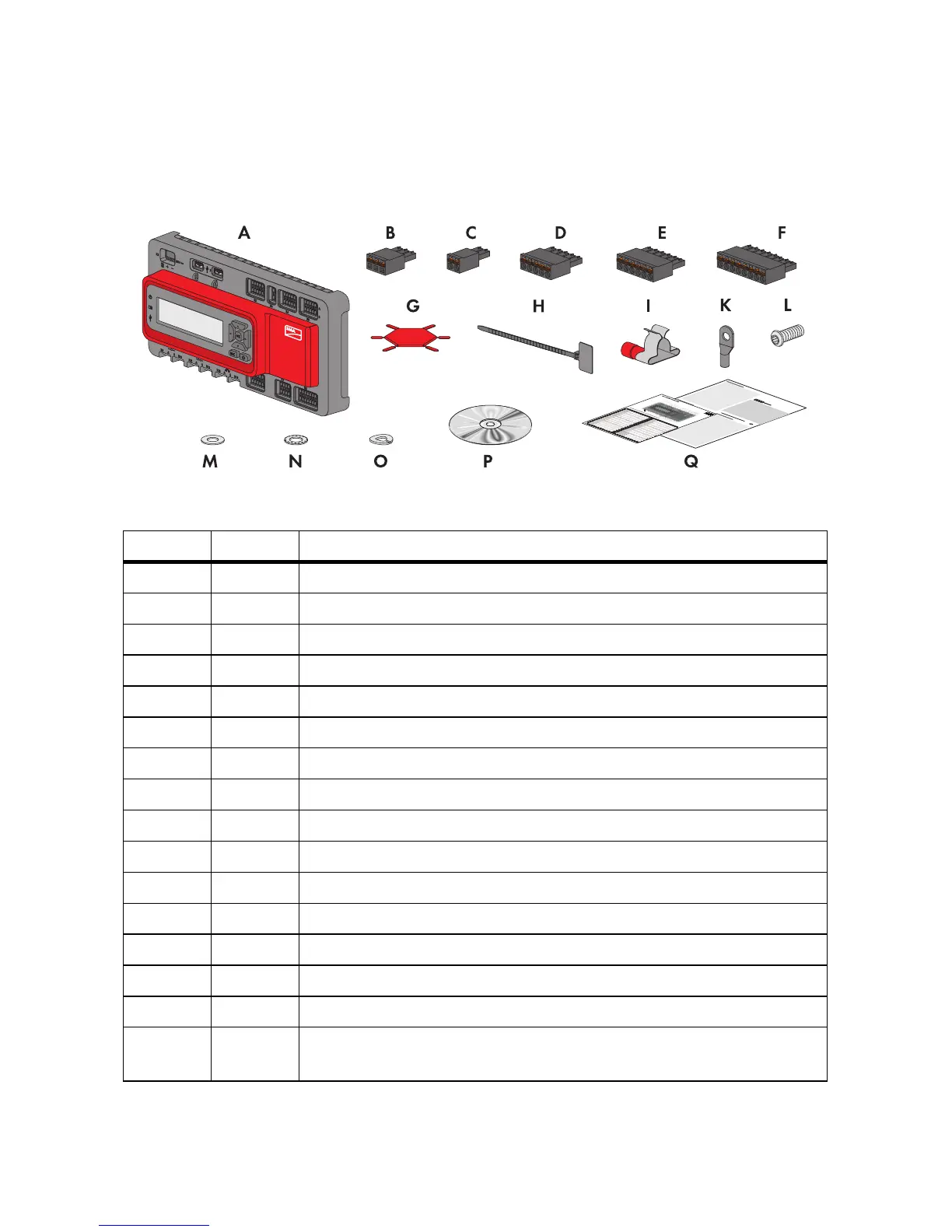

Figure1: Components included in scope of delivery

Item Quantity Designation

A1Cluster Controller

B 1 Three-pole plug

C 1 Two-pole plug*

* Reserved for future applications. Keep the plug in a safe place.

D2Five-pole plug

E 8 Six-pole plug**

** Two of the eight plugs are reserved for future applications. Keep the two plugs in a safe place.

F 2 Eight-pole plug

G2 Coding element

H 20 Cable ties with caption field

I 8 Shield clamp with ring terminal lug

K 1 Ring terminal lug

L 1 Fastening screw

M2 Washer

N 1 Tooth lock washer

O1 Split lock washer

P 1 CD with installation manual and user manuals

Q 1 Quick reference guide for commissioning and supplementary sheet for

noting connected devices
