SMA Solar Technology AG 5 Assembly

Installation Manual ClusterController-IA-en-10 23

5.2 Mounting the Cluster Controller

Requirements:

☐ A top-hat rail must be available.

☐ The top-hat rail must be 35 mm wide.

☐ To mount the Cluster Controller, the top-hat rail must be at least 26 cm long.

☐ To mount the top-hat rail power supply unit, the top-hat rail must be correspondingly longer.

☐ The top-hat rail must be securely mounted on the wall or in the switch cabinet.

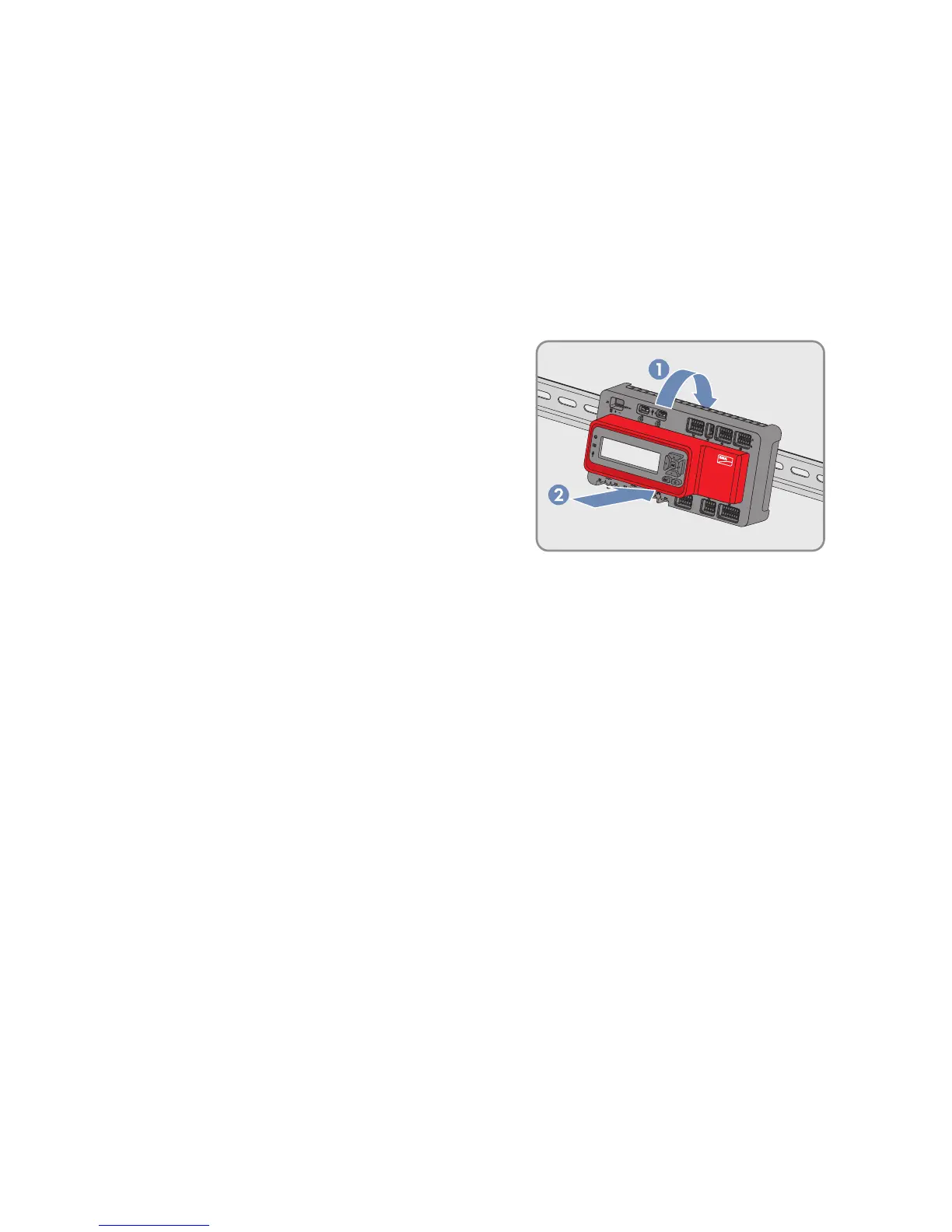

• Use the rear-side upper retainers to hook the

Cluster Controller into upper edge of the top-hat

rail and press down in the direction of the top-hat

rail. This will hook the spring-mounted top-hat rail

locking mechanism of the Cluster Controller onto

the lower edge of the top-hat rail.

☑ The top-hat rail locking mechanism audibly

snaps into place.
