6 Connection SMA Solar Technology AG
30 ClusterController-IA-en-10 Installation Manual
6.5 Preparing Connection Cables for Connection to a Multipole
Plug
Always proceed as follows to prepare connection cables for connection to multipole plugs.
1. Strip 4 cm of cable sheath off the connection cable to which the multipole plug is to be attached.
2. Perform the following additional steps for the connection cables for the analogue inputs, the
analogue outputs and the temperature inputs:
• Trim the cable shield of the connection cable to 15 mm.

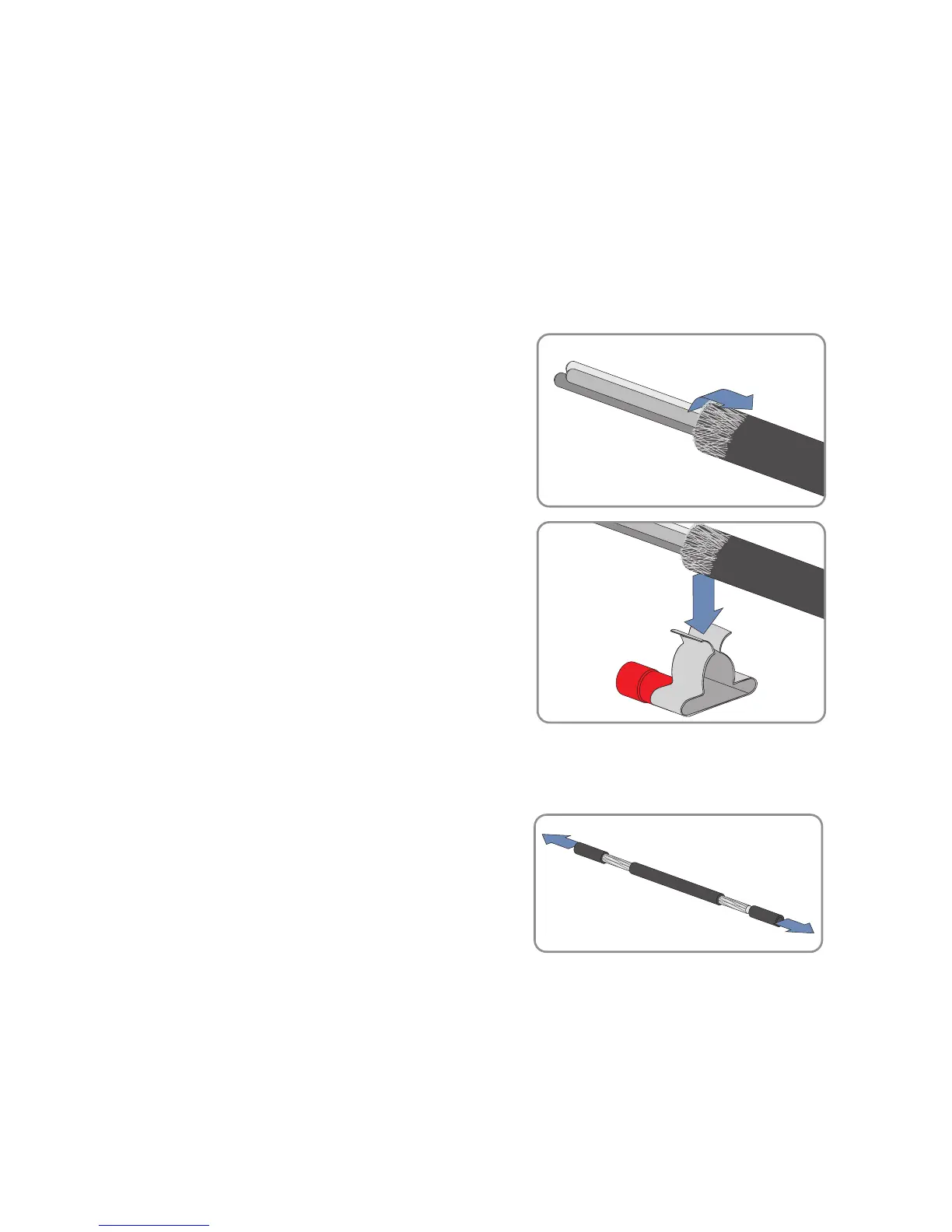

• Fold the surplus cable shield back onto the
cable sleeve.
• Press the shield clamp onto the cable shield. For
this purpose, the cable shield must be clamped
as fully as possible under the shield connection
terminal.
• Depending on the number of connection cables, split the single core required for the
shielding into pieces of a length of 4 cm.
• At both ends of the single core, remove 6 mm of
cable sheath and strip 6 mm insulation off the
wire.
