5 Assembly SMA Solar Technology AG

22 ClusterController-IA-en-10 Installation Manual

Observe minimum clearances:

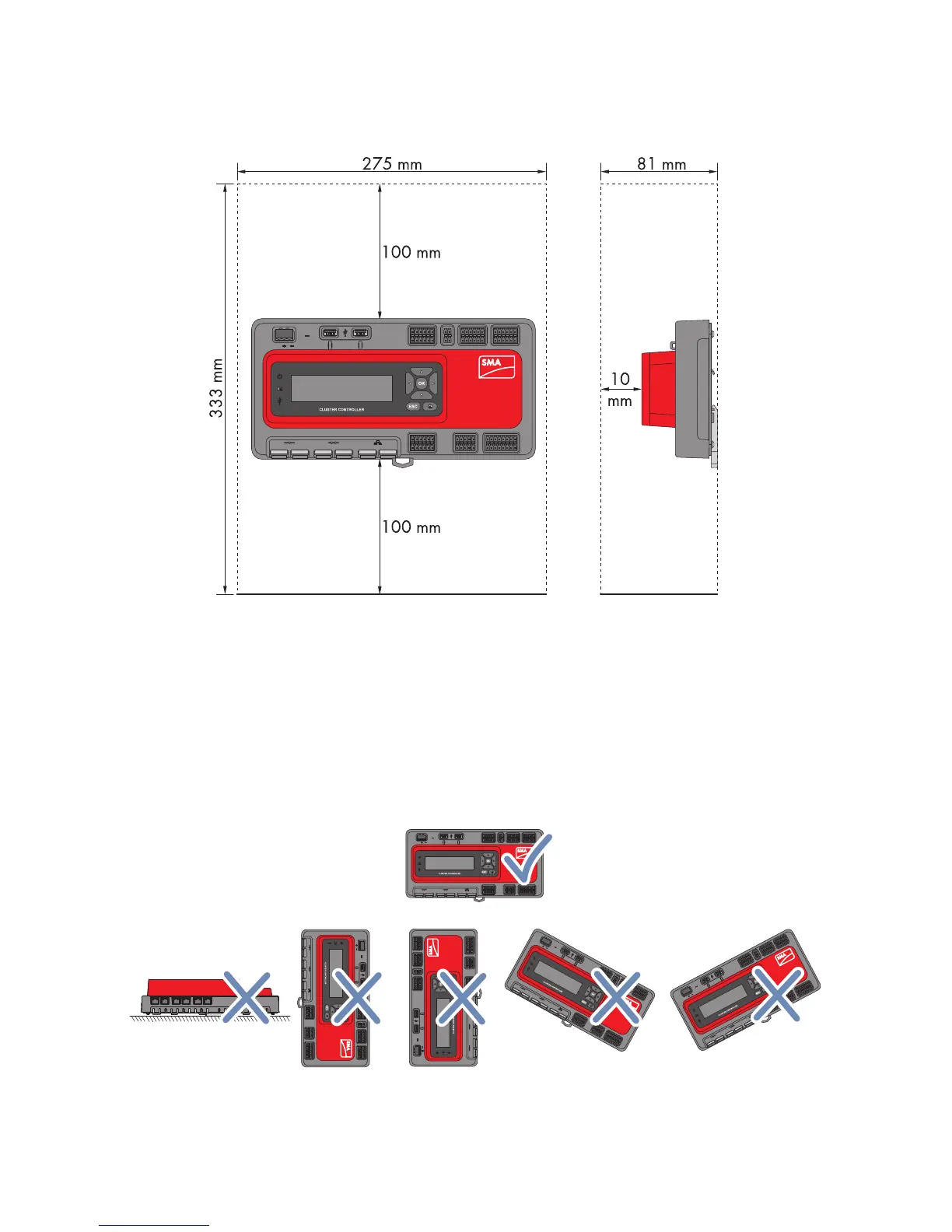

Figure7: Minimum clearances

• Maintain the minimum clearance to walls and other devices or objects.

Observe permitted mounting position:

• Mount the Cluster Controller in such way, that the ventilation slots face the top and the bottom.

This ensures adequate ventilation and avoids overheating of the Cluster Controller.

Figure8: Permitted and prohibited mounting positions
