SMARTBoard 6000S (C) and 6000S connector panel

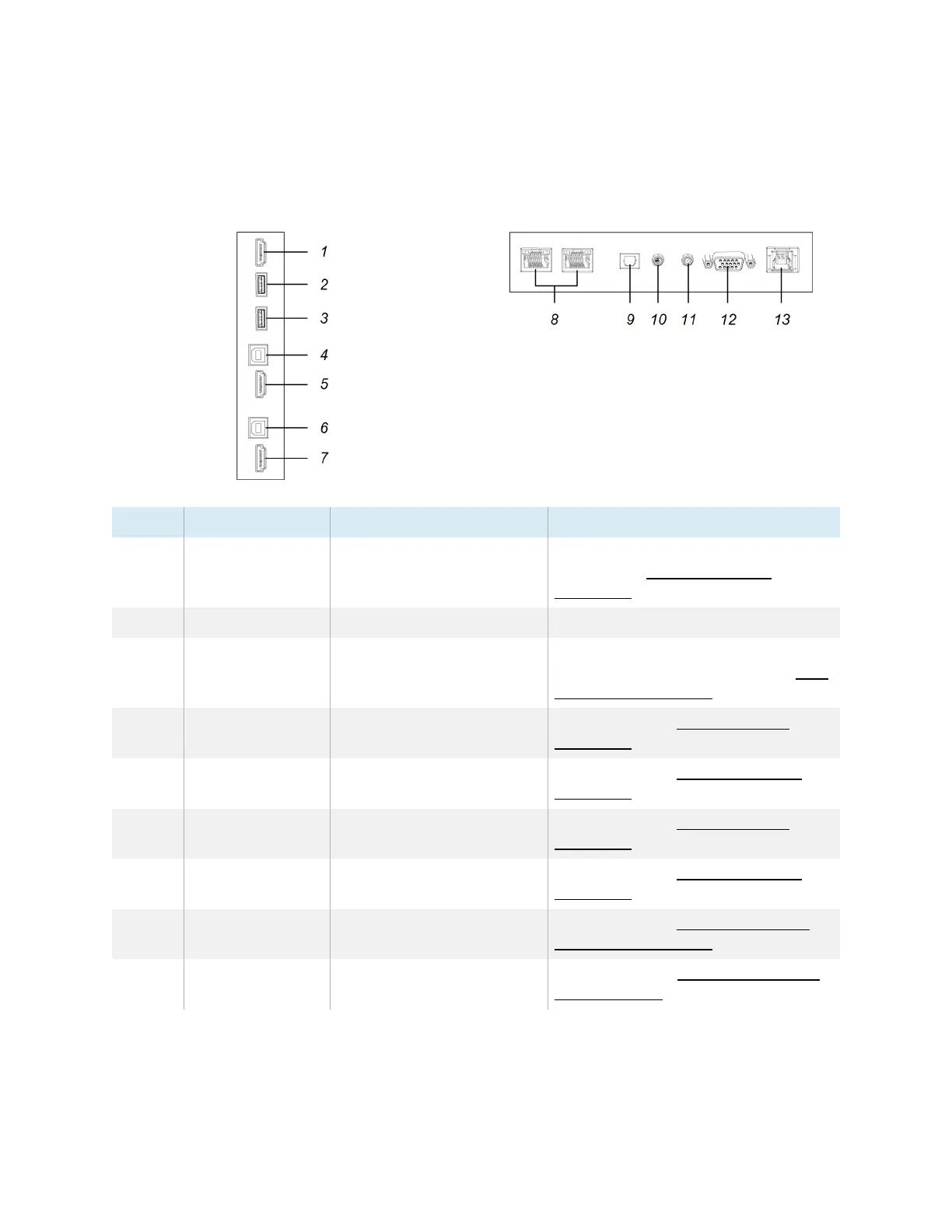

The following diagram and table present the connectors on the display’s connector panel:
Side Bottom
No. Connector Connects to Notes
1 HDMI 2.0 out External display See Connecting an external display on
page37 and HDMI cables and
connectors.
2 USB 2.0 Type-A [N/A] This connector is a service port.
3 USB 3.0 Type-A Supported USB drives,
peripherals, and other
devices
See Connecting USB drives, peripherals,
and other devices on page37 and USB
cables and connectors.
4 USB 3.0 Type-B HDMI 1 input (touch) See page33 and USB cables and
connectors.
5 HDMI 2.0 in HDMI 1 input
(videoandaudio)
See page33 and HDMI cables and
connectors.
6 USB 3.0 Type-B HDMI 2 input (touch) See page33 and USB cables and
connectors.
7 HDMI 2.0 in HDMI 2 input
(videoandaudio)
See page33 and HDMI cables and
connectors.
8 RJ45 (×2) Network See page28 and Ethernet (network)
cables and connectors.
9 S/PDIF out Digital audio output See page38 and Digital audio cables
and connectors.
