SMART Board 6000S Series Installation And Maintenance Guide

Chapter 3 Connecting computers and other devices
smarttech.com/kb/171414 40
Connector diagrams
SMART Board 6000S (V3) connector panel

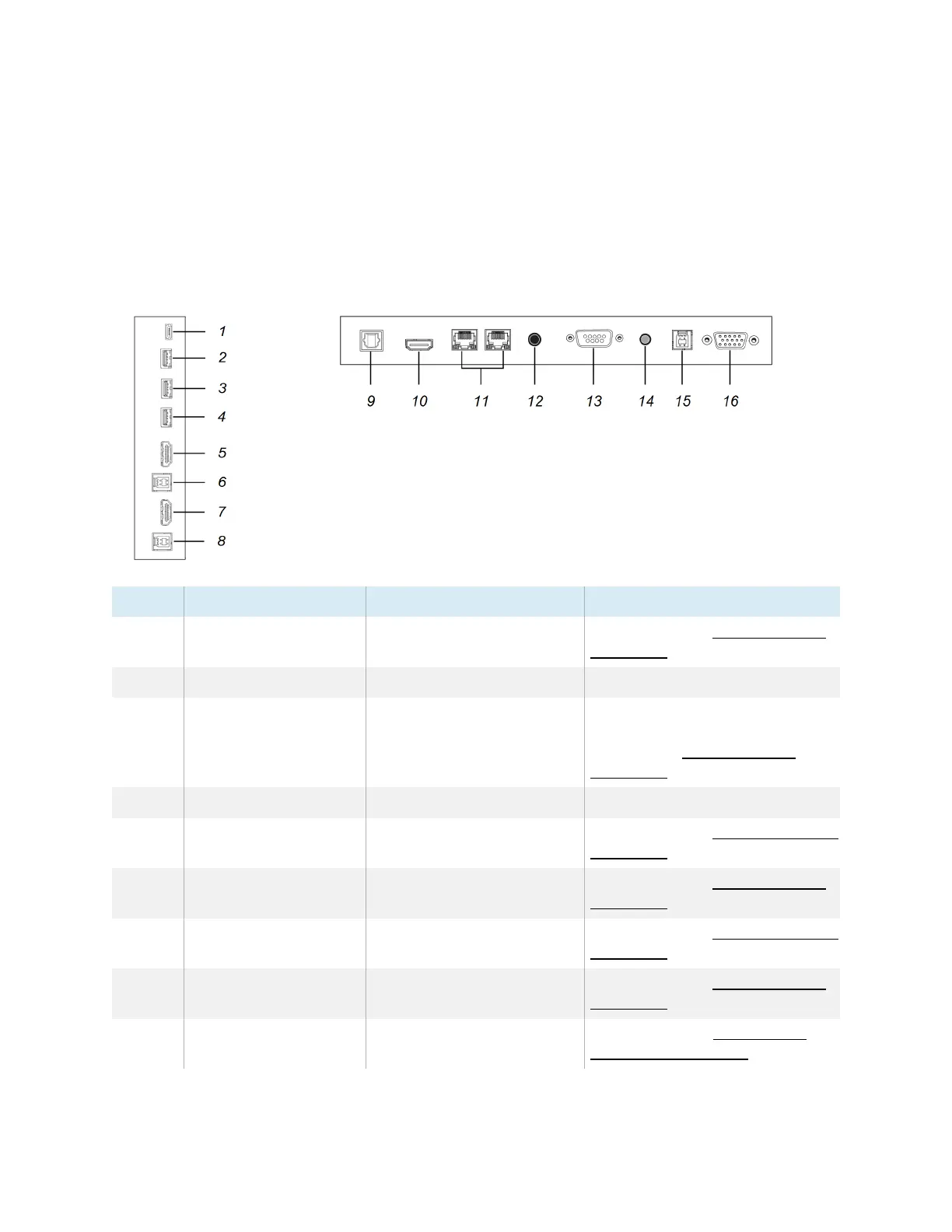

The following diagram and table present the connectors on the display’s connector panel:
Side

Bottom

No. Connector Connects to Notes
1 USB Type-C USB-C 2 input See page33 and USB cables and
connectors.
2 USB 3.0 Type-A [N/A] This connector is a service port (2).
3 USB 3.0 Type-A Supported USB drives,
peripherals, and other
devices
See Connecting USB drives,
peripherals, and other devices on
page37 and USB cables and
connectors.
4 USB 2.0 Type-A [N/A] This connector is a service port (1).
5 HDMI 2.0 in HDMI 1 input
(videoandaudio)
See page33 and HDMI cables and
connectors.
6 USB 3.0 Type-B HDMI 1 input (touch) See page33 and USB cables and
connectors.
7 HDMI 2.0 in HDMI 2 input
(videoandaudio)
See page33 and HDMI cables and
connectors.
8 USB 3.0 Type-B HDMI 2 input (touch) See page33 and USB cables and
connectors.
9 S/PDIF out Digital audio output See page38 and Digital audio
cables and connectors.
