SMART Board GX Series - Connecting Room Control Systems

Chapter 3
Connecting computers and other devices
smarttech.com/kb/171744 47

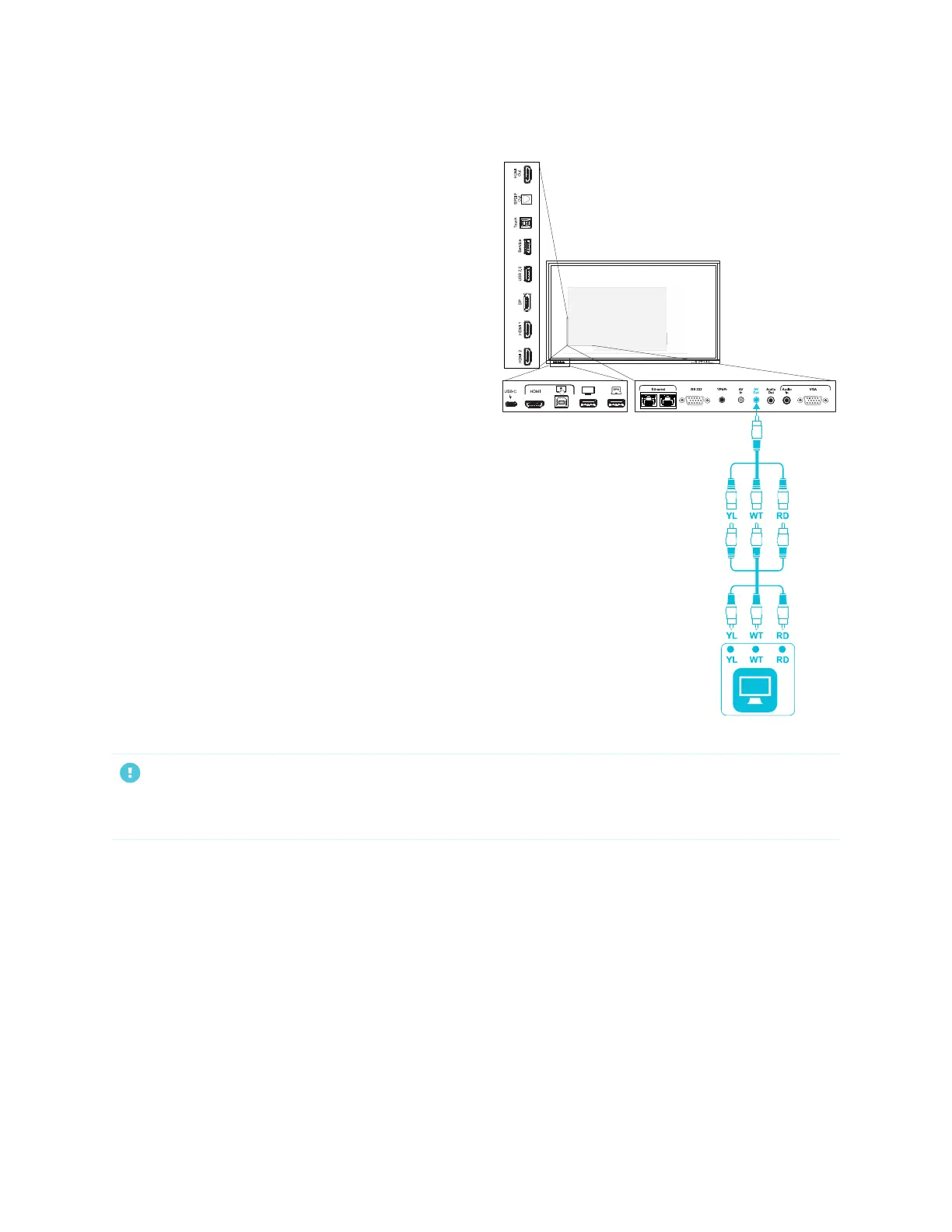

You can connect an external display using the
display’s analog video (AV out) connector. The
external display will show the same image as shown
on the display.
IMPORTANT
Use an AV to composite adapter with a 4-conductor 3.5 mm plug which is no longer than 12" (0.3 m) in
length.
Connecting room control systems
A room control system enables users to control a room’s lighting, audio system and, possibly, the display.
Some installations may require you to integrate the display with a room control system.
You can use the display’s RS-232 connector to connect a third-party external control system to the display
(see Appendix C: Managing the display using RS-232 on page87).
