SMC Networks HRR012-A*-20 Series User Manual

HRX-OM-W002-A
Chapter 5 Display and Setting of Various Functions
5.5 Advanced setting mode HRR Series
5-26

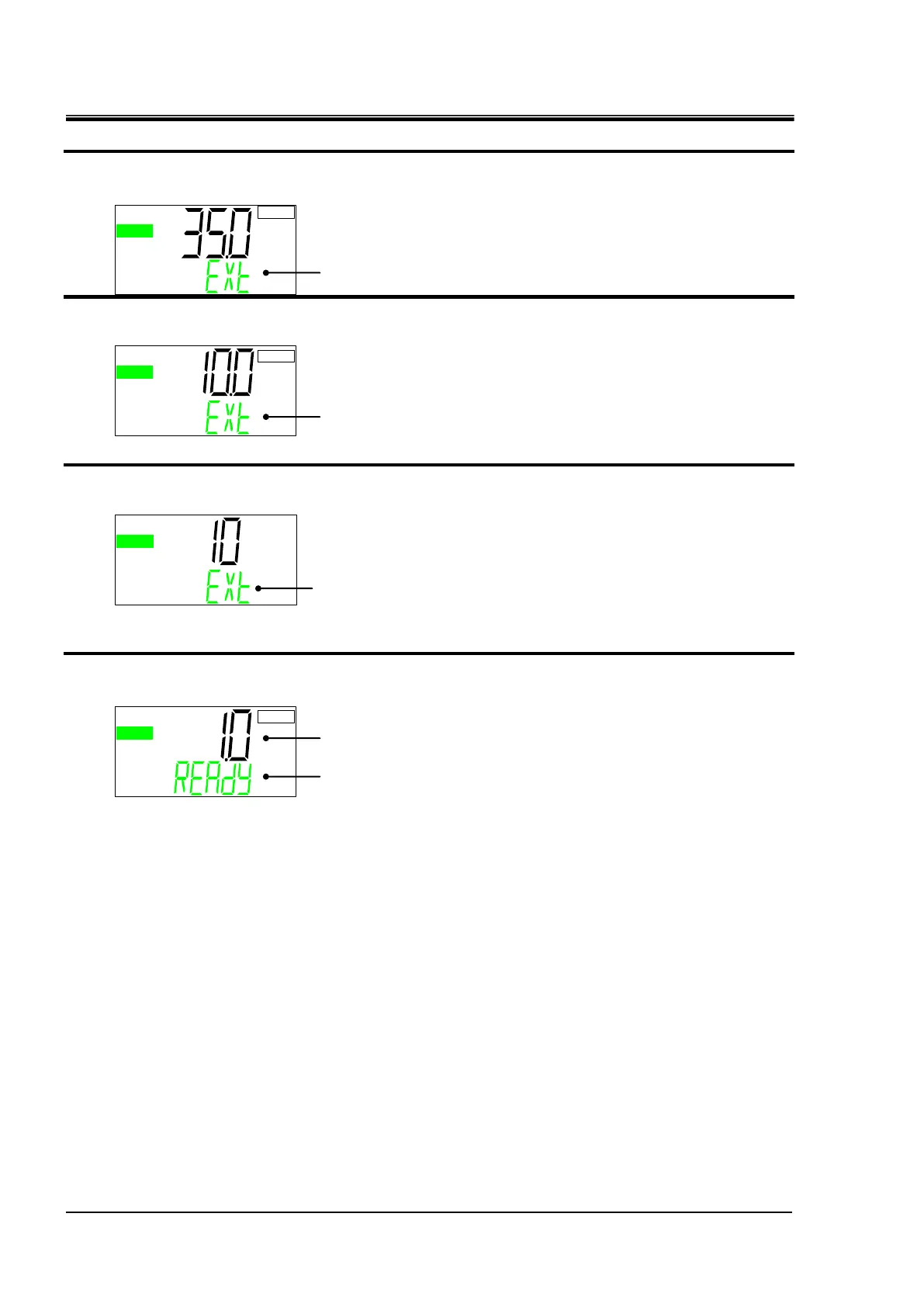

13. Press the [▼] key. Display as shown below. It is not used with this product
14. Press the [▼] key. Display as shown below. It is not used with this product
15. Press the [▼] key. Display as shown below. It is not used with this product
TEMP READY bandwidth upper limit
16. Press the [▼] key. Displays TEMP READY bandwidth upper limit setting screen.
 Signal for completion of preparation (TEMP READY)
This function sets the band width for the circulating fluid set temperature (upper/lower
temperature range) in order to notify the customer by communication that the circulating
fluid temperature has reached the band range (upper/lower temperature range).
Alarms can also be assigned.Similar functions include TEMP OUT signal and NOT
TEMP READY signal. Here is an example showing these relationships.
【TEMP READY function setting example】
[1] Circulating fluid temperature at start of operation: about 20 ° C
[2] Circulating fluid setting temperature: 15 ° C
[3] "TEMP READY Bandwidth (Upper Limit)": Set to "2.0 ° C".
[4] "TEMP READY Bandwidth (Lower Limit)": Set to "-2.0 ° C".
[5] "TEMP READY stabilization time": set to "60 sec".
[6] "TEMP READY monitoring start time": set to "30 sec".
[7] "Time when TEMP READY goes off": Set to "10 sec".
[8] "Switch TEMP READY alarm": Set to "WRN".
[9] "TEMP READY alarm output": set to "ON".
[10] "Temperature range upper limit alarm switching": set to "OFF".
RUN
Unused
RUN
℃
EXT ⇒ HITMP ⇒ LIMIT(Alternately displayed)
RUN
℃
EXT ⇒ LOTMP ⇒ LIMIT(Alternately displayed)
Unused
EXT ⇒ TIME(Alternately displayed)
RUN
℃
READY ⇒ HBAND(Alternately displayed)
READY bandwidth upper limit (setting range ：0.1 to 9.9°C)
